パーツ
コンデンサ OrangeDrop / polypropylene film (low tanδ) 25) 0.018μF/1200V-DC Sprague type-715P(ポリプロピレン型) ￥330 NOS 31) 0.22μF/600V-DC Sprague type-715P(ポリプロピレン型) ￥290 NOS .......
高圧用ポリプロピレンコンデンサ
63) 0.01μF/630V-DC ERO-Roederstein ￥200 NOS 青色同軸
・type: ＭＫＰ１８３８ (トレランス ±5%)
10) 0.1μF/1000V-DC ERO-Roederstein ￥750 NOS 青色同軸
・type: ＭＫＰ１８４５ (トレランス ±10%)
89) 0.1μF/1000V-DC ERO-Roederstein ￥410 NOS 青色角型 (￥3500 for 10-pcs)
・低損失角 メタライズド ポリプロプレン
・type: ＭＫＰ１８４６−４１０１０Ｊ (トレランス ±5%)
・動作温度範囲 -55℃ 〜 ＋１００℃
・600V-AC-max, tanδ=300μrad
・寿命30万時間 故障率=5FIT(@40℃ 0.5x定格電圧)
・size: 15mm x 24.5mm x 31.5mm (リード 0.8mmφ x 6mm)
10) 0.68μF/400V-AC ERO ￥1600 NOS MKP1842 青色同軸
0) 0.05μF/1600V-DC SBE ￥- (5)
.......
26) 0.068μF/1500V-DC 松下 ECQW ￥500(40)
.......

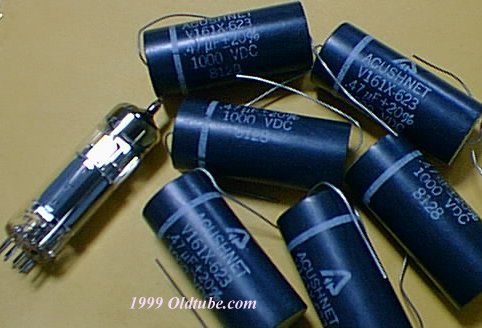

0) 0.47μF/1000V-DC ACSHUNET ￥- (5)
.......
40) 0.68μF/400V-AC YE-DS ￥300 NOS ライトブレー角型
13) 2.2μF/275V-AC European ￥400 NOS グレーー角型
0) 10μF/400V-DC Solen ￥- NOS FastCap
0) 22μF/400V-DC Solen ￥- NOS FastCap
メタライズドポリエステルフィルムコンデンサ 40) 0.047μF/400V-DC ERO ￥130 NOS Axial MKT1801 .......
25) 0.1μF/630V-DC Matsushita ￥130 NOS Radial
116) 0.22μF/400V-DC ￥100 NOS ニチコン 15mm x 10mm 茶色 基板用 (￥700 for 10-pcs)
0) 0.1μF/630V-DC NOS(10) ￥-
.......
オイルコンデンサ 8) 0.1μF/1000V-DC WesternElectric (made by CSC) used tested
オイルコンデンサ(缶入り) 7) 1μF/1000WV used?/NOS? ￥2000 .......
オイルコンデンサ(缶入り) 2) 10μF/600V-DC Sprague ￥９０００ NOS NonPCB 2) 10μF/1000V-DC Sprague ￥１２０００ NOS NonPCB
Paperコンデンサ 0) 8μF/150V Mallory type BB21 ￥600(4)
小型電解コンデンサ 73) 47μF/50WV ニチコン ￥80 105℃型 黒 ラジアル 25) 470μF/63WV マルコン ￥150 105℃型 黒 同軸 12) 2200μF/35WV Forever ￥300 105℃型 黒 ラジアル 24) 22μF/450WV ニチコン ￥400 105℃型 黒 ラジアル 6) 680μF/200WV ニチコン ￥600 105℃型 黒 基板用スナップイン 10) 820μF/200WV マルコン ￥600 105℃型 黒 基板用スナップイン 82) 10μF/350WV ニチコン ￥200 85℃型 群青 同軸 78) 33μF/350WV ニチコン ￥300 85℃型 群青 同軸 19) 100μF/350WV ニチコン ￥600 85℃型 群青 同軸 6) 33μF/450WV ニチコン ￥600 85℃型 群青 同軸 6) 82μF/450WV ニチコン ￥800 85℃型 群青 同軸 6) 100μF/450WV ニチコン ￥1100 85℃型 群青 同軸
大型電解コンデンサ (注: バンド無し) 3) 15,000μF/50WV ￥3,500
.......
4) 1,500μF/200WV ￥2,000
4) 1,600μF/200WV ￥2,000
.......
6) 2,000uF/200WV ￥1,200 基板用/3端子チューブラ型 Sprague POWERLYTIC
4) 3,000μF/250WV ￥2,700 62.5x143mm
6) 3,000μF/300WV used ￥2,700 62.5x143mm
.......
3) 4,000μF/200WV used ￥2,700 62.5x110mm
20) 50mmφ 電解コンデンサ用3足クランパ（バンド） アルミ製 ￥300 NOS
真空管ソケット 27) 7-pin MT Cinch 黒 NOS ￥200 (85) 0) 9-pin MT Cinch 黒 NOS ￥250 (50) .......

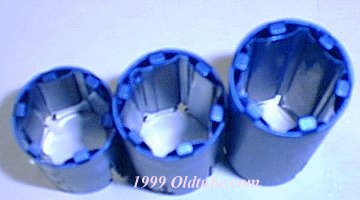

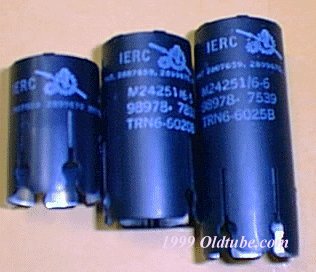

0) JAN-ラジエター付シールドキャップ 9pin用 ロング(IERC-TRN6-6025B)(6CL6/12BH7A) used ￥-
.......
8) JAN-ラジエター付シールドキャップ 9pin用 ロング (6FQ7.12BY7A,5763) (IERC-TRT6-6027B) used ￥- TopFullCircularEdge

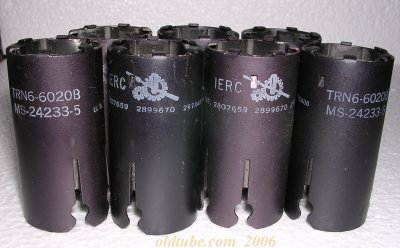

7) JAN-ラジエター付シールドキャップ 9pin用 ミディアム (12AX7, 6DJ8) (IERC-TRN6-6020B) NOS ￥- used
0) JAN-ラジエター付シールドキャップ 9pin用 ミドル(IERC-TRN6-6020B)(5687,12AX7) used ￥-

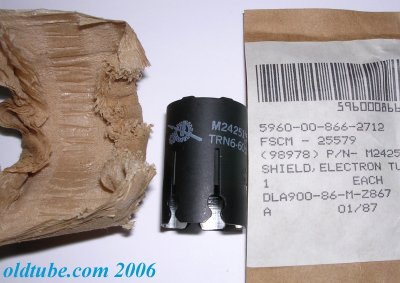

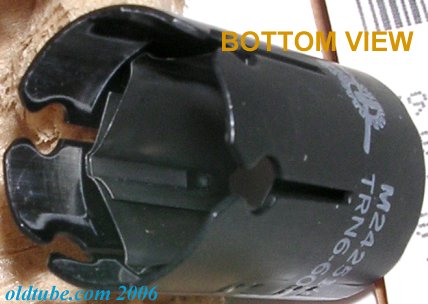

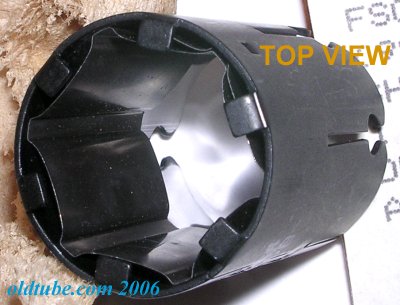

0) JAN-ラジエター付シールドキャップ 9pin用 ショート(IERC-TRN6-6015B)(WE-404A,417A,6386,6688) used ￥-
10) JAN-ラジエター付シールドキャップ 9pin用 ショート(WE-404A,6386,6688) (IERC-TRN6-6015B) BottomView TopView NOS ￥- sealed
1) 4-pin タイトメタルフランジ (小) ￥400 used 808, 45, 2A3
.......
2) 4-pin Johnson #210 ￥4,000 used ミディアム4-pinバヨネット 45 50 300B 801A 808 811A (中) .......
0) 4-pin Johnson #210 ￥5,000 新品 ミディアム4-pinバヨネット 45 50 300B 801A 808 811A (中) .......
0) 4-pin Johnson #210 ￥1,500 used
茶色ミディアム4-pinバヨネット 45 50 300B 801A 808 811A (中) 底に欠け有り/特性支障無し
.......
2) 4-pin Johnson ? ￥4,000 used
ミディアム4-pinバヨネット 45 50 300B 801A 808 811A (中)(#210よりタイト部分が大きい)
.......
5) 4-pin Johnson 123-#211 ￥5,100 usedLightly (11)
ジャンボ4-pinバヨネット VT-4-C 203A 805 810 838 845 (大)
.......
1) 4-pin Benton ￥5,100 used
Johnson-211/ジャンボ4-pinバヨネット類似 Black塗装セラミック VT-4-C 203A 805 810 838 845 (大)
.......
0) 4-pin Johnson 123-#211 ￥6,000 新品元箱(2)
ジャンボ4-pinバヨネット VT-4-C 203A 805 810 838 845 (大)
.......
0) 4-pin Johnson 123-#211 ￥6,000 新品元箱(2)
ジャンボ4-pinバヨネット VT-4-C 203A 805 810 838 845 (大)
1) 4-pin Thinタイト ￥3,000 新品
ジャンボ4-pinバヨネット VT-4-C 203A 805 810 838 845 (大)
.......
1) 4-pin Thinタイト ￥1,700 新品
ジャンボ4-pinバヨネット VT-4-C 203A 805 810 838 845 (大) ベースに"割れ"有り
.......
0) 4-pin タイト ￥- used Johnson #234 WE-705, WE-5D21
.......

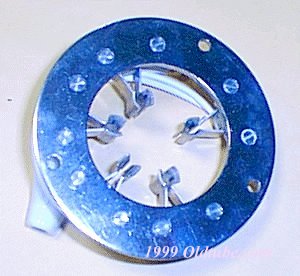

4) 4-pin タイト ￥5000 Johnson NOS type 234 for 5D21 etc
.......
10) 4-pin AD1 ￥２９００ NOS
4) 4-pin AD1 ￥２４００ used

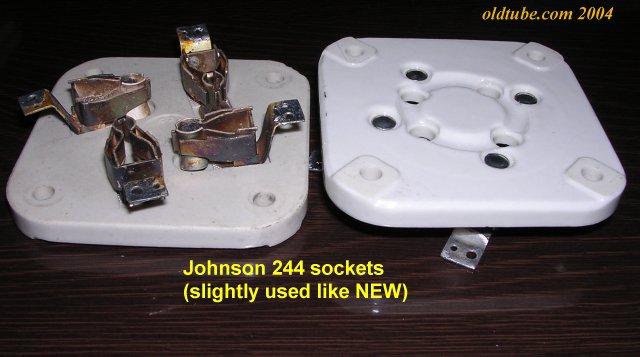

2) 4-pin Jumbo for Rectifier Johnson 244 ￥3000 SlightlyUsed
.......

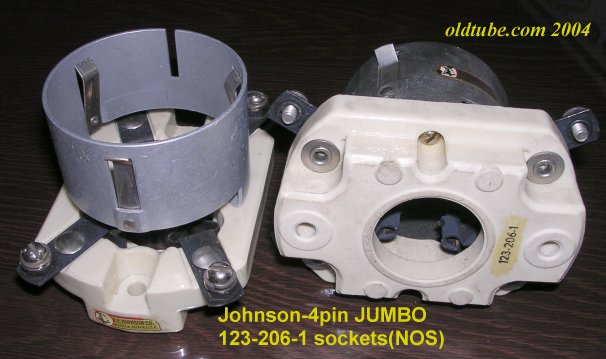

2) 4-pin Jumbo for Rectifier Johnson 123-206 ￥8,000 NOS
.......

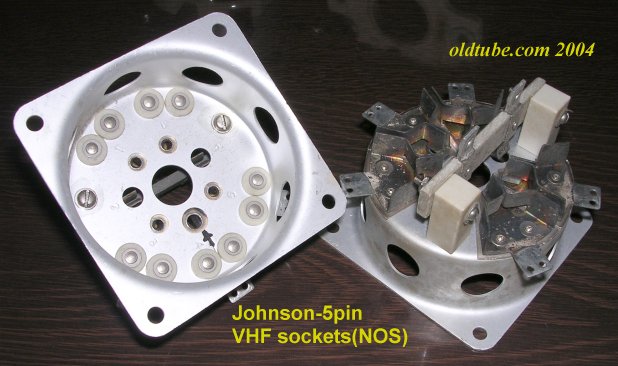

2) 5-pin VHF Johnson ￥8,000 NOS
.......
0) 5-pin メタルフランジ-タイト ￥7,000 used 4-250A
.......
1) 6-pin タイトウエーハー Johnson X-106 used ￥800
.......
2) 6-pin タイトウエーハー Johnson 226 used ￥800
2) 6-pin タイトウエーハー 米国National NOS ￥1,100
1) 7-pin Johnson #247 7094 used ￥3,900
.......
1) 7-pin Johnson #248 7094 NOS ￥3,900
.......

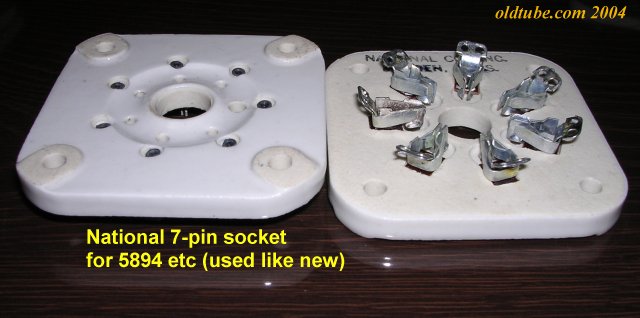

2) 7-pin for 5894 etc LightlyUsed ￥2200
.......
2) 7-pin RCA-UT-104 813 used ￥3,900
.......
0) 7-pin Septar Johnson #101 タイト used ￥3,700
.......

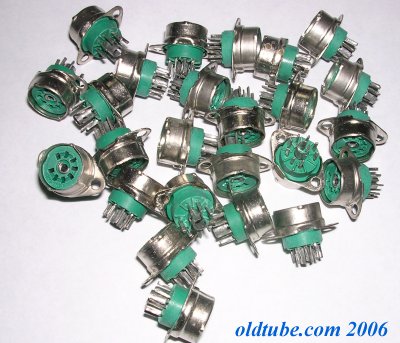

20) 8-pin Subminiature NOS ￥600
.......
1) 8-pin OCTAL タイト used ￥600
.......
3) 8-pin OCTAL タイト used ￥600
.......
8) 8-pin OCTAL モールド ￥300 NOS (10)
.......

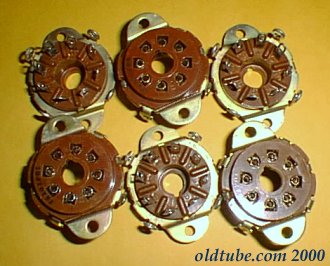

0) 8-pin OCTAL モールド EBY-made ￥600 NOS
.......
(20)
63) 8-pin OCTAL モールド Amphenol 1952/1957-JAN ￥800 NIB BrownMold+MetalFlange SealedBag(1個毎に密閉シール品) =rare= (103)

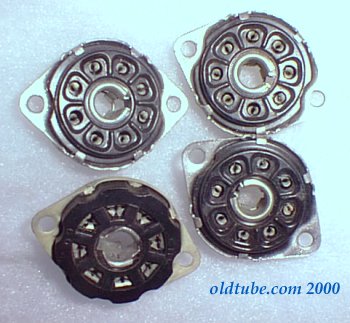

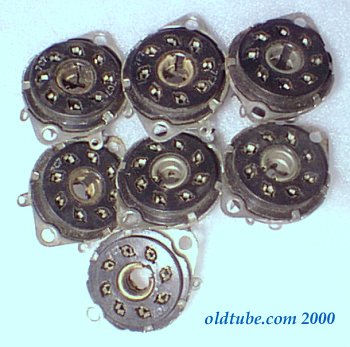

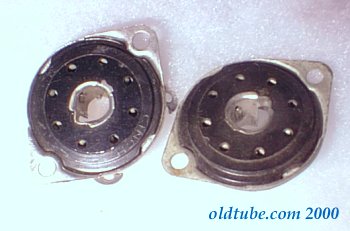

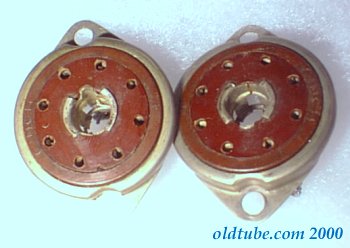

0) 8-pin ロクタル モールド ￥500 新品 (hyy1x4gg)

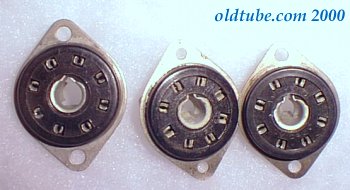

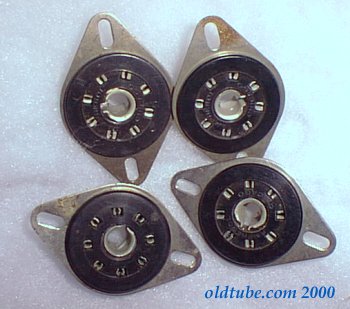

0) 8-pin ロクタル モールドType 1 Type 2 Type 3 Type 4 Type 6 ￥- 新品.......
0) 8-pin ロクタル モールド ￥500 used
.......
30) B9G = 9-pin ロクタル セラミック ￥1600 NOS for EL60 etc
0) アノード/プレートキャップ(大) 813 NOS ￥-
.......
0) アノード/プレートキャップ(大) 813 NOS ￥-
.......
0) アノード/プレートキャップ(大) 813 used ワイヤ付き ￥-
0) 7-pin MT ベークライトウエハー型 NOS ￥- (20)
10) 9-pin MT ベークライトウエハー型 NOS ￥120 (20)
JAN巻線抵抗 8:reserved) 800Ω/10W JAN NOS ￥200 sealed VeryHighQuality for 300B 6L6GC etc ============================================================================== 米国製カーボンコンポジット抵抗 =製造メーカ : USA Allen Bradley AB Stackpole TRW IRC Ohmite etc= .......

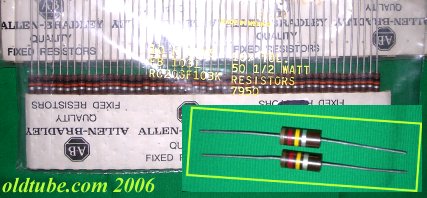

カーボンコンポジット抵抗は経年変化が大きく抵抗値は表示誤差を越えている場合があります。
（全てオールドストックで現行品ではありません。）
===========================================================
1/4W-TYPE NOS @￥-
在庫数) 抵抗値−電力値
5) 2.7 1/4W RC07
18) 4.7 1/4W RC07
39) 5.1 1/4W RC07
14) 5.6 1/4W RC07
14) 6.8 1/4W RC07
----------------------------------------------------------------
100) 10 1/4W RC07 AB RC07GF100J(50-pack 5%)
66) 10 1/4W RC07 AB 5%
11) 10 1/4W RC07 10%
150) 10 1/4W RC07 AB RC07GF100K 10%
14) 12 1/4W RC07
13) 15 1/4W RC07
7) 18 1/4W RC07
32) 18 1/4W RC07
50) 22 1/4W RC07 AB RCR07G220JS original 50-pack bag
5) 27 1/4W RC07
500) 27 1/4W RC07 AB
150) 33 1/4W RC07 AB RC07GF330J(50-pack 5%)
50) 47 1/4W RC07 AB RCR07G470JR original 50-pack bag
150) 56 1/4W RC07 AB RCR07C560JS(50-pack 5%)
20) 56 1/4W RC07 TRW (5% bulk)
2550) 56 1/4W RC07 AB RC07GF560K
0) 68 1/4W RC07 TRW (5% bulk)
0) 82 1/4W RC07 TRW (5% bulk)
----------------------------------------------------------------
50) 100 1/4W RC07 AB RCR07G101JR original 50-pack bag
50) 100 1/4W RC07 AB RC07GF101J(50-pack 5%)
747) 110 1/4W RC07 AB RCR07G111JS(50-pack 5%)
0) 120 1/4W RC07 AB RC07GF121J(50-pack 5%)
0) 150 1/4W RC07 AB RCR07G151JS(50-pack 5%)
120) 180 1/4W RC07
900) 180 1/4W RC07 AB RCR07G181JS
29) 180 1/4W RC07 AB RCR07G181JS
0) 220 1/4W RC07 AB RC07GF221J(50-pack 5%)
800) 240 1/4W RC07 AB RCR07G241JS
35) 240 1/4W RC07 AB RCR07G241JS(50-pack 5%)
100) 270 1/4W RC07 AB RC07GF271J(50-pack 5%)
950) 270 1/4W RC07 AB RC07GF271K(50-pack 10%)
17) 270 1/4W RC07 AB NOS 10% **
50) 390 1/4W RC07 AB
100) 390 1/4W RC07 AB RCR07G391JS(50-pack 5%)
100) 390 1/4W RC07 AB RC07GF391J(50-pack 5%)
236) 390 1/4W RC07 AB RC07GF391J(50x4+35 5%)
242) 470 1/4W RC07 AB RC07GF471J(50-pack 5%)
23) 470 1/4W RC07 AB RCR07G471JS(50-pack 5%)
12) 470 1/4W RC07 AB NOS 5% **
40) 470 1/4W RC07 AB NOS 10% **
190) 560 1/4W RC07 TRW 5% original-10-snappak
900) 560 1/4W RC07 AB
121) 560 1/4W RC07 AB NOS 5% **
230) 560 1/4W RC07 AB NOS 10% **
4) 620 1/4W RC07 AB
50) 620 1/4W RC07 AB
813) 680 1/4W RC07 AB RC07GF681K(50-pack 10%)
2) 680 1/4W RC07 AB NOS 5% **
0) 750 1/4W RC07 AB
460) 820 1/4W RC07 TRW 5% original-10-snappak
0) 910 1/4W RC07 AB RCR07C911JS(5%)
----------------------------------------------------------------
0) 1k 1/4W RC07 AB RC07GF102J(5%)
200) 1k 1/4W RC07 AB RCR07G102JS(5%)
23) 1k 1/4W RC07 AB RCR07G102JS(5%)
50) 1.2k 1/4W RC07 AB RC07GF122J(5%)
50) 1.2k 1/4W RC07 TRW 5%
115) 1.2k 1/4W RC07 TRW 5% bulk-paper-bag
74) 1.2k 1/4W RC07 AB RC07GF122K(10%)
271) 1.2k 1/4W RC07 AB RCR07G122JS(5%, 50-pack)
657) 1.5k 1/4W RC07 AB RCR07G152KS(10%, 50-pack)
340) 1.5k 1/4W RC07 AB RC07GF152K(10%)
19) 1.5k 1/4W RC07 AB RCR07G152JS(5%, 50-pack)
0) 1.5k 1/4W RC07 AB 5%
50) 1.8k 1/4W RC07 AB RCR07G182JS original 50-pack bag
100) 1.8k 1/4W RC07 AB RC07GF182J(50-pack 5%)
49) 1.8k 1/4W RC07 TRW 5% TRW-bulk-paper-bag
47) 1.8k 1/4W RC07 AB
550) 1.8k 1/4W RC07 AB RCR07G182JS(5%,50-pack)
85) 2k 1/4W RC07 AB RCR07G202JS(5% 50-pack)
50) 2k 1/4W RC07 Ohmite RC07GF202J(5% 50-pack)
0) 2.2k 1/4W RC07 AB 5%
50) 2.4k 1/4W RC07 AB RCR07G242JS 5% 50-pack
0) 2.7k 1/4W RC07 AB 5%
1250) 2.7k 1/4W RC07 AB RCR07G272JS 5% 50-pack
41) 2.7k 1/4W RC07 AB RCR07G272JS 5% 50-pack
50) 3.3k 1/4W RC07 AB
61) 3.3k 1/4W RC07 AB RCR07G332JS(5%,50-pack)
0) 4.7k 1/4W RC07 AB RCR07G472JS
2500) 4.7k 1/4W RC07 AB RCR07G472JS
1) 4.7k 1/4W RC07 AB NOS 10% **
350) 5.1k 1/4W RC07 AB RCR07G512JS
350) 5.1k 1/4W RC07 AB RCR07G512J
0) 5.1k 1/4W RC07 Ohmite RC07GF512J bulk
1000) 5.6k 1/4W RC07 AB
900) 5.6k 1/4W RC07 AB
192) 5.6k 1/4W RC07 AB RC07GF562J(50-pack 5%)
28) 5.6k 1/4W RC07 AB RCR07G562JS(50-pack 5%)
189) 5.6k 1/4W RC07 AB NOS 5% **
0) 6.2k 1/4W RC07 AB RC07GF622J(50-pack 5%)
200) 6.8k 1/4W RC07 AB RC07GF682J(50-pack 5%)
96) 6.8k 1/4W RC07 AB RCR07G682JS(50-pack 5%)
0) 7.5k 1/4W RC07 Ohmite RC07GF752J(100-pack 5%)
50) 8.2k 1/4W RC07 AB RCR07G822JS original 50-pack bag
129) 8.2k 1/4W RC07 AB RCR07G822JS(50-pack 5%)
0) 9.1k 1/4W RC07 AB RC07GF913J(5% 100-pack)
----------------------------------------------------------------
50) 10k 1/4W RC07 AB RCR07G103JR original 50-pack bag
0) 10k 1/4W RC07 Ohmite RC07GF103J(5% 100-pack)
100) 12k 1/4W RC07 Ohmite RC07GF123J(5% 100-pack)
82) 13k 1/4W RC07 AB RCR07G133JS(5% 50-pack)
350) 15k 1/4W RC07 AB RC07GF153J(50-pack 5%)
38) 15k 1/4W RC07 AB RCR07G153JS(50-pack 5%)
49) 18k 1/4W RC07 ?
50) 20k 1/4W RC07 AB RC07GF203J original 50-pack bag
200) 22k 1/4W RC07 AB RC07GF223J(50-pack 5%)
100) 22k 1/4W RC07 Ohmite RC07GF223J(5% 100-pack)
50) 24k 1/4W RC07 AB RC07GF243J original 50-pack bag
45) 24k 1/4W RC07 AB RCR07G243JS(50-pack 5%)
600) 27k 1/4W RC07 AB RC07GF273J(50-pack 5%)
298) 27k 1/4W RC07 AB RC07GF273J(50-pack 5%)
50) 33k 1/4W RC07 AB RC07GF333J(50-pack 5%)
74) 33k 1/4W RC07 AB RCR07G333JS(50-pack 5%)
6) 36k 1/4W RC07 AB NOS 5% **
100) 39k 1/4W RC07 AB RC07GF393J(50-pack 5%)
79) 39k 1/4W RC07 AB RCR07G393JS(50-pack 5%)
112) 39k 1/4W RC07 AB NOS 10% **
50) 47k 1/4W RC07 AB RCR07G473JS original 50-pack bag
30) 47k 1/4W RC07 AB RCR07G473JS(50-pack 5%)
60) 47k 1/4W RC07 TRW 5% original-10-snappak
84) 47k 1/4W RC07 Ohmite NOS **
450) 51k 1/4W RC07 AB RCR07G513JS
37) 51k 1/4W RC07 AB RCR07G513JS(50-pack 5%)
47) 56k 1/4W RC07 AB RCR07G563JS(50-pack 5%)
0) 62k 1/4W RC07 AB RCR07GF623J(5% 100-pack)
37) 68k 1/4W RC07 AB RCR07G683JS(50-pack 5%)
178) 68k 1/4W RC07 Ohmite RC07GF683J(5% 100-pack)
----------------------------------------------------------------
0) 100k 1/4W RC07 AB RC07GF104J(50-pack 5%)
9) 100k 1/4W RC07
143) 100k 1/4W RC07 AB RC07GF104K(50-pack 10%)
44) 100k 1/4W RC07 AB RC07G104JS(50-pack 5%)
4) 120k 1/4W RC07 AB NOS 10% **
0) 150k 1/4W RC07 AB RCR07C154JS
91) 150k 1/4W RC07 AB RCR07G154JS(50-pack 5%)
50) 200k 1/4W RC07 AB RC07GF204J original 50-pack bag
22) 200k 1/4W RC07 AB RCR07G204JS(50-pack 5%)
30) 220k 1/4W RC07 TRW 5% original-10-snappak
100) 330k 1/4W RC07 AB
50) 560k 1/4W RC07 Ohmite RC07GF564J(5% 50-pack)
0) 820k 1/4W RC07 AB RCR07G824JS(5% 50-pack)
9) 820k 1/4W RC07
40) 820k 1/4W RC07 RCR07G824JS(5%, 50-pack)
----------------------------------------------------------------
0) 1M 1/4W RC07 AB RCR07G105JS
8) 1M 1/4W RC07
205) 1M 1/4W RC07 AB RCR07G105JS
3) 1.2M 1/4W RC07
900) 1.5M 1/4W RC07 AB
1000) 1.8M 1/4W RC07 AB
3) 2.7M 1/4W RC07
18) 3.3M 1/4W RC07
26) 3.9M 1/4W RC07
18) 4.7M 1/4W RC07
18) 5.6M 1/4W RC07
22) 6.8M 1/4W RC07
----------------------------------------------------------------
13) 10M 1/4W RC07
100) 10M 1/4W RC07 AB RC07GF106J(50-pack 5%)
21) 15M 1/4W RC07
10) 22M 1/4W RC07
===========================================================
1/2W-TYPE NOS @￥-
在庫数) 抵抗値 電力値
200) 2.7 1/2W RCR20 AB NOS RCR20G2R7JS original 50-pack bags
----------------------------------------------------------------
200) 10 1/2W RCR20 AB NOS RCR20G100JS
12) 10 1/2W RC20 NOS 10%
24) 10 1/2W RC20 AB NOS RCR20G100JS(original 50pc-sheet)
15) 12 1/2W RC20 Ohmite NOS 5%
19) 18 1/2W RC20 Ohmite NOS 5%
0) 22 1/2W RC20 AB
18) 33 1/2W RC20 NOS 10%
100) 47 1/2W RC20 Ohmite NOS 1/2W 10%
1) 47 1/2W RC20 Ohmite NOS 5% **
100) 47 1/2W RC20 AB NOS RC20GF470J 5%-50pack
6) 56 1/2W RC20 Ohmite NOS **
3) 68 1/2W RC20 NOS 10%
50) 68 1/2W RC20 TRW NOS 5% 50-PAK box
50) 82 1/2W RC20 TRW NOS 5% 50-PAK box
1) 91 1/2W RC20 NOS 5% **
30) 91 1/2W RC20 Ohmite NOS 1/2W 5%
50) 91 1/2W RC20 TRW NOS 5% 50-PAK box
----------------------------------------------------------------
300) 100 1/2W RC20 AB NOS RC20GF101J 5%-50pack
600) 100 1/2W RC20 Ohmite NOS RC20GF101J 5%-50pack
2) 110 1/2W RC20 NOS 5%
50) 100 1/2W RC20 TRW NOS 5% 50-PAK box
50) 120 1/2W RC20 Ohmite NOS 10% RC20GF121K
750) 120 1/2W RC20 AB NOS RC20GF121K 10%-50pack
50) 120 1/2W RC20 TRW NOS 5% 50-PAK box
6) 130 1/2W RC20 Ohmite NOS 5% **
54) 130 1/2W
50) 150 1/2W RC20 AB
23) 150 1/2W RC20 NOS 5%
50) 150 1/2W RC20 AB NOS RC20GF151J(50-pack 5%)
50) 150 1/2W RC20 TRW NOS 5% 50-PAK box
1) 180 1/2W RC20 Ohmite NOS 10% **
2) 180 1/2W RC20 NOS 10%
47) 180 1/2W RC20 NOS 5% CUT-LEAD
75) 180 1/2W RC20 NOS 5%
50) 200 1/2W RCR20 AB NOS RCR20G201JS original 50-pack bag
50) 200 1/2W RC20 TRW NOS 5% 50-PAK box
50) 270 1/2W RC20 TRW NOS 5% 50-PAK box
100) 330 1/2W AB
193) 330 1/2W RC20 NOS 10%
1100) 330 1/2W RC20 AB NOS RC20GF331K 10%-50pack
50) 360 1/2W RC20 TRW NOS 5% 50-PAK box
100) 390 1/2W RC20GF391J AB NOS 5% 50-PAK plastic-bag
1) 390 1/2W RC20 Ohmite NOS 10% **
50) 390 1/2W RC20 Ohmite NOS 10% RC20GF391K
50) 390 1/2W RC20 TRW NOS 5% 50-PAK box
100) 430 1/2W AB
21) 470 1/2W RC20 AB NOS 5% **
17) 470 1/2W RC20 AB NOS 10% **
70) 470 1/2W RC20 TRW NOS 5% original-10-snappak
7) 510 1/2W RC20 AB NOS 5% **
50) 510 1/2W RC20 TRW NOS 5% 50-PAK box
1) 560 1/2W RC20 AB NOS 5% **
1) 560 1/2W RC20 AB NOS 10% **
334) 560 1/2W RC20 AB NOS RC20GF561KS 10%-50pack
10) 560 1/2W RC20 Ohmite NOS 10% RC20GF561K
50) 560 1/2W RC20 TRW NOS 5% 50-PAK box
1) 680 1/2W RC20 AB NOS 5% **
3) 680 1/2W RC20 AB NOS 10% **
----------------------------------------------------------------
300) 1k 1/2W RC20 AB NOS RC20GF102K 10%-50pack
41) 1k 1/2W RC20 NOS 5%
1) 1k 1/2W RC20 NOS 10%
500) 1k 1/2W RC20 NOS 10% RC20GF102K
7) 1.2k 1/2W RC20 NOS 10%
650) 1.2k 1/2W RC20 AB NOS RC20GF122K 10%-50pack
50) 1.3k 1/2W RC20 AB NOS
24) 1.5k 1/2W RC20 NOS 5%
100) 1.5k 1/2W RC20 TRW NOS JAN-RCR20G152JS 5% date=8146
50) 1.5k 1/2W AB RC20GF152K
42) 1.8k 1/2W RC20 NOS 5%
50) 2.7k 1/2W AB RC20GF272K
100) 2.7k 1/2W RC20 Ohmite NOS 10%
193) 3.3k 1/2W RC20 TRW NOS JAN-RCR20G332JS 5% date=7925
200) 3.6k 1/2W RC20 Ohmite NOS RC20GF362J 5%-50pack
50) 3.9k 1/2W RC20 TRW NOS 5%
50) 4.3k 1/2W RC20 TRW NOS 5%
1) 4.7k 1/2W RC20 ? NOS CarbonComposite(color-coded jacket) 5%
96) 4.7k 1/2W RC20 AB NOS RCR20G472JS(original 50pc-sheet)
50) 4.7k 1/2W RC20 AB NOS RCR20G472KS(original 50pc-sheet)
50) 5.1k 1/2W RC20 TRW NOS 5%
100) 5.6k 1/2W AB
23) 5.6k 1/2W AB RC20GF562K(original 25-pak)
50) 6.2k 1/2W RC20 TRW NOS 5%
10) 6.8k 1/2W RC20 Ohmite NOS 5% **
2) 6.8k 1/2W RC20 Ohmite NOS 5% **
44) 6.8k 1/2W RC20 Ohmite NOS 10% **
200) 6.8k 1/2W RC20 Ohmite NOS 5% RC20GF682J
50) 7.5k 1/2W RC20 TRW NOS 5%
24) 8.2k 1/2W RC20 NOS 10%
50) 8.2k 1/2W RC20 TRW NOS 5%
50) 9.1k 1/2W RC20 TRW NOS 5%
----------------------------------------------------------------
150) 10k 1/2W AB RC20GF103K
39) 10k 1/2W RC20 NOS 5%
1) 10k 1/2W RC20 NOS 10%
50) 10k 1/2W RC20 TRW NOS 5%
7) 12k 1/2W RC20 Ohmite NOS **
1) 12k 1/2W RC20 AB NOS **
543) 12k 1/2W RC20 AB NOS RC20GF123K 10%-50pack
50) 12k 1/2W RC20 TRW NOS 5% original-10-snappack
5) 13k 1/2W RC20 Ohmite NOS **
21) 13k 1/2W RC20 Ohmite NOS 5%
7) 15k 1/2W RC20 Ohmite NOS 10% **
5) 15k 1/2W RC20 Ohmite NOS 5% **
100) 15k 1/2W Stackpole ±10%
50) 16k 1/2W
1) 16k 1/2W RC20 Ohmite NOS 5% **
110) 18k 1/2W AB ±10%
22) 18k 1/2W RC20 Ohmite NOS 5% **
3) 18k 1/2W RC20 Ohmite NOS 10% **
87) 20k 1/2W RC20 IRC NOS
9) 22k 1/2W RC20 Ohmite NOS 10% **
9) 22k 1/2W RC20 NOS 10%
641) 22k 1/2W RC20 AB NOS RC20GF223K 10%-50pack
1) 24k 1/2W RC20 Ohmite NOS 5% **
100) 24k 1/2W Stackpole ±5%
1) 27k 1/2W RC20 Ohmite NOS 10% **
2) 30k 1/2W RC20 Ohmite NOS 5% **
38) 30k 1/2W RC20 Ohmite NOS 5% **
3) 33k 1/2W RC20 Ohmite NOS 10% **
12) 33k 1/2W RC20 Ohmite NOS 10% **
21) 33k 1/2W RC20 AB NOS 10% **
2) 36k 1/2W RC20 Ohmite NOS 5% **
5) 39k 1/2W RC20 Ohmite NOS 10% **
5) 39k 1/2W RC20 Ohmite NOS 5% **
1) 39k 1/2W RC20 NOS 10% **
14) 39k 1/2W RC20 CIR NOS 10% SLIM-LONG-TYPE
2) 43k 1/2W RC20 Ohmite NOS 5% **
37) 47k 1/2W AB RC20GF473K(bulk)
4) 47k 1/2W RC20 Ohmite NOS **
6) 47k 1/2W RC20 NOS 10%
62) 51k 1/2W RC20 Ohmite NOS 5% **
1) 51k 1/2W RC20 Ohmite NOS **
100) 56k 1/2W AB ±10%
98) 56k 1/2W RC20 Ohmite NOS **
155) 56k 1/2W RC20 IRC NOS
84) 68k 1/2W RC20 Ohmite NOS 5%,10% **
2) 75k 1/2W RC20 Ohmite NOS **
11) 82k 1/2W RC20 Ohmite NOS 10% **
10) 82k 1/2W RC20 Ohmite NOS 5% **
100) 91k 1/2W AB ±10%
2) 91k 1/2W RC20 Ohmite NOS 5% **
----------------------------------------------------------------
2) 100k 1/2W RC20 NOS 5%
300) 100k 1/2W RC20 AB NOS RC20GF104K 10%-50pack
50) 120k 1/2W RC20 TRW NOS JAN-RCR20G124JS 5% date=7925
19) 130k 1/2W RC20 Ohmite NOS 5% **
110) 150k 1/2W AB ±10%
1) 150k 1/2W RC20 Ohmite NOS 5% **
5) 150k 1/2W RC20 Ohmite NOS 5% **
55) 150k 1/2W RC20 Ohmite NOS 10% **
11) 150k 1/2W RC20 NOS 10%
4) 160k 1/2W RC20 Ohmite NOS 5% **
6) 160k 1/2W RC20 Ohmite NOS 10% **
4) 180k 1/2W RC20 NOS 5%
26) 180k 1/2W RC20 NOS 10%
2) 220k 1/2W RC20 Ohmite NOS 10% **
46) 220k 1/2W RC20 Ohmite NOS 10% **
27) 220k 1/2W RC20 AB NOS 10% **
29) 220k 1/2W RC20 Ohmite NOS 5% **
7) 220k 1/2W RC20 NOS 10%
1) 270k 1/2W RC20 AB NOS 5% **
81) 270k 1/2W RC20 Ohmite NOS 5% **
9) 270k 1/2W RC20 Ohmite NOS 10% **
15) 270k 1/2W RC20 NOS 10%
1) 300k 1/2W RC20 AB NOS 5% **
25) 300k 1/2W RC20 Ohmite NOS 5% **
1) 330k 1/2W RC20 AB NOS 5% **
94) 330k 1/2W RC20 Ohmite NOS 5% **
6) 330k 1/2W RC20 Ohmite NOS 10% **
9) 330k 1/2W RC20 NOS 10%
3) 360k 1/2W RC20 Ohmite NOS 5% **
142) 390k 1/2W RC20 Ohmite NOS 5%,10% **
1) 390k 1/2W RC20 Ohmite NOS 5% **
18) 390k 1/2W RC20 NOS 10%
23) 430k 1/2W RC20 Ohmite NOS 5% **
1) 430k 1/2W RC20 Ohmite NOS 5% **
2) 470k 1/2W RC20 Ohmite NOS 10% **
1) 470k 1/2W RC20 Ohmite NOS 5% **
19) 470k 1/2W RC20 NOS 10%
7) 510k 1/2W RC20 Ohmite NOS 5% **
2) 560k 1/2W RC20 Ohmite NOS 5% **
1) 560k 1/2W RC20 Ohmite NOS 10% **
1) 560k 1/2W RC20 NOS 10% **
26) 560k 1/2W RC20 NOS 10%
11) 620k 1/2W RC20 Ohmite NOS 10% **
11) 620k 1/2W RC20 Ohmite NOS 10% **
30) 680k 1/2W RC20 Ohmite NOS 10% **
3) 680k 1/2W RC20 Ohmite NOS 5% **
25) 680k 1/2W RC20 NOS 10%
4) 750k 1/2W RC20 Ohmite NOS 5% **
22) 820k 1/2W RC20 NOS 10%
----------------------------------------------------------------
21) 1M 1/2W RC20 NOS 10%
10) 1.2M 1/2W RC20 Ohmite 5% **
25) 1.2M 1/2W RC20 NOS 10%
4) 1.3M 1/2W RC20 Ohmite NOS 5% **
100) 1.5M 1/2W AB ±10%
8) 1.5M 1/2W RC20 Ohmite NOS 5% **
19) 1.5M 1/2W RC20 Ohmite NOS 5% **
25) 1.5M 1/2W RC20 NOS 10%
24) 1.8M 1/2W RC20 NOS 10%
13) 2.2M 1/2W RC20 Ohmite NOS 10% **
14) 2.2M 1/2W RC20 Ohmite 10% **
10) 2.2M 1/2W RC20 NOS NOS 10%
24) 2.7M 1/2W RC20 NOS 10%
11) 3.3M 1/2W RC20 NOS 10%
2) 3.6M 1/2W RC20 Ohmite NOS 5% **
24) 3.9M 1/2W RC20 NOS 10%
3) 4.3M 1/2W RC20 Ohmite NOS 5% **
19) 4.7M 1/2W RC20 NOS 10%
24) 5.6M 1/2W RC20 NOS 10%
4) 6.2M 1/2W RC20 Ohmite NOS 5% **
2) 6.8M 1/2W RC20 Ohmite NOS 10% **
21) 6.8M 1/2W RC20 NOS 10%
----------------------------------------------------------------
7) 10M 1/2W RC20 NOS 10%
20) 15M 1/2W RC20 NOS 10%
8) 22M 1/2W RC20 NOS 10%
200) 22M 1/2W RC20 Ohmite NOS RC20GF226J 5%-50pack
===========================================================
1W-TYPE NOS @￥-
在庫数) 抵抗値−電力値
50) 2 1W
10) 2.7 1W AB
52) 3.3 1W
200) 5.1 1W RC32 AB RC32GF5R1J
62) 5.1 1W AB
10) 9.1 1W
25) 10 1W AB 5%
10) 13 1W AB
10) 15 1W AB
11) 20 1W
11) 22 1W AB
25) 27 1W AB 5%
20) 36 1W AB
10) 47 1W AB
10) 51 1W
0) 68 1W
0) 82 1W
0) 91 1W
----------------------------------------------------------------
50) 100 1W
49) 110 1W
50) 120 1W
3) 120 1W RC32 Ohmite 5% **
42) 120 1W RC32 Ohmite 10% **
12) 130 1W
2) 130 1W RC32 Ohmite 5% **
83) 150 1W RC32 AB 5%-BULK
15) 150 1W AB
11) 160 1W
11) 180 1W AB
12) 180 1W RC32 5%
50) 200 1W
10) 200 1W
10) 220 1W
50) 270 1W
9) 270 1W AB
9) 270 1W AB
10) 300 1W AB
11) 330 1W AB
100) 330 1W RC32 AB RCR32G331JS
10) 390 1W AB
11) 390 1W
11) 430 1W AB
1) 510 1W RC32 AB 5% **
6) 560 1W RC32 AB 10% **
20) 560 1W AB
50) 560 1W
54) 620 1W AB ハンダ付跡あり リード2cm RC32G621JS
8) 680 1W AB
25) 680 1W AB 5%
6) 680 1W RC32 Ohmite 10% **
11) 820 1W AB
25) 820 1W AB RC32GF821K(original 25-pak)
25) 910 1W AB RC32GF911J
----------------------------------------------------------------
51) 1k 1W AB
50) 1k 1W
250) 1k 1W RCR32 AB RCR32G102KS
100) 1.2k 1W AB RC32GF122K 25-pack
50) 1.2k 1W TRW
25) 1.5k 1W AB
5) 1.5k 1W
25) 1.5k 1W RC32 AB RCR32G152JS
11) 1.8k 1W
21) 2k 1W
12) 2.2k 1W AB
100) 2.7k 1W AB RC32GF272K(original 25-pak)
100) 3.3k 1W AB RC32GF332K 25-pack
50) 3.3k 1W
25) 3.3k 1W AB 10%
20) 3.6k 1W AB
25) 3.9k 1W AB RC32GF392K(original 25-pak)
21) 3.9k 1W AB
9) 3.9k 1W
100) 4.7k 1W RC32 Ohmite 1W 10%
11) 5.6k 1W RC32 Ohmite 10% **
10) 5.6k 1W AB
0) 5.6k 1W TRW old
50) 6.2k 1W
6) 6.8k 1W RC32 Ohmite 5% **
1) 6.8k 1W RC32 Ohmite 10% **
1) 7.5k 1W RC32 Ohmite 5% **
1) 8.2k 1W RC32 Ohmite 5% **
4) 8.2k 1W RC32 Ohmite 5% **
0) 8.2k 1W AB
7) 9.1k 1W RC32 Ohmite 5% **
0) 9.1k 1W
----------------------------------------------------------------
0) 10k 1W Ohmite bulk
375) 10k 1W RC32 AB 5%-25pack
22) 12k 1W RC32 Ohmite **
137) 12k 1W AB
50) 12k 1W
5) 13k 1W RC32 Ohmite **
2) 15k 1W RC32 Ohmite 10% **
40) 18k 1W RC32 Ohmite 5% **
5) 18k 1W RC32 Ohmite 10% **
0) 18k 1W IRC
1) 27k 1W RC32 Ohmite 5% **
1) 27k 1W RC32 Ohmite 10% **
3) 27k 1W RC32 Ohmite 10% **
2) 33k 1W RC32 Ohmite 10% **
0) 33k 1W TRW
0) 33k 1W AB RCR32C333JS 5%
50) 39k 1W
1) 39k 1W RC32 Ohmite 5% **
20) 43k 1W AB
50) 47k 1W
15) 51k 1W RC32 Ohmite 5% **
20) 56k 1W RC32 Ohmite **
63) 62k 1W AB
52) 68k 1W
25) 68k 1W RC32 Ohmite **
6) 75k 1W RC32 Ohmite **
9) 82k 1W RC32 Ohmite 5% **
0) 82k 1W AB 5%
2) 91k 1W RC32 Ohmite 5% **
----------------------------------------------------------------
0) 100k 1W AB 5%
1) 100k 1W RC32 Ohmite 10% **
17) 100k 1W RC32 Ohmite 10% **
3) 120k 1W RC32 Ohmite 10% **
7) 120k 1W RC32 Ohmite 5% **
0) 120k 1W Ohmite RC32GF124J
10) 130k 1W RC32 Ohmite 5% **
7) 150k 1W RC32 CIR 10% SLIM-LONG-TYPE
24) 150k 1W RC32 Ohmite 5% **
3) 150k 1W RC32 Ohmite 10% **
25) 150k 1W AB 10%
1) 220k 1W RC32 Ohmite 5% **
14) 220k 1W RC32 Ohmite 10% **
1) 240k 1W RC32 Ohmite 5% **
2) 270k 1W RC32 Ohmite 10% **
50) 270k 1W
5) 300k 1W RC32 Ohmite 5% **
5) 330k 1W RC32 Ohmite 5% **
50) 330k 1W
2) 360k 1W RC32 Ohmite 5% **
2) 390k 1W RC32 Ohmite 5% **
9) 390k 1W RC32 Ohmite 5% **
1) 390k 1W RC32 Ohmite 10% **
1) 390k 1W RC32 Ohmite 10% **
2) 430k 1W RC32 Ohmite 5% **
8) 470k 1W RC32 Ohmite 10% **
9) 560k 1W RC32 Ohmite 10% **
1) 560k 1W RC32 Ohmite 5% **
10) 560k 1W RC32 Ohmite 10% **
1) 620k 1W RC32 Ohmite 5% **
3) 620k 1W RC32 Ohmite 10% **
2) 620k 1W RC32 Ohmite 5% **
4) 680k 1W RC32 Ohmite 10% **
1) 680k 1W RC32 Ohmite 5% **
25) 820k 1W AB 5%
----------------------------------------------------------------
25) 1M 1W Stackpole RC32GF105J
25) 1M 1W AB 10%
5) 1M 1W RC32 Ohmite 10% **
1) 1.1M 1W RC32 Ohmite 5% **
1) 1.2M 1W RC32 Ohmite 5% **
2) 1.2M 1W RC32 Ohmite 5% **
9) 1.2M 1W RC32 Ohmite 10% **
4) 1.2M 1W RC32 Ohmite 5% **
1) 1.2M 1W RC32 Ohmite 10% **
1) 1.5M 1W RC32 Ohmite 10% **
3) 1.8M 1W RC32 Ohmite 10% **
50) 1.8M 1W
1) 2.2M 1W RC32 Ohmite 10% **
1) 2.2M 1W RC32 Ohmite 10% **
1) 2.7M 1W RC32 Ohmite 5% **
3) 3.6M 1W RC32 Ohmite 5% **
1) 4.3M 1W RC32 Ohmite 5% **
48) 4.7M 1W
50) 5.1M 1W
2) 6.8M 1W RC32 Ohmite 10% **
1) 7.5M 1W RC32 Ohmite 5% **
50) 10M 1W
===========================================================
2W-TYPE NOS @￥-
在庫数) 抵抗値−電力値
5) 6.8 2W AB
----------------------------------------------------------------
29) 10 2W RC42 AB 10%-BULK
36) 10 2W RC42 AB 5%-BULK
25) 15 2W AB
10) 22 2W AB
5) 22 2W
13) 22 2W
119) 22 2W RC42 10%-BULK
43) 27 2W RC42 10%-BULK
31) 27 2W AB
25) 30 2W AB
5) 30 2W
5) 33 2W AB
4) 36 2W AB
20) 43 2W
1) 47 2W AB
25) 47 2W RC42 AB 10%-BULK
50) 47 2W RC42 AB 10%-25pack
12) 47 2W RC42 10%-BULK
60) 56 2W RC42 5%-BULK
17) 62 2W RC42 5%-BULK
4) 62 2W AB
1) 62 2W
2) 82 2W AB
110) 75 2W AB RC42GF750J 足は折り曲げあり
5) 91 2W
----------------------------------------------------------------
25) 100 2W(Stackpole)
10) 100 2W RC42 AB 5%-BULK
62) 100 2W RC42 AB 10%-BULK
11) 120 2W RC42 Ohmite 5% **
2) 120 2W AB
51) 130 2W RC42 Ohmite 5% **
5) 150 2W RC42 AB 10%-BULK
3) 150 2W RC42 5%-BULK
62) 150 2W AB RC43GF151K
4) 180 2W AB
4) 220 2W
26) 220 2W AB RCR42G221KS
5) 240 2W AB
25) 300 2W AB
6) 300 2W AB
9) 330 2W AB
45) 330 2W AB RC42GF301J
2) 330 2W
175) 330 2W RC42 AB 10%-BULK
13) 360 2W AB
10) 360 2W AB
1) 390 2W RC42 Ohmite 5% **
5) 430 2W AB
6) 430 2W
5) 470 2W AB
16) 470 2W
30) 510 2W AB
1) 510 2W
2) 510 2W RC42 AB 5% **
25) 560 2W AB
5) 620 2W AB
11) 620 2W
5) 680 2W AB
1) 750 2W AB
0) 820 2W AB 5%
5) 910 2W AB
----------------------------------------------------------------
114) 1k 2W AB
20) 1k 2W
56) 1k 2W RC42 AB 10% -BULK
5) 1.3k 2W AB
16) 1.3k 2W
68) 1.5k 2W AB
8) 1.6k 2W
5) 1.8k 2W AB
25) 1.8k 2W AB RC42GF182K(original 25-pak)
3) 1.8k 2W AB
3) 2.7k 2W AB
5) 2.7k 2W
11) 3k 2W
25) 3.3k 2W AB RC42GF332J
16) 3.6k 2W
5) 3.9k 2W AB
2) 4.3k 2W AB
5) 4.7k 2W AB
20) 4.7k 2W AB RCR42G472JS
17) 4.7k 2W
25) 5.1k 2W RC42 AB RCR42GF512J
5) 5.6k 2W AB
0) 5.6k 2W(TRW) old
10) 5.6k 2W
5) 6.8k 2W
1) 6.8k 2W RC42 Ohmite 10% **
8) 7.5k 2W RC42 Ohmite 5% **
25) 8.2k 2W AB RCR42G822KS
9) 8.2k 2W AB
13) 9.1k 2W RC42 Ohmite 5% **
1) 9.1k 2W RC42 Ohmite 5% **
----------------------------------------------------------------
0) 10k 2W AB RCR42G103KS 10%
16) 10k 2W
15) 12k 2W
19) 12k 2W RC42 Ohmite **
1) 12k 2W RC42 Ohmite 10% **
5) 12k 2W RC42 TRW
22) 13k 2W RC42 Ohmite 5% **
10) 15k 2W RC42 Ohmite 5% **
13) 15k 2W
18) 16k 2W
13) 18k 2W AB
6) 18k 2W RC42 Ohmite 10% **
5) 18k 2W RC42 TRW
6) 20k 2W RC42 Ohmite 5% **
11) 20k 2W
7) 22k 2W RC42 Ohmite 5% **
3) 22k 2W RC42 Ohmite 10% **
5) 22k 2W RC42 TRW
46) 22k 2W RC42 5%-BULK
7) 24k 2W RC42 Ohmite 5% **
1) 27k 2W RC42 Ohmite 10% **
17) 27k 2W RC42 Ohmite 10% **
0) 30k 2W Ohmite
0) 33k 2W Ohmite
2) 33k 2W RC42 Ohmite 10% **
4) 33k 2W RC42 Ohmite 10% **
6) 36k 2W
8) 39k 2W AB
3) 43k 2W AB
17) 43k 2W
7) 47k 2W
25) 47k 2W AB RCR42G473KS **
1) 47k 2W RC42 Ohmite **
5) 51k 2W RC42 TRW
3) 51k 2W AB
13) 56k 2W
4) 56k 2W RC42 Ohmite **
5) 56k 2W RC42 TRW
5) 75k 2W RC42 TRW
37) 82k 2W AB
----------------------------------------------------------------
2) 100k 2W AB
14) 100k 2W
7) 100k 2W RC42 Ohmite 10% **
50) 120k 2W AB
4) 130k 2W RC42 Ohmite 5% **
1) 150k 2W RC42 Ohmite 10%
6) 150k 2W
8) 160k 2W
2) 220k 2W RC42 Ohmite 10% **
1) 220k 2W RC42 Ohmite 5% **
10) 270k 2W
1) 390k 2W RC42 Ohmite 10% **
20) 430k 2W
2) 510k 2W AB
1) 510k 2W RC42 Ohmite 5% **
42) 620k 2W AB
25) 820k 2W AB
----------------------------------------------------------------
18) 1M 2W
12) 1M 2W RC42 AB 10%-BULK
2) 1M 2W RC42 Ohmite 5% **
14) 2M 2W
21) 2.2M 2W RC42 Ohmite 5% **
25) 2.7M 2W AB
8) 3.9M 2W
21) 5.1M 2W
----------------------------------------------------------------
13) 20M 2W
可変抵抗器 Rheostat, Potentiometer 3) 5ΩVR Clarostat 2W型 43C1-5 NIB ￥2400 LongShaft 巻線 3) 30ΩVR Clarostat 2W型 43C1-30 NIB ￥2400 LongShaft 巻線 3) 30kΩVR Clarostat 2W型 43C1-30K NIB ￥2400 LongShaft 巻線 2) 500ΩVR Ohmite 2W型 NIB ￥1700 ShortShaft=半固定 12) 500ΩVR Allen Bradley 2W型 RV4NAYSD501A NIB ￥2400 6) 1kΩVR Allen Bradley 2W型 RV4NAYSD102A NIB ￥2400 3) 20kΩVR Allen Bradley 2W型 RV4NAYSD203A NIB ￥2400 (xnQn) 1) 20kΩVR Allen Bradley 2W型 RV4NAYSD203A NOS ￥2400 WB 2) 25kΩVR Allen Bradley 2W型 RV4NAYSD253A NIB ￥2400 11) 100ΩVR Mallory 4W型 NOS ￥1700 巻線 5) 3kΩVR Mallory 4W型 NOS ￥2200 巻線 4) 10kΩVR Mallory 4W型 NOS ￥1700 巻線 11) 10ΩVR Mallory 5W型 VW10 NIB ￥1700 LongShaft 巻線 Compact 9) 20ΩVR Mallory 5W型 VW10 NIB ￥1700 LongShaft 巻線 Compact 14) 100ΩVR Mallory 5W型 LW100 NIB ￥1700 ShortShaft 巻線 Compact 4) 5ΩVR Rheostat Ohmite 12.5W型 model-E NIB ￥3300 4) 15ΩVR Rheostat Ohmite 25W型 model-H NIB ￥5900 2) 50ΩVR Rheostat Ohmite 50W型 model-J AllCeramic type NIB ￥7800 ２連VR 1-pair) 25kΩx2連が２個 Allen Bradley 2W型 7771940-22 Type-J NOS ￥5900/(1-pair=2個入PlasticBag) 1) 25kΩx2連 Ohmite 2W型 model-CCU2531 type=U-Linear/AB NIB ￥3900
ヒューズ 10-boxes) 6Aショートタイプ Cooper NOS ￥500/box プラスチック箱に5本入 GMC-6A型 BUSS-FUSE -BUSSMAN for Automotive protection-
ロータリースイッチ 3:reserved) 4回路10接点 NOS ￥7,000 JAN(米国軍用)-高信頼/密閉型 (4) 2:reserved) 2回路7接点 NOS ￥1500 2:reserved) 2回路21接点 NOS ￥3300 4枚CeramicPlates Russian-made NonShortingType .......
タイマー 0) H3YN-2 OMRON NIB ￥- ON/OFF対象=AC250V/5A 抵抗負荷
ダイオード 81) 1N4007G GI NOS ￥20 PIV=1000V, If=1A (10-pcs=￥150) 小信号トランジスタ 1) 2SA12(Ge-PNP) Hitachi 2) 2SA30(Ge-PNP) TEN 3) 2SA31(Ge-PNP) TEN 1) 2SA61(Ge-PNP) Matsushita 1) 2SA235(Ge-PNP/TO-1)(RCA-SK3006, Zenith #921-1B相当) Toshiba 1) 2SA471(Ge-PNP/TO-1)(RCA-SK3006, Zenith #921-1B相当) Hitachi 9) 2SA509 Y Toshiba 11) 2SA562 Toshiba NOS TO92 10) 2SA640 NEC NOS 5) 2SA661-Y Toshiba NOS TO92 0) 2SA726 NEC NOS 8) 2SA733 NEC NOS 31) 2SA798 NEC NOS dual 22) 2SA798 Mitsubishi NOS SIP-5 5) 2SA847 Mitsubishi NOS TO92 5) 2SA872 Hitachi NOS 5) 2SB716 Hitachi NOS 20) 2SC372 Toshiba NOS TO92 21) 2SC380A Toshiba NOS TO92 24) 2SC394 Toshiba NOS TO92 2) 2SC459 Hitachi NOS TO92 15) 2SC461 Hitachi NOS TO92 14) 2SC461 Hitachi NOS TO92 8) 2SC509 Toshiba NOS TO92 9) 2SC517 (franged-TO-5) Toshiba,Solitron NEW 5) 2SC536 Sanyo NOS TO92 12) 2SC684 Hitachi NOS TO92 13) 2SC710 Mitsubishi NOS TO92 3) 2SC711 Mitsubishi NOS TO92 1) 2SC717 Hitachi NOS TO92 12) 2SC717 Hitachi NOS TO92 6) 2SC732 Toshiba NOS TO92 11) 2SC733 Toshiba NOS TO92 20) 2SC734 Toshiba NOS TO92 23) 2SC735 Toshiba NOS TO92 11) 2SC778 (franged-TO-5) Solitron NEW 2) 2SC784 Toshiba NOS TO92 8) 2SC799 (franged-TO-5) NEC,Solitron NEW 2) 2SC799 (franged-TO-5) NEC,Solitron USED 10) 2SC839 NEC NOS TO92 6) 2SC900 NEC NOS TO92 6) 2SC923-E0Z NEC NOS TO92 6) 2SC933 Sanyo NOS TO92 10) 2SC1000 Toshiba NOS 6) 2SC1047 Matsushita NOS TO92 3) 2SC1161-O Toshiba NOS TO92 10) 2SC1222 NEC NOS 17) 2SC1239 (franged-TO-5) Mitsubishi,Solitron NEW 1) 2SC1239 (franged-TO-5) Mitsubishi USED 14) 2SC1318 Matsushita NOS TO92 12) 2SC1342 Hitachi NOS TO92 29) 2SC1583 NEC NOS dual 12) 2SC1681 Toshiba NOS TO92 0) 2SC1684 Toshiba NOS 5) 2SC1685 Matsushita NOS TO92 5) 2SC1687 Matsushita NOS TO92 2) 2SC1708 Mitsubishi NOS TO92 4) 2SC1775 Hitachi NOS 5) 2SD756 Hitachi NOS 6) 2SK30-O Toshiba NOS TO92 モールドパワトランジスタ 25) 2SA1491(Si-PNP/TO-3P) Sanken Pcmax=100W, Vceo=-140V, Ic=-10A, Tj=150℃, hFE=50-150, fT=20MHz 100) 2SB761(Si-PNP/TO-220) Matsushita Pcmax=35W, Vcbo=-60V, Ic=-3A, Tj=150℃, hFE=100typ 100) 2SB1439(Si-PNP/MT-3) Matsushita Pcmax=1.5W, Vceo=-100V, Ic=-2A, hFE=120/340, fT=30MHz, Cob=80pF 100) 2SD1584(Si-NPN/SC-64) Renesas Pcmax=10W, Vcbo=60V, Ic=3A, Tj=150℃, hFE=1500typ 100) 2SD2023(Si-NPN/TO-220) ROHM Pcmax=40W, Vceo=60V, Ic=3A, hFE=60/320, Cob=70pF MetalCan トランジスタ 0) 2N3055 Fairchild NOS ￥- 旧型:アルミテーパードフランジ (48) .......
35) 2N3055 Fairchild NOS ￥900 TO3 AluminumCanTop TaperedFrange/Base '70th
84) 2N3055 Motorola NOS ￥1200 TO3 AluminumCanTop TaperedFrange/Base '70th
0) 2N3055 Motorola NOS ￥- TO3 MetalCan Mexico
0) MJ2955 Motorola NOS ￥- TO3 AluminumCanTop TaperedFrange/Base
0) MJ2955 Motorola NOS ￥- TO3 MetalCan Mexico
1) MJ2905 Motorola NOS ￥1500 TO3 MetalCan Complementary=2N3055
20) 2N3055 BSC NOS ￥300 D/C=0331 MetalCan
0) MJ2955 NOS ￥- TO3 MetalCan Complementary=2N3055
23) 2N3741 Motorola NOS ￥1000 TO66 MetalCan (2SA566 代替品)
41) 2N3741 BSC(Boca Semiconductor Co.) NOS ￥1000 D/C=0332, GoldPlated-TO66 MetalCan (2SA566 代替品)
14) 2N3766 Motorola NOS ￥1000 TO66 MetalCan (2SC1161 代替品)
5) 2N3766 Motorola NOS ￥1000 TO66 MetalCan (2SC1161 代替品) date=1970th
96) 2N3766 Transitron NOS ￥1000 TO66 MetalCan 1969年 (2SC1161 代替品)
4) 2N3767 Motorola NOS ￥1000 TO66 MetalCan (2SC1161 代替品)
4) 2N3767 Motorola NOS ￥1000 TO66 MetalCan (2SC1161 代替品) date=1970th
0) 2N3954 NS NOS ￥- DualFET MetalCan
8) FD1840 Solitron NOS ￥- DualFET MetalCan
0) FD1841 Solitron NOS ￥- DualFET MetalCan
4) 2SA566 Hitachi NOS ￥- SiEp MetalCan
2) 2SA566 Hitachi used ￥3300 SiEp MetalCan
0) 2SA606 NEC NOS ￥- SiEp MetalCan Complementary=2SC959
0) 2SA607 NEC NOS ￥- SiEp MetalCan w/ RadiationFrange Complementary=2SC960
0) 2SA626 NEC NOS ￥- SiEpMe TO3 Vcbo=80V Ic=-5A Pc=60W(Tc=25℃) Tj=150℃ Complementary=2SD180
0) 2SA627 NEC NOS ￥- SiEpMe TO3 Vcbo=100V Ic=-5A Pc=60W(Tc=25℃) Tj=150℃ Complementary=2SD188
5) 2SA649 ??? NOS ￥1800 TO3 Complementary=2SD218
0) 2SA653 NEC NOS ￥- SiEpMe TO66 Complementary=2SC1161
5) 2SA745A Sanken NOS \- TO3 PNP-SiEpMe Vcbo=-100V Pc=70W Tj=150C ft=15MHz Cob=220pF code="72Y" (vh2d33)
1) 2SB126(Ge-PNP/TO-3) Matsushita USED cut-leads ** BIN-727 **
12) 2SB368 Hitachi NOS TO66 PNP-GeA Vcbo=-45V Pc=6.6W Tj=85C code="B 6B5"(9), "A 6B5"(1), "A 5G1"(1), "B 5K2"(1) (vh2d33)
6) 2SB407 Toshiba NOS TO3 PNP-GeA Vcbo=-30V Pc=30W Tj=85C code="1B" (vh2d33)
1) 2SB426 Toshiba NOS TO3 PNP-GeA Vcbo=-32V Pc=30W Tj=85C code="Y" (vh2d33)
6) 2SB463 Toshiba NOS TO66 PNP-GeA Vcbo=-32V Pc=6W Tj=85C code="Y 3K"(5), "Y 3I"(1) (vh2d33)
1) 2SB471 ESE NOS ￥1800 Germanium TO3 Vcbo=60V Pc=30W(Tc=25℃)
3) 2SB481(Si-PNP/TO-3) Matsushita USED ** BIN-727 **
1) 2SB554 Toshiba NOS ￥1800 TO-3
1) 2SB681 Toshiba NOS ￥1800 TO-3
1) 2SC494 Toshiba NOS \- TO-3 code="Y" (vh2d33)
3) 2SB509(Si-PNP/TO-3) ? ** BIN-727 **
1) 2SC681A Hitachi NOS ￥2200 TO-3 Vcbo=V Ic=A Pc=W(Tc=25℃) Tj=150℃
6) 2SC799 NEC NOS \- NPN-SiEP Vcbo=80V Pc=10W Tj=175C ft=250MHz Cob=15pF TO-38-flange(sink) code="K64B" (vh2d33)
4) 2SC960 NEC NOS \- NPN-SiEP Vcbo=120V Pc=1W Tj=150C ft=100MHz Cob=35pF TO-38-flange(sink) (vh2d29)
1) 2SC936 Hitachi NOS ￥1800 SiTMe TO-3 Vcbo=1000V Ic=1A Pc=22W Tj=125℃
2) 2SC936A Hitachi NOS ￥1800 SiTMe TO-3 Vcbo=1000V Ic=1A Pc=22W Tj=125℃
6) 2SC1101(Si-NPN/TO-3) NEC Pcmax=50W, Vcbo=1100V, Ic=1A, Tj=150℃, hFE=60typ
2) 2SC1114 Sanken NOS ￥1800 SiTMe TO-3 Vcbo=300V Ic=4A Pc=100W Tj=150℃
14) 2SC1164 Si-NPN/TO-5 Toshiba
55) 2SC1172B Toshiba TO-3/50W
6) 2SC1403A Sanken NOS \- TO-3 NPN-SiTMe Vcbo=160V Pc=70W Tj=150C ft=-MHz Cob=100pF code="73Y" (vh2d33)
4) 2SD90 Sanken NOS TO66 code="9S0", "9D0" (vh2d33)
4) 2SD141(Si-NPN/TO-3) NEC USED ** BIN-727 **
1) 2SD141(Si-NPN/TO-3) NEC USED cut-leads ** BIN-727 **
0) 2SD180 NEC NOS ￥- SiEpMe TO-3 Vcbo=80V Ic=5A Pc=50W(Tc=25℃) Tj=150℃ Complementary=2SA626
0) 2SD188 NEC NOS ￥- SiEpMe TO-3 Vcbo=100V Ic=5A Pc=60W(Tc=25℃) Tj=150℃ Complementary=2SA627
0) 2SD217 NEC NOS ￥2500 SiEpMe TO-3 Vcbo=120V Ic=7A Pc=60W(Tc=25℃) Tj=150℃ Complementary=2SA648
2) 2SD218 NEC NOS ￥3300 SiEpMe TO-3 Vcbo=150V Ic=7A Pc=60W(Tc=25℃) Tj=150℃ Complementary=2SA649
4) 2SD218 NEC used ￥2200 TO3
4) 2SD255 NEC NOS TO66 code="FA 22" (vh2d33)
2) 2SD315(Si-NPN/TO-3) ? ** BIN-727 **
1) 2SD315E(Si-NPN/TO-3) ? ** BIN-727 **
1) 2SD371 Toshiba NOS ￥1500 TO-3 SiTMe TO3 Vcbo=90V Ic=6A Pc=50W(Tc=25℃) Tj=150℃
6) 2SD424 Toshiba NOS ￥1500 TO-3 Vcbo=V Ic=A Pc=W(Tc=25℃) Tj=150℃
1) 2SD551 Luxman NOS ￥2100 SiTMe TO-3 Vcbo=V Ic=A Pc=W(Tc=25℃) Tj=150℃
1) SK3113/2SD725(Si-NPN/TO-3) Hitachi ** BIN-727 **
20) 2SD820 Toshiba TO-3/50W
10) 2SD822 Toshiba NOS ￥1500 TO-3
1) 2SD871 Toshiba NOS ￥1500 TO-3
1) 2SD898A Hitachi NOS ￥1500 TO-3
24) 2SD900B Hitachi TO-3/50W
1) 2SD929 Fujitsu NOS ￥1500 TO-3
2) 2SD1341P(ECG238)(Si-NPN/TO-3) Hitachi? ** BIN-727 **
2N トランジスタ 2) 2N35 /CK760(Ge-NPN/TO-22) Sylvania || Pcmax=50mW, Vceo=25V, Ic=100mA, Tj=85℃, hFE=25/125. fa=0.3MHz, Cob=-pF 3) 2N44(Ge-PNP/U10) GE NOS LargeFrange-TO-39like(black coated) code=304 || Pcmax=150mW, Vceo=-45V,Ic=-300mA, Tj=85℃, hFE=31typ, f=0.2MHz, Cob=80pF 1) 2N44A(Ge-PNP/R32) GE D/C=5948 || Pcmax=50 mW, Vcbo=-30V, Ic=-8mA, Tj=75℃, hFE=15typ, fT=-, Cob=20pF 2) 2N109(Ge-PNP/TO-40) RCA USED || Pcmax=165 mW, Vcbo=-35V, Vceo=-25V, Ic=-150mA, Tj=85℃, hFE=65min, fae=5MHz, Cob=60pF 2) 2N112(Ge-PNP/TO-22) Raytheon || Pcmax=130mW, Vceo=-15V, Ic=-200mA, Tj=85℃, hFE=30typ. fa=2MHz, Cob=24pF 1) 2N120 TI USED black-jacket 2) 2N123(Ge-PNP/R31) GE NOS TopTipTO-39like(black coated) code=321 Pcmax=150mW, Vceo=-15V, Ic=-125mA, Tj=85℃, hFE=75typ. fa=4MHz, Cob=24pF 2) 2N123(Ge-PNP/R31) GE || Pcmax=150mW, Vceo=-15V, Ic=-125mA, Tj=85℃, hFE=75typ. fa=4MHz, Cob=24pF 6) 2N158(Ge-PNP/TO-13) CBS 別写真 || Pcmax=20 W, Vcbo=-60V, Vceo=-60V, Ic=-3A, Tj=85℃, hFE=21min, fae=0.1MHz, - 1) 2N168A(Ge-NPN/OV17) GE D/C=913, black-jacket || Pcmax=65 mW, Vcbo=15V, Vceo=15V, Ic=20mA, Tj=85℃, hFE=40typ, fae=3MHz, Cob=5pF 2) 2N169A(Ge-NPN/OV-17) GE || Pcmax=55mW, Vceo=15V, Ic=20mA, Tj=85℃, hFE=72typ. fa=3MHz, Cob=5pF 6) 2N169A(Ge-NPN/OV17) GE USED black-jacket || Pcmax=55 mW, Vcbo=25V, Vceo=25V, Ic=25mA, Tj=85℃, hFE=50typ, fae=4MHz, Cob=5pF 1) 2N176(Ge-PNP/TO-3) MF USED LIGHTLY || Pcmax=90W, Vcbo=-40V, Ic=-3A, Tj=90℃, hFE=25/90, fa=0.175MHz, Cob=-pF 1) 2N189(Ge-PNP/R32) GE NOS LargeFrange-TO-39like(black coated) code=130 Pcmax=200mW, Vcbo=-25V, Ic=-200mA,Tjmax=85℃, hFE=35typ, fa=0.3MHz, Cob=80pF 1) 2N212(Ge-NPN/TO-22) ETCO(Electronic Transistors Corporation) NOS TO-39like gold-lead || Pcmax=150mW, Vceo=18V, Ic=100mA, Tj=75℃, hFE=20typ, fa=4MHz, Cob=20pF 2) 2N217(Ge-PNP/TO-1) RCA || Pcmax=150mW, Vceo=-25V, Ic=-70mA, Tj=50℃, hFE=75typ. fa=1MHz, Cob=20pF 2) 2N217(Ge-PNP/TO-1) RCA USED || Pcmax=150 mW, Vcbo=-25V, Vceo=-25V, Ic=-70mA, Tj=50℃, hFE=75typ, fae=1MHz, Cob=20pF 9) CRP-JAN2N222A(Ge-PNP/TO-1) Raytheon D/C=7250 , Au-plated leads Pcmax=70mW, Vceo=-12V, Ic=-70mA Tj=85℃, hFE=20typ, fa=0.4MHz, Cob=70pF 2) 2N241(Ge-PNP/R32) GE || Pcmax=100mW, Vcbo=-25V, Ic=-200mA, Tj=85℃, hFE=75typ. fa=0.5MHz, Cob=80pF 3) 2N241A(Ge-PNP/R32) GE Large-Frange-TO-39like(black coated) code=247 || Pcmax=200mW, Vcbo=-25V, Ic=-200mA, Tj=85℃, hFE=75typ, fa=0.5MHz, Cob=80pF 1) 2N242(Ge-PNP/TO-3) Tung-Sol USED D/C=105,light-blue coating || Pcmax=106W, Vcbo=45V, Vceo=45V, Vebo=45V, Ic=2A, Tj=100℃, hFE=60typ, fT=0.1MHz,- ** BIN-727 ** 2) 2N247(Ge-PNP/TO-7) RCA || Pcmax=80mW, Vcbo=-35V, Ic=-10mA, Tj=85℃, hFE=60typ. fa=60MHz, Cob=3pF 2) 2N247(Ge-PNP/TO-7) RCA || Pcmax=80 mW, Vcbo=-35V, Ic=-10mA, Tj=85℃, hFE=60typ, fae=60MHz, Cob=3pF 1) 2N247(Ge-PNP/TO-7) RCA USED || Pcmax=80 mW, Vcbo=-35V, Ic=-10mA, Tj=85℃, hFE=60typ, fae=60MHz, Cob=3pF 1) 2N250(Ge-PNP/TO-3) TI USED code=980952 || Pcmax=25 W, Vcbo=-30V, Ic=-3A, Tj=85℃, hFE=30/90, fT=-, Cob=- 2) 2N253 (Ge-NPN/TO-22) TI USED? #980735,980740 || Pcmax=65mW, Vcbo=12V, Vceo=12V, --Tj=75℃, hFE=10typ, fae=1MHz, - 2) 2N255A(Ge-PNP/TO-3) CBS USED LIGHTLY Germanium-Tr || Pcmax=20W, Vceo=-15V, Ic=-6A, Tjmax=100℃, hFE=30min, fa=100kHz, Cob=-pF 1) 2N256(Ge-PNP/TO-3) CBS D/C=852, black-jacket || Pcmax=20 W, Vcbo=-30V, Vceo=-30V, Ic=-3A, Tj=85℃, hFE=30/100, fae=0.1MHz, - 1) 2N270(Ge-PNP/R27) RCA NOS metal-cylinder code=FU 7A || Pcmax=150mW, Vceo=-12V, Ic=-150mA, Tj=85℃, hFE=70typ, fa=0.3MHz, Cob=-pF 1) 2N277(Ge-PNP/TO-36) Tung-Sol USED D/C=7239 || Pcmax=170W, Vcbo=-40V, Vceo=-25V, Vebo=-20V, Ic=-15A, Tj=95℃, hFE=35/70, fae=0.2MHz, - ** BIN-727 ** 2) CEA JAN2N297A(Ge-PNP/TO-3) Bendix USED D/C=422, very-rusty || Pcmax=35W, Vcbo=60V, Vceo=40V, Vebo=6V, Ic=4A, Tj=100℃, hFE=40/100, fT=0.1MHz,- ** BIN-727 ** 1) 2N321(Ge-PNP/TO-5) GE D/C=121 black-jacket || Pcmax=225 mW, Vcbo=-25V, Vceo=-20V, Ic=-200mA, Tj=85℃, hFE=80 typ, fae=1MHz, Cob=40pF 2) 2N326(Ge-NPN/TO-3) Sylvania USED D/C=034, black-jacket || Pcmax=7 W, Vcbo=35V, Ic=2A, Tj=85℃, hFE=15/60, fae=0.12MHz, - 1) 2N327A(Si-PNP/TO-39) Raytheon USED, CUT-LEADS, D/C=7243, Au-plated leads || Pcmax=100mW, Vceo=-40V, Ic=-50mA, Tj=160℃, hFE=22, fT=0.1MHz, Cob=120pF 1) 2N331(Ge-PNP/TO-39) Industro NOS gold-leads || Pcmax=300mW, Vcbo=-30V, Ic=200mA, Tj=85℃, hFE=50typ, fa=0.4MHz, Cob=60pF 1) CAKK JAN2N331(Ge-PNP/TO-39) GI gold-leads || Pcmax=300mW, Vcbo=-30V, Ic=200mA, Tj=85℃, hFE=50typ, fa=0.4MHz, Cob=60pF 15) 2N331(Ge-PNP/TO-39) ETCO gold-leads || Pcmax=300mW, Vcbo=-30V, Ic=200mA, Tj=85℃, hFE=50typ, fa=0.4MHz, Cob=60pF 42) 2N331(Ge-PNP/TO-39) SES gold-leads || Pcmax=300mW, Vcbo=-30V, Ic=200mA, Tj=85℃, hFE=50typ, fa=0.4MHz, Cob=60pF 1) 2N346(Ge-PNP/TO-23) Philco D/C=6240 || Pcmax=20 mW, Vcbo=-5V, Vceo=-5V, Ic=-5mA, Tj=85℃, hFE=66typ, fae=30MHz, Cob=12pF 1) 2N346(Ge-PNP/TO-23) Philco USED || Pcmax=20 mW, Vcbo=-5V, Vceo=-5V, Ic=-5mA, Tj=85℃, hFE=66typ, fae=30MHz, Cob=12pF 2) 2N351(Ge-PNP/TO-3) ? very-old, gold-plated jacket, coating/label are fainted || Pcmax=10W, Vcbo=50V, Vceo=40V,-, Ic=3A, Tj=90℃, hFE=20/60, fT=0.3MHz,- ** BIN-727 ** 2) 2N364 TI code=914 1) 2N365 TI USED code=921 2) 2N367(Ge-PNP/TO-22) TI || Pcmax=100mW, Vcbo=-30V, Ic=-50mA, Tj=75℃, hFE=50min. fa=0.3MHz, Cob=-pF 3) 2N368(Ge-PNP/TO-22) ETCO NOS gold-lead Pcmax=100mW, Vcbo=-30V, Ic=-50mA, Tj=75℃, hFE=10min, fa=0.4MHz, Cob=-pF 1) 2N369(Ge-PNP/TO-22) TI USED code=980831 || Pcmax=100 mW, Vcbo=30V, Ic=50mA, Tj=75℃, hFE=20min, fae=0.6MHz, - 5) 2N375(Ge-PNP/TO-3) Motorola USED LIGHTLY, Black-top Pcmax=106W, Vceo=-60V, Ic=-3A, Tjmax=95℃, hFE=60typ, fa=0.1MHz, Cob=-pF 1) 2N375(Ge-PNP/TO-3) Motorola USED D/C=0-16, black-jacket, cut-leads || Pcmax=106 W, Vcbo=-80V, Vceo=-60V, Ic=-3A, Tj=95℃, hFE=60typ, fae=0.1MHz, - 1) 2N384(Ge-PNP/TO-44) RCA || Pcmax=120mW, Vceo=-40V, Ic=-10mA, Tjmax=100℃, hFE=75/120, fa=40MHz, Cob=4pF 1) 2N384(Ge-PNP/TO-44) RCA USED short leads || Pcmax=120mW, Vceo=-40V, Ic=-10mA, Tjmax=100℃, hFE=75/120, fa=40MHz, Cob=4pF 2) 2N388A(Ge-NPN/TO-39) GI NOS gold-leads code=221 || Pcmax=150mW, Vcbo=40V, Ic=200mA, Tjmax=100℃, hFE=60/200, fa=5MHz, Cob=-pF 1) 2N396A(Ge-PNP/TO-39) GE NOS black coated || Pcmax=150mW, Vceo=-20V, Ic=-200mA, Tj=100℃, hFE=30/150, fa=4MHz, Cob=24pF 1) USN-2N396A GE NOS? TO-39like cut-lead || Pcmax=150mW, Vceo=-20V, Ic=-200mA, Tj=100℃, hFE=30/150, fa=4MHz, Cob=24pF 1) 2N398A(Ge-PNP/TO-5) RCA || Pcmax=50mW, Vceo=-105V, Ic=-100mA, Tjmax=85℃, hFE=20min, fa=0.4MHz, Cob=-pF 1) 2N398A(Ge-PNP/TO-5) TI D/C=706 || Pcmax=50mW, Vceo=-105V, Ic=-100mA, Tjmax=85℃, hFE=20min, fa=0.4MHz, Cob=-pF 2) 2N404(Ge-PNP/TO-39) RCA || Pcmax=150mW, Vcbo=-25V, Ic=-100mA, Tj=85℃, hFE=40typ. fa=6MHz, Cob=24pF 2) 2N404(Ge-PNP/TO-39) RCA original bags || Pcmax=150mW, Vcbo=-25V, Ic=-100mA, Tj=85℃, hFE=40typ. fa=6MHz, Cob=24pF 3) 2N404(Ge-PNP/TO-39) TI Au-plated leads D/C=7029C || Pcmax=150mW, Vcbo=-25V, Ic=-100mA, Tj=85℃, hFE=40typ. fa=6MHz, Cob=24pF 1) JAN2N404A(Ge-PNP/TO-39) GIT D/C=7104 || Pcmax=150mW, Vcbo=-40V, Ic=-150mA, Tj=100℃, hFE=35min. fa=4MHz, Cob=35pF 2) 2N404A(Ge-PNP/TO-39) RCA || Pcmax=150mW, Vcbo=-40V, Ic=-150mA, Tj=100℃, hFE=35min. fa=4MHz, Cob=35pF 2) 2N404A(Ge-PNP/TO-39)) TI || Pcmax=150mW, Vcbo=-40V, Ic=-150mA, Tj=100℃, hFE=35min. fa=4MHz, Cob=35pF 2) 2N407(Ge-PNP/TO-40) RCA USED || Pcmax=150 mW, Vcbo=-20V, Vceo=-18V, Ic=-70mA, Tj=85℃, hFE=65 typ, fae=6.7MHz, - 11) 2N408(Ge-PNP/TO-1) RCA || Pcmax=150mW, Vceo=-12V, Ic=-70mA, Tjmax=85℃, hFE=65typ, fa=6.7MHz, Cob=-pF 2) 2N410(Ge-PNP/TO-1) RCA || Pcmax=80mW, Vcbo=-13V, Ic=-15mA, Tj=85℃, hFE=50typ. fa=3MHz, Cob=20pF 5) 2N416(Ge-PNP/TO-39) GI D/C=7122 || Pcmax=200mW, Vceo=-12V, Ic=-200mA, Tjmax=85℃, hFE=90typ, fT=4MHz, Cob=20pF 7) 2N416(Ge-PNP/TO-39) GI D/C=7122 || Pcmax=200mW, Vceo=-12V, Ic=-200mA, Tjmax=85℃, hFE=90typ, fT=4MHz, Cob=20pF 1) 2N424(Si-NPN/TO-53) Solitron || Pcmax=45W, Vcbo=80V,-, Vebo=10V, Ic=2A, Tj=200℃, hFE=12/60, fT=6MHz,- ** BIN-727 ** 1) 2N446A(Ge-NPN/TO-39) GI || Pcmac=150mW, Vcbo=30V, Ic=50mA, hFE=60/250, fa=8MHz, Cc=28pF 2) 2N456(Ge-PNP/TO-3) Slevite D/C=943 || Pcmax=50 W, Vcbo=-40V, Vceo=-40V, Ic=-5A, Tj=95℃, hFE=10min, fae=0.2MHz, - 2) 2N457(Ge-PNP/TO-3) TI USED D/C=145 || Pcmax=50W, Vcbo=-60V, Vceo=-40V, Vebo=-20V, Ic=-7A, Tj=100℃, hFE=30/90, fae=0.2MHz, - ** BIN-727 ** 6) 2N457A(Ge-PNP/TO-3) - MIL NOS TO-3 MIL-1ea-bag D/C=737 packed-date=Feb-1979 || Pcmax=50W, Vceo=-60V, Ic=-7A, Tjmax=100℃, hFE=30, fa=0.2MHz, Cob=-pF 6) 2N457A(Ge-PNP/TO-3) - MIL NOS TO-3 MIL-1ea-bag D/C=837 packed-date=Feb-1979 || Pcmax=50W, Vceo=-60V, Ic=-7A, Tjmax=100℃, hFE=30, fa=0.2MHz, Cob=-pF 1) 2N465(Ge-PNP/TO-39) Motorola original-bag || Pcmax=200mW, Vceo=-30V, Ic=-100mA, Tjmax=85℃, hFE=27min, fa=0.5MHz, Cob=-pF 2) 2N466(Ge-PNP/TO-5) GI gold-leads || Pcmax=200mW, Vceo=-20V, Ic=-100mA, Tjmax=85℃, hFE=56min, fa=0.6MHz, Cob=-pF 2) 2N474(Si-NPN/TO-39) RCA USED short leads, rusty || Pcmax=200mW, Vceo=-30V, Ic=25mA, Tjmax=200℃, hFE=35typ, fT=15MHz, Cob=5pF 2) 2N479(Si-NPN/TO-5) no maker USED black-jacket || Pcmax=200 mW, Vcbo=30V, Vceo=30V, Ic=25mA, Tj=200℃, hFE=60typ, fT=18MHz, Cob=5pF 0) 2N489(UniJTr/TO-5) Central USED 1) 2N489(UniJTr/TO-5) GE used black package 0) 2N490A(UniJTr/TO-5) GE USED 4) 2N491(UniJTr/TO-5) TI gold-lead code=6909A 1) 2N491(UniJTr/TO-5) GE NOS? gold-lead cut-lead 0) 2N492(UniJTr/TO-5) TI USED 0) 2N492C(UniJTr/TO-5) TI USED 0) 2N493(UniJTr/TO-5) TI USED 0) 2N493B(UniJTr/TO-5) TI USED 1) 2N494(UniJTr/TO-5) GE NOS gold-lead code=221 1) 2N494(UniJTr/TO-5) GE NOS black coated can, gold-lead code=221 1) 2N494(UniJTr/TO-5) GE NOS black coated can, gold-lead code=221 2) 2N504(Ge-PNP/TO-1) Philco fainted-silk || Pcmax=60 mW, Vcbo=-35V, Vceo=-25V, Ic=-50mA, Tj=100℃, hFE=16min, fae=50MHz, Cob=3pF 1) 2N504(Ge-PNP/TO-1) Philco USED || Pcmax=60 mW, Vcbo=-35V, Vceo=-25V, Ic=-50mA, Tj=100℃, hFE=16min, fae=50MHz, Cob=3pF 1) 2N527(Ge-PNP/TO-5) GE silver-can || Pcmax=225mW, Vceo=-30V, Ic=-500mA, Tj=100℃, hFE=80typ, fa=2MHz, Cob=36pF 3) 2N527(Ge-PNP/TO-5) GE maybe slightly-USED, short-leads, black-can || Pcmax=225mW, Vceo=-30V, Ic=-500mA, Tj=100℃, hFE=80typ, fa=2MHz, Cob=36pF 1) 2N527(Ge-PNP/TO-5) GE maybe slightly-USED, short-leads, silver-can || Pcmax=225mW, Vceo=-30V, Ic=-500mA, Tj=100℃, hFE=80typ, fa=2MHz, Cob=36pF 2) 2N539A(Ge-PNP/TO-10) Honeywell USED || Pcmax=34 W, Vcbo=80V, Vceo=55V, Ic=3.5A, Tj=85℃, hFE=30/75, fae=0.2MHz, - 5) JAN2N539A(Ge-PNP/TO-10) G D/C=8424 || Pcmax=34W, Vceo=-55V, Ic=-3.5A, Tj=95℃, hFE=20/50, fa=0.2MHz 2) 2N581(Ge-PNP/TO-5) RCA || Pcmax=150mW, Vceo=-15V, Ic=-100mA, Tj=85℃, hFE=20min. fa=3MHz, Cob=20pF 1) 2N600(Ge-PNP/TO-31) Phico D/C=6352 fully-gold-plated || Pcmax=750 mW, Vcbo=-35V, Ic=-500mA, Tj=100℃, hFE=70/225, fae=5MHz, Cob=20pF 1) 2N618(Ge-PNP/TO-3) Motorola USED LIGHTLY || Pcmax=100W, Vceo=-60V, Ic=-3A, Tjmax=85℃, hFE=60/140, fT=0.2MHz, Cob=-pF 2) 2N627(Ge-PNP/TO-3) Motorola PNP/TO-3 USED LIGHTLY || Pcmax=90W, Vceo=-30V, Ic=-10A, Tjmax=85℃, hFE=30, fT=0.1MHz, Cob=-pF 2) 2N627(Ge-PNP/TO-3) Motorola D/C=1-08, 1-08, black-jacket || Pcmax=90 W, Vcbo=-40V, Vceo=-30V, Ic=-10A, Tj=85℃, hFE=30typ, fae=0.1MHz, - 2) 2N630(Ge-PNP/TO-3) Motorola D/C=9-44. 9-44, black-jacket || Pcmax=90 W, Vcbo=-100V, Vceo=-60V, Ic=-10A, Tj=85℃, hFE=30typ fae=0.1MHz, - 1) 2N650(Ge-PNP/TO-39) TI USED, Au-plated leads || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tj=90℃, hFE=30min, fa=0.75MHz, Cc=20pF 2) 2N651(Ge-PNP/TO-39) Sylvania || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tjmax=90℃, hFE=45min, fT=1MHz, Cob=20pF 1) 2N651(Ge-PNP/TO-39) GI D/C=7204 || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tjmax=90℃, hFE=45min, fT=1MHz, Cob=20pF 2) 2N651(Ge-PNP/TO-39) Motorola D/C=7252 , Au-plated leads || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tjmax=90℃, hFE=45min, fT=1MHz, Cob=20pF 8) 2N651(Ge-PNP/TO-39) GI TO-39 USED, CUT-LEADS, D/C=7139,7204etc || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tjmax=90℃, hFE=45min, fT=1MHz, Cob=20pF 7) 2N651(Ge-PNP/TO-39) Motorola USED, CUT-LEADS, D/C=7252, Au-plated leads || Pcmax=200mW, Vceo=-45V, Ic=-500mA, Tjmax=90℃, hFE=45min, fT=1MHz, Cob=20pF 4) 2N652A(Ge-PNP/TO-5) Motorola original-bag || Pcmax=200mW, Vcbo=-45V, Vceo=-45V, Vebo=-30V, Ic=-500mA, Tj=90℃, hFE=100min, fae=1.2MHz, Cob=20pF 0) 2N656A(Si-NPN/TO-39) Motorola USED, Au-plated leads || Pcmax=1W, Vceo=60V, Ic=500mA, Tjmax=200℃, hFE=30/90, fT=40MHz, Cob=20pF 1) 2N657(Si-NPN/TO-39) TI USED, CUT-LEADS, D/C=6631, Au-plated leads || Pcmax=1W, Vceo=100V, Ic=500mA, Tjmax=200℃, hFE=30/90, fT=40MHz, Cob=20pF 4) 2N657(Si-NPN/TO-39) Transitron D/C=6911(1),7015(3), Au-plated legs, original plastic-tubes || Pcmax=1W, Vceo=100V, Ic=500mA, Tjmax=75℃, hFE=30/90, fT=40MHz, Cob=20pF 2) 2N669(Ge-PNP/TO-3) Motorola USED LIGHTLY || Pcmax=90W, Vceo=-40V, Ic=-3A, Tjmax=85℃, hFE=75/250, fT=0.1MHz, Cob=-pF 2) 2N677C(Ge-PNP/TO-3) Bendix USED LIGHTLY || Pcmax=90W, Vceo=-70V, Ic=15A, Tjmax=100℃, hFE=20/60, fa=0.2MHz, Cob=-pF 1) 2N679(Ge-NPN/TO-5) Sylvania D/C=230 || Pcmax=150mW, Vceo=20V, Ic=200mA, Tj=85℃, hFE=20min. fa=1MHz, Cob=-pF 2) 2N681(SCR) - ** BIN-727 ** 1) 2N685(SCR) - NIB ** BIN-727 ** 1) 2N688(SCR) - NIB ** BIN-727 ** 4) 2N696 Raytheon gold-lead date=6802 || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=20/60. fa=40MHz, Cob=35pF 2) 2N696(Si-NPN/TO-5) Motorola || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=20/60. fa=40MHz, Cob=35pF 6) 2N697(Si-NPN/TO-39) Raytheon D/C=7230,7241etc , Au-plated leads || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 2) 2N697(Si-NPN/TO-39) TI,Fairchild USED, CUT-LEADS, D/C=, Au-plated leads || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 19) 2N697(Si-NPN/TO-39) RCA gold-lead || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 1) 2N697(Si-NPN/TO-39) GE gold-lead || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 1) 2N697(Si-NPN/TO-39) Raytheon gold-lead date=7201 || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 1) 2N697(Si-NPN/TO-39) Raytheon D/C=7241,Au-plated leads || Pcmax=600mW, Vceo=40V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cob=35pF 3) 2N699 (Si-NPN/TO-39) GI D/C=6641,6705,6705 Au-plated leads, for Military 10CV-1180124 || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 15) 2N699 (Si-NPN/TO-39) Fairchild NOS 10CV(5961)-1180124, gold-lead date=414etc packed-date=Sep-1974 MIL-bag=NATO || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 44) 2N699 (Si-NPN/TO-39) Fairchild D/C=413(1974) Au-plated leads, for Military 10CV-1180124 || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 4) 2N699 (Si-NPN/TO-39) Solitron NOS 10CV(5961)-1180124, gold-lead date=330(1973) packed-date=Sep-1974 MIL-bag=NATO || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 15) 2N699 (Si-NPN/TO-39) Solitron D/C=330(1973) Au-plated leads, for Military 10CV-1180124 || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 6) 2N699 (Si-NPN/TO-39) Raytheon NOS 10CV(5961)-1180124, gold-lead packed-date=Sep-1974 MIL-bag=NATO || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 1) 2N699 (Si-NPN/TO-39) Raytheon gold-lead date=6635 || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 48) 2N699 (Si-NPN/TO-39) Raytheon DC=7409 Au-plated leads, for Military 10CV-118012 || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF4 2) 2N699 (Si-NPN/TO-39) TI gold-lead date=7815 made in Singapore || Pcmax=600mW, Vceo=80V, Ic=500mA, Tj=175℃, hFE=40/120. fa=50MHz, Cob=20pF 1) 2N706(Si-NPN/TO-18) Fairchild USED, Au-plated leads || Pcmax=360mW, Vceo=20V, Ic=200mA, Tj=200℃, hFE=20min, fT=200MHz, Cc=6pF 16) 2N706(Si-NPN/TO-18) SE D/C=010 || Pcmax=360mW, Vceo=20V, Ic=200mA, Tj=200℃, hFE=20min, fT=200MHz, Cc=6pF 1) 2N706(Si-NPN/TO-18) Raytheon D/C=7036, Au-plated leads 10) 2N706A(Si-NPN/TO-18) Fairchild USED? || Pcmax=360mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=20/60, fT=200MHz, Cob=5pF 3) 2N706A(Si-NPN/TO-18) Sylvania USED? || Pcmax=360mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=20/60, fT=200MHz, Cob=5pF 1) 2N706B(Si-NPN/TO-18) - D/C=8/73, #5961-883-9495 - original MIL-bag 34156 || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=20/60, fT=200MHz, Cc=5pF 1) 2N708(Si-NPN/TO-18) Fairchild Au-plated leads || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=200℃, hFE=30/120, fT=300MHz, Cc=8pF 3) 2N708(Si-NPN/TO-18) - Au-plated leads || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=200℃, hFE=30/120, fT=300MHz, Cc=8pF 1) 2N709(Si-NPN/TO-18) Fairchild Au-plated leads || Pcmax=300mW, Vceo=6V, Ic=200mA, Tj=175℃, hFE=40/120, fT=600MHz, Cc=3pF 1) 2N720A(Si-NPN/TO-18) RCA gold-lead || Pcmax=400mW, Vceo=60V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cc=20pF 1) JAN2N720A(Si-NPN/TO-18) Raytheon D/C=P9114 || Pcmax=400mW, Vceo=60V, Ic=500mA, Tj=175℃, hFE=40/120, fT=50MHz, Cc=20pF 1) 2N727(Si-PNP/TO-18) SCA gold-lead date=7915 || Pcmax=300mW, Vceo=-20V, Ic=-50mA, Tj=175℃, hFE=30/120, fT=140MHz, Cc=5pF 13) 2N753(Si-NPN/TO-18) ETCO 1975, #5961-00-843-2533 || Pc=300mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=40/120, fT=200MHz, Cob=5 pF **BIN-17C** 16) 2N753(Si-NPN/TO-18) ETCO 1976 #5961-00-851-8165 || Pc=300mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=40/120, fT=200MHz, Cob=5 pF **BIN-17C** 54) J3173(=2N753)(Si-NPN/TO-18) TI GE(provider)-original box, D/C=1962,1963 #5961-00-903-3587 || Pc=300mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=40/120, fT=200MHz, Cob=5 pF **BIN-17C** 2) J3173(=2N753)(Si-NPN/TO-18) TI MIL-bag, D/C=1965 #5961-00-903-3587 || Pc=300mW, Vcbo=25V, Vceo=15V, Vebo=5V, Ic=200mA, Tj=175℃, hFE=40/120, fT=200MHz, Cob=5 pF **BIN-17C** 6) 2N760A(Si-NPN/TO-18) ETCO for Military 110CV or 5961-9843156 Au-plated leads || Pcmax=500mW, Vceo=60V, Tj=175℃, hFE=40min, fT=50MHz, Cob=10pF 1) 2N760A(Si-NPN/TO-18) TI for Military 110CV or 5961-9843156 Au-plated leads || Pcmax=500mW, Vceo=60V, Tj=175℃, hFE=40min, fT=50MHz, Cob=10pF 1) JAN2N869A(Si-NPN/TO-18) Motorola D/C=K7636, Au-plated leads || Pcmax=360mW, Vceo=18V, Ic=200mA, Tj=175℃, hFE=40/120, fT=400MHz, Cc=6pF 1) CCAB JAN2N869A(Si-NPN/TO-18) Transitron #5961-00-950-1642 original MIL-bag, Au-plated leads || Pcmax=360mW, Vceo=18V, Ic=200mA, Tj=175℃, hFE=40/120, fT=400MHz, Cc=6pF 44) 2N914(Si-NPN/TO-18) Fairchild Au-plated leads || Pcmax=360mW, Vce=15V, Ic=200mA, Tj=175℃, hFE=30/120, ft=300MHz, Cob=6pF 7) 2N915(Si-NPN/TO-18) NS d/c=7928 Au-plated leads || Pcmax=360mW, Vceo=50V, fT=250MHz, Cob=4pF 3) JAN2N916(Si-NPN/TO-18) Raytheon TO-72 D/C=12-67, #5961-715-1051 original MIL-paper-bag || Pcmax=360mW, Vce=25V, Ic=100mA, Tj=175℃, hFE=50/200, ft=300MHz, Cob=6pF 3) CRP-JAN2N918(Si-NPN/TO-72) Raytheon D/C=7331, Au-plated leads || Pcmax=200mW, Vce=15V, Ic=50mA, Tj=200℃, hFE=20/200, ft=600MHz, Cob=1.7pF 300) CGG-JAN2N918(Si-NPN/TO-72) Motorola D/C=K8728E Au-plated leads || Pcmax=200mW, Vce=15V, Ic=50mA, Tj=200℃, hFE=20/200, ft=600MHz, Cob=1.7pF 6) CRP-JAN2N918(Si-NPN/TO-72-2) Raytheon D/C=7418 || Pcmax=200mW, Vcbo=30V, Vceo=15V, Vebo=3V, Ic=50mA, Tj=200℃, hFE=20/200, fT=600MHz, Cob=1.7pF 1) 2N919A(Si-NPN/TO-18) NS D/C= , Au-plated leads || Pcmax=360mW, Vce=15V, Ic=220mA, Tj=200℃, hFE=20/60, ft=200MHz, Cob=9pF 100) 2N930(Si-NPN/TO-18) NS d/c=6938 Au-plated leads || Pcmax=300mW, Vceo=45V, Tj=200℃, hFE=100min, fT=30MHz, Cob=6pF, LOW NOISE 48) CCXP JAN2N930/JCCXP2N930(Si-NPN/TO-18) NS D/C=6912 || Pcmax=300mW, Vceo=45V, Tj=200℃, hFE=100min, fT=30MHz, Cob=6pF, LOW NOISE 34) 2N930(Si-NPN/TO-18) Rockwell D/C=8025 || Pcmax=300mW, Vceo=45V, Ic=30mA, Tj=200℃, hFE=100min, fT=30MHz, Cc=6pF, LN 1) 2N930(Si-NPN/TO-18) Westinghouse D/C=4/74, #5961-00-989-3761 original MIL-bag || Pcmax=300mW, Vceo=45V, Ic=30mA, Tj=200℃, hFE=100min, fT=30MHz, Cc=6pF, LN 1) 2N956(Si-NPN/TO-18) Raytheon gold-leads || Pcmax=500mW, Vceo=32V, Ic=500mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N956(Si-NPN/TO-18) NS D/C=7304 , Au-plated leads || Pcmax=500mW, Vceo=32V, Ic=500mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N956(Si-NPN/TO-18) TSC D/C=7038 , Au-plated leads || Pcmax=500mW, Vceo=32V, Ic=500mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N956(Si-NPN/TO-18) Motorola USED, D/C= , Au-plated leads || Pcmax=500mW, Vceo=32V, Ic=500mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 2) 2N964A(Ge-PNP/TO-18) Motorola D/C=220, Au-plated leads, Black package || Pcmax=150mW, Vceo=-15V, Ic=-100mA, Tj=100℃, hFE=40min, fa=300MHz, Cc=4pF 50) 2N966 (Ge-PNP/TO-18) - D/C=915, Au-plated leads || Pcmax=150mW, Vceo=-12V, Ic=-150mA, Tj=100℃, hFE=40min, fa=300MHz, Cc=4pF 1) 2N968(Ge-PNP/TO-18) Electron Ind ASS/82 #5961-00-781-2926 || Pc=150mW, Vcbo=15V, Vceo=15V, Vebo=2V, Ic=200mA, Tj=100℃, hFE=17min, fT=300MHz, Cob=8 pF **BIN-17C** 50) 2N998(Si-NPN/TO-72-3) Motorola || Pcmax=500mW, Vcbo=100V, Vceo=60V, Vebo=15V, Ic=500mA, Tj=200℃, hFE=1600typ-Cob=30pF 3) 2N1016A(Si-NPN/MT38-2) Westinghouse USED D/C=6223,6223.6340 || Pcmax=150W, Vcbo=60V, Vceo=60V, Vebo=25V, Ic=7.5A, Tj=150℃, hFE=10min, fT=0.5MHz, - ** BIN-727 ** 1) 2N1016A(Si-NPN/MT38-2) Solitron USED D/C=- || Pcmax=150W, Vcbo=60V, Vceo=60V, Vebo=25V, Ic=7.5A, Tj=150℃, hFE=10min, fT=0.5MHz, - ** BIN-727 ** 1) 2N1024(Si-PNP/TO-39) Philco used TO-39likeLong(black coated) gold-lead date=6131 || Pcmax=250mW, Vceo=-15V, Ic=-100mA, Tj=175℃, hFE=22, fa=1MHz, Cc=14pF 7) 2N1038(Ge-PNP/TO-31) TI USED DISPLAY-only || Pcmax=20 W, Vcbo=-40V, Vceo=-30V, Ic=-3A, Tj=95℃, hFE=20/60, fae=0.225MHz, Cob=200pF 1) 2N1039(Ge-PNP/TO-31) TI USED D/C=6844, Au-plated leads || Pcmax=20W(Tc=25℃)/0.45W(Ta=25℃), Vceo=-40V, Ic=-3A, Tj=95℃, hFE=20/60, fa=0.225MHz, Cc=200pF 1) 2N1047(Si-NPN/TO-57) TI D/C=422, Au-plated leads || Pcmax=40W, Vceo=80V, Ic=0.5A, Tj=200℃, hFE=12/36, fa=2MHz, Cc=-pF 0) 2N1048(Si-NPN/TO-57) TI Au-plated leads || Pcmax=40W, Vceo=120V, Ic=0.5A, Tj=200℃, hFE=12/36, fa=2MHz, Cc=-pF 0) 2N1049(Si-NPN/TO-57) STC(Silicon Transistor Corp.) Au-plated leads || Pcmax=40W, Vceo=80V, Ic=0.5A, Tj=200℃, hFE=30/90, fa=2MHz, Cc=-pF 0) 2N1050(Si-NPN/TO-57) TI Au-plated leads || Pcmax=40W, Vceo=120V, Ic=0.5A, Tj=200℃, hFE=30/90, fa=2MHz, Cc=-pF 0) 2N1050B(Si-NPN/TO-57) STC(Silicon Transistor Corp.) Au-plated leads || Pcmax=40W, Vceo=120V, Ic=0.5A, Tj=200℃, hFE=30/90, fa=6MHz, Cc=-pF 2) 2N1100(Ge-PNP/TO-36) Delco Almost-New D/C=850,850 || Pcmax=150 W, Vcbo=-100V, Vceo=-80V, Ic=-15A, Tj=95℃, hFE=25/50, fae=0.15MHz, - 4) 2N1100(Ge-PNP/TO-36) Delco USED D/C=850,852 || Pcmax=150 W, Vcbo=-100V, Vceo=-80V, Ic=-15A, Tj=95℃, hFE=25/50, fae=0.15MHz, - 1) 2N1124(Ge-PNP/TO-30) Philco NOS TO-39like(black coated) gold-lead date=6315 || Pcmax=300mWVcbo=40V, Tj=85℃, hFE=40min, fT=600kHz 1) 2N1131A(Si-PNP/TO-39) Raytheon MIL NSN-5961-00-752-5240 D/C=87 || Pcmax=600mW, Vceo=-35V, Ic=-600mA, Tj=175℃, hFE=20/45, fT=50MHz, Cob=45pF **BIN-17C** 6) CRP JAN2N1131(Si-PNP/TO-39) Raytheon MIL NSN-5961-00-081-8385, D/C=85 || Pcmax=600mW, Vceo=-35V, Ic=-600mA, Tj=175℃, hFE=30/90, fT=50MHz, Cob=30pF **BIN-17C** 11) 2N1131A(Si-PNP/TO-39) Electronic Industry MIL NSN-5961-00-764-2572, D/C=85 || Pcmax=600mW, Vceo=-35V, Ic=-600mA, Tj=175℃, hFE=30/90, fT=50MHz, Cob=30pF **BIN-17C** 6) 2N1132(Si-PNP/TO-39) Motorola D/C=7252 , Au-plated leads || Pcmax=600mW, Vceo=-40V, Ic=-600mA, Tj=175℃, hFE=30/90, fT=60MHz, Cob=45pF 3) 2N1136(Ge-PNP/TO-3) CLEVITE USED D/C=334,340,415 || Pcmax=60W, Vcbo=60V, Vceo=30V, Vebo=5V, Ic=6A, Tj=100℃,hFE=50/100, fT=0.5MHz,- ** BIN-727 ** 2) JAN2N1142(Ge-PNP/TO-39) Motorola MIL NSN-5961-00-951-6296, D/C=76 || Pcmax=300mW, Vcbo=-35V, Ic=-100mA, Tj=100℃, hFE=10min, fT=300MHz, Cob=3pF **BIN-17C** 3) 2N1143(Ge-PNP/TO-39) Motorola D/C=035(2),935(1), Au-plated leads || Pcmax=300mW, Vcbo=-30V, Ic=-100mA, Tj=100℃, hFE=10min, fT=200MHz, Cob=3pF 1) 2N1156(Si-NPN/TO-22) - NOS black-metal + aluminum-sink gold-lead || Pcmax=750mW, Vcbo=120V, Ic=40mA, Tj=165℃, hFE=9min, fT=0.4MHz, Cob=3pF 2) JAN2N1165(Ge-PNP/TO-3) K TO-3 CDBS D/C=7228 || Pcmax=106W, Vceo=-60V, Ic=-25A, Tj=100℃, hFE=15/65, fa=0.1MHz, Cc=-pF 1) 2N1183(Ge-PNP/TO-8) RCA || Pcmax=7.5W, Vceo=-20V, Ic=-3A, Tj=100℃, hFE=20/60, fa=0.35MHz, Cc=-pF 1) 2N1302(Ge-NPN/TO-39) Raytheon NOS TO-39like date=6226 || Pcmax=150mW, Vceo=25V, Ic=300mA, Tj=85℃, hFE=20/80, fa=1MHz, Cc=20pF 1) 2N1303 Raytheon NOS TO-39like date=6230 || Pcmax=150mW, Vceo=-25V, Ic=-300mA, Tj=85℃, hFE=20/80, fa=1MHz, Cc=20pF 4) 2N1303 TI TO-39 D/C=7214A, 7220A , Au-plated leads || Pcmax=150mW, Vceo=-25V, Ic=-300mA, Tj=85℃, hFE=20/80, fa=1MHz, Cc=20pF 1) 2N1303(Ge-PNP/TO-39) GE black-can || Pcmax=150mW, Vceo=-25V, Ic=-300mA, Tj=85℃, hFE=20/80, fa=1MHz, Cc=20pF 1) 2N1304(Ge-NPN/TO-39) TI TO-39 D/C=A711, Au-plated leads || Pcmax=150mW, Vceo=20V, Ic=300mA, Tj=85℃, hFE=40/200, fa=4MHz, Cc=20pF 1) 2N1305 TI TO-39 D/C=A542, Au-plated leads || Pc=150mW, Vceo=-20V, Icmax=-300mA, Tj=85℃, hFE=40/200, fa=4MHz, Cc=20pF 1) 2N1305(Ge-PNP/TO-5) TI D/C=606A, Au-plated leads Soldered, very-lightly used || Pc=150mW, Vceo=-20V, Icmax=-300mA, Tj=85℃, hFE=40/200, fa=4MHz, Cc=20pF 1) 2N1306 TI TO-39 D/C=A807, Au-plated leads || Pcmax=150mW, Vceo=-15V, Ic=-300mA, Tj=85℃, hFE=60/300, fa=8MHz, Cc=20pF 1) 2N1306(Ge-NPN/TO-39) ETCO || Pcmax=150mW, Vceo=15V, Ic=300mA, Tj=85℃, hFE=60/300, fa=8MHz, Cc=20pF 1) 2N1309(Ge-PNP/TO-5) TI D/C=6925A, Au-plated leads Soldered, very-lightly used Pc=150mW, Vceo=-15V, Icmax=-300mA, Tj=85℃, hFE=80min, fa=12MHz, Cc=20pF 0) 2N1310(Ge-NPN/TO-39) TI Au-plated leads || Pcmax=120mW, Vcbo=90V, Ic=200mA, Tj=75℃, hFE=20min, fa=0.5MHz, Cc=20pF 0) 2N1311(Ge-NPN/TO-39) ETCO Au-plated leads || Pcmax=120mW, Vcbo=75V, Ic=200mA, Tj=75℃, hFE=15min, fa=0.75MHz, Cc=20pF 0) 2N1312(Ge-NPN/TO-39) TI USED Au-plated leads || Pcmax=120mW, Vcbo=50V, Ic=200mA, Tj=75℃, hFE=20min, fa=1MHz, Cc=20pF 0) 2N1313(Ge-PNP/TO-39) TI USED Au-plated leads || Pcmax=120mW, Vcbo=-15V, Ic=-400mA, Tj=75℃, hFE=40min, fa=6MHz, Cc=20pF 11) 2N1370(Ge-PNP/TO-5) ETCO black-can || Pcmax=250mW, Vcbo=-25V, Vceo=-25V, Vebo=-10V, Ic=-200mA, Tj=75℃, hFE=45/165, fae=0.4MHz, - 1) 2N1370-5(Ge-PNP/TO-39) TI NOS TO39like gold-lead date=7028 || Pcmax=250mW, Vceo=-25V, Ic=-200mA, Tj=75℃, hFE=45/165, fT=0.4MHz, Cc=-pF 1) 2N1372(Ge-PNP/TO-39) Industro NOS gold-lead code=442 || Pcmax=250mW, Vceo=-25V, Ic=-200mA, Tj=85℃, hFE=25/105, fT=0.4MHz, Cc=-pF 1) 2N1372(Ge-PNP/TO-39) TI D/C=410 || Pcmax=250mW, Vceo=-25V, Ic=-200mA, Tj=85℃, hFE=25/105, fT=0.4MHz, Cc=-pF 1) 2N1373(Ge-PNP/TO-39) IR NOS TO39like gold-lead || Pcmax=250mW, Vceo=-45V, Ic=-200mA, Tj=85℃, hFE=25/105, fT=0.4MHz, Cc=-pF 1) 2N1395(Ge-PNP/TO-33-1) RCA NOS TO-39like 4-leads || Pcmax=120mW, Vcbo=-40V, Ic=-10mA, Tj=100℃, hFE=50/175, fT=12MHz, Cc=-pF 1) 2N1471(Ge-PNP/TO-39) - NOS TO-39like gold-lead || Pcmax=200mW, Vcbo=-12V, Ic=-200mA, Tj=75℃, hFE=100min, fT=3MHz, Cc=30pF 1) 2N1479(Si-NPN/TO-39) RCA || Pcmax=5W, Vceo=40V, Ic=1.5A, Tj=200℃, hFE=20/60, fT=1MHz, Cc=-pF 6) JAN2N1480(Si-NPN/TO-8) RCA BLACK-COATED CAN || Pcmax=5W, Vceo=55V, Ic=1.5A, Tj=200℃, hFE=20/60, fT=1MHz, Cc=-pF 1) JAN2N1482(Si-NPN/TO-8) - D/C=3/77, #5961-00-995-8625 original MIL-bag || Pcmax=5W, Vceo=55V, Ic=1.5A, Tj=200℃, hFE=35/100, fT=1MHz 1) JANTX2N1485(Si-NPN/TO-8) Rockwell D/C=7748 || Pcmax=25W, Vceo=40V, Ic=3A, Tj=200℃, hFE=35/100, fT=1MHz, Cc=-pF 2) JAN2N1485(Si-NPN/TO-8) RCA D/C=7904, Black-package || Pcmax=25W, Vceo=40V, Ic=3A, Tj=200℃, hFE=35/100, fT=1MHz, Cc=-pF 2) JAN2N1485(Si-NPN/TO-8) - D/C=04/94, #5961-00-081-4816 sealed MIL-bag || Pcmax=25W, Vceo=40V, Ic=3A, Tj=200℃, hFE=35/100, fT=1MHz, Cc=-pF 3) 2N1490(Si-NPN/TO-3) RCA D/C=M8315 || Pcmax=75W, Vcbo=100V, Vceo=100V, Vebo=55V, Ic=6A, Tj=200℃,hFE=25/75, fT=1MHz,- ** BIN-727 ** 220) 2N1493/9024004(Si-NPN/TO-39) Transitron,SCA || Pcmax=500mW, Vceo=100V, Ic=100mA, Tj=175℃, hFE=15/200, fT=130MHz, Cc=10pF 40) 2N1499A(Ge-PNP/TO-9) Motorola D/C=112 || Pcmax=60mW, Vceo=18V, Ic=100mA, Tj=100℃, hFE=30min. fa=100MHz, Cob=3pF 2) 2N1510(Ge-NPN/TO-22) GE || Pcmax=75mW, Vceo=30V, Ic=20mA, Tj=75℃, hFE=8min. fa=-MHz, Cob=-pF 2) 2N1530A(Ge-PNP/TO-3) ElectronicTransistors D/C=314 || Pcmax=106W, Vcbo=60V, Vceo=30V, Vebo=30V, Ic=10A, Tj=110℃, hFE=20/40, fT=0.02MHz,- ** BIN-727 ** 2) 2N1532 Motorola PNP/TO-3 USED LIGHTLY Germanium-Tr Vceo=75V Pc=90W f=-kHz Tjmax=100C 1) 2N1535A(Ge-PNP/TO-3) Motorola original-boxed D/C=5-44 || Pcmax=106W, Vceo=30V, fT=20kHz 2 2) 2N1545(Ge-PNP/TO-3) - USED-lightly D/C=3-44, gold-plated base+black-coating || Pcmax=106W, Vcbo=60V, Vceo=30V, Vebo=30V, Ic=10A, Tj=110℃, hFE=75/150, fT=0.1MHz,- ** BIN-727 ** 1) 2N1545(Ge-PNP/TO-3) - USED-lightly D/C=4-52 || Pcmax=106W, Vcbo=60V, Vceo=30V, Vebo=30V, Ic=10A, Tj=110℃, hFE=75/150, fT=0.1MHz,- ** BIN-727 ** 1) 2N1548 Ge-PNP/TO-3 Motorola D/C=4-12 original-plastic-bag, black-coated can 106W, 100kHz 3) 2N1548 Ge-PNP/TO-3 Motorola D/C=4-52 Au-plated legs 106W, 100kHz 4) 2N1595 GE NOS TO-39like(black coated) gold-lead 1) 2N1602(SCR/TO-64) - D/C=11/75, #5961-00-875-7925 original MIL-bag FSCM=49956 200V/5A 6) 2N1605(Ge-NPN/TO-39) TI D/C=430, Au-plated leads || Pcmax=200mW, Vceo=12V, Ic=100mA, Tj=℃, hFE=40/120, fa=6MHz, Cob=24pF 2) 2N1605(Ge-NPN/TO-39) TI D/C=418 || Pcmax=200mW, Vceo=12V, Ic=100mA, Tj=℃, hFE=40/120, fa=6MHz, Cob=24pF 1) JANTX2N1613A(Si-NPN/TO-5) Raytheon D/C=P8814, Au-plated leads || Pcmax=1W, Vceo=50V, Ic=1A, Tj=175℃, hFE=40/120, fT=60MHz, Cc=25pF 4) 2N1637(Ge-PNP/TO-1) RCA original-bag || Pcmax=80mW, Vcbmax=34V, fa=20MHz, Cob=4pF 2) 2N1671B GE NOS TO-39like(black coated) gold-lead 3) 2N1671B GE black-can, D/C=410 5) 2N1672(Ge-NPN/TO-5) GI || Pcmax=120mA, Vcbo=40V, Ic=200mA, Tj=75℃, fT=15min, Cob=4pF 1) 2N1700(Si-NPN/TO-5) RCA || Pcmax=5W, Vceo=40V, Ic=1A, Tj=200℃, hFE=20/80, fT=40MHz, Cob=20pF 1) 2N1701(Si-NPN/TO-8) RCA || Pcmax=25W, Vceo=40V, Ic=2.5A, Tj=200℃, hFE=20/80, fT=0.1MHz, Cob=-pF 2) 2N1701(Si-NPN/TO-8) - D/C=2/71, Au-plated TO-8 CAN, #5961-809-1875 original MIL-bag || Pcmax=25W, Vceo=40V, Ic=2.5A, Tj=200℃, hFE=20/80, fT=0.1MHz, Cob=-pF 25) 2N1711(Si-NPN/TO-5) Signetics || Pcmax=800mW, Vceo=50V, fT=70MHz, Cob=25pF 1) 2N1711 Fairchild TO-39 D/C=829 , Au-plated leads 2) JAN2N1711(Si-NPN/TO-5) Raytheon D/C=P8131, Au-plated leads || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 35) 2N1711(Si-NPN/TO-5) Motorola D/C=126,152etc || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N1711(Si-NPN/TO-39) Raytheon original MIL-bag || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N1711(Si-NPN/TO-39) Teledyne original MIL-bag || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 1) 2N1711(Si-NPN/TO-39) Motorola original bag, Au-plated leads(one leg is cut at 6mm from base) || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 4) 2N1711(Si-NPN/TO-5) TI D/C=008, Au-plated leads || Pcmax=800mW, Vceo=50V, Ic=600mA, Tj=175℃, hFE=100min, fT=70MHz, Cc=25pF 3) 2N1771A(SCR/TO-64) GE original box Vrrm=50V, Itsm=100A 34) 2N1777 - SCR 400V/8 TO-64 screw **bin409** 25) 2N1854 (Ge-PNP/TO-5) GT Au-plated leads || Pcmax=150mW, Vcbo=-20V, Ic=-100mA, Tj=85℃, hFE=40min, fa=40MHz, Cc=3pF 1) 2N1884(/) Unitrode MIL NSN-5961-00-958-1639, D/C=76 || **BIN-17C** 1) 2N1921(Si-PNP/TO-39) Cryst.Ny MIL NSN-5961-00-051-5308, D/C=86 || Pcmax=250mW, Vceo=-50V, Ic=-50mA, Tj=175℃, hFE=25min, fT=1MHz, Cob=14pF **BIN-17C** 1) 2N1997/GA2844 TI TO-39 D/C=937 , Au-plated leads 5) 2N1997(Ge-PNP/TO-39) TI D/C=410, Au-plated leads || Pcmax=250mW, Vceo=-15V, Ic=-500mA, Tj=100℃, hFE=40/200, fa=3MHz, Cob=20pF 1) 2N2016(Si-NPN/TO-36) RCA USED D/C=WC-Z-3M || Pcmax=150 W, Vcbo=130V, Vceo=65V, Ic=10A, Tj=175℃, hFE=15/50, fT=0.5MHz, - 1) 2N2034(Si-NPN/TO-39) - Au-plated can & leads || Pcmax=5W, Vceo=40V, Ic=3A, Tj=200℃, hFE=20/60, fT=1MHz 1) 2N2102(Si-NPN/TO-5) TI D/C=6734A, Au-plated leads || Pc=1W, Vceo=60V, Icmax=1A, Tj=175℃, hFE=40/120, fT=60MHz, Cc=8pF 1) 2N2108 GE NOS TO-39 gold-lead 1) 2N2146(Ge-PNP/TO-3) - D/C=5-44 || Pcmax=70W, Vcbo=-90V, Vceo=-75V, Vebo=-45V, Ic=-3A, Tj=110℃, hFE=50/100, fae=0.12MHz, ** BIN-727 ** 15) 2N2151 - NPN-power Vceo=100V/30W 160pF TO-111 screw **bin409** 2) 2N2188 #980432 gold-plated short leads 1) 2N2189 TI NOS Ge-PNP TO-1 Vce=-40V fab=102MHz gold-lead code=651 8) 2N2189(Ge-PNP/TO-58) TI D/C=6713, Au-plated leads || Pcmax=125mW, Vceo=-40V, Ic=-30mA, Tj=75℃, hFE=60min, fa=100MHz, Cc=2.5pF 23) 2N2192B(Si-NPN/TO-5) Raytheon D/C=8751 || Pcmax=800mW, Vceo=40V, Ic=1A, Tj=200℃, hFE=100min, fT=50MHz, Cc=20pF 14) 2N2207(Ge-PNP/TO-7) MIL-lot || Pcmax=260mW, Vceo=50V, Ic=50mA, Tj=75℃, hFE=35/370, fT=140MHz, Cob=13pF 20) 2N2217(Si-NPN/TO-5) TI D/C=K-8214 for Military 110CV-5961-99-1182265-1 103) 2N2218A(Si-NPN/TO-5) Motorola D/C=8511 || Pcmax=800mW, Vceo=30V, Ic=800mA, Tj=175℃, hFE=40/120, fT=250MHz, Cc=8pF 0) 2N2219(Si-NPN/TO-39) Motolora NOS Vce=30V Pc=0.8W Tj=200℃ Cob=pF ft=250MHz gold-lead 0) 2N2219A(Si-NPN/TO-39) Motolora NOS Vce=50V Pc=0.8W Tj=200℃ Cob=pF ft=250MHz gold-lead 154) 2N2219(Si-NPN/TO-39) ITT switch Vceo=30V/0.8Q 8pF TO-39 **bin409** 1) 2N2219(Si-NPN/TO-39) Motorola gold-plated leads Vceo=30V/0.8Q 8pF TO-39 **bin409** 2) 2N2219A(Si-NPN/TO-39) NS D/C= 7021A, Au-plated leads 10) JANTX2N2219A(Si-NPN/TO-39) Raytheon gold leads 3) CRP-JAN2N2219A(Si-NPN/TO-5) Raytheon D/C=7430, Au-plated-leads || Pcmax=800mW, Vcbo=60V, Vceo=30V, Vebo=5V, Ic=800mA, Tj=175℃, hFE=100min, fT=250MHz, Cob=8pF 9) 2N2219A(Si-NPN/TO-5) C || Pcmax=800mW, Vcbo=60V, Vceo=30V, Vebo=5V, Ic=800mA, Tj=175℃, hFE=100min, fT=250MHz, Cob=8pF 25) 2N2222(Si-NPN/TO-18) Motorola NOS Vce=30V Cob=8pF ft=250MHz gold-lead (complementary=PNP-2N2907) 100) 2N2222(Si-NPN/TO-18) Motorola 21) CDAQ-JAN2N2222(Si-NPN/TO-18) C D/C=6835, Au-plated-leads || 5) CSF-JAN2N2222(Si-NPN/TO-18) Sprague d/c=6920(3),6929(2) || 2) CCXP-JAN2N2222(Si-NPN/TO-18) C USED? Au-plated-leads || 1) CCXP-JAN2N2222(Si-NPN/TO-18) C USED || 0) 2N2222A(Si-NPN/TO-18) Philips NOS Vce=40V Cob=8pF ft=300MHz NF=4dB(@1kHZ,BW=200Hz,Rs=2kohm) 150) JANTX2N2222A(Si-NPN/TO-18) Motorola NOS Vce=40V Cob=8pF ft=300MHz NF=4dB(@1kHZ,BW=200Hz,Rs=2kohm) 52) JANTX2N2222A(Si-NPN/TO-18) Motorola NOS D/C=K8624 Vce=40V Cob=8pF ft=300MHz NF=4dB(@1kHZ,BW=200Hz,Rs=2kohm) 50) JANTX2N2222A(Si-NPN/TO-18) Motorola 18) CCXP/J2N2222A(Si-NPN/TO-18) NS D/C=7249S Au-plated leads Vceo=40V, fT=300MHz, Cob=8pF 131) 2N2222A(Si-NPN/TO-18) NS D/C=7432, Au-plated leads 197) CRP-JAN2N2222A(Si-NPN/TO-18) Raytheon D/C=7848 5) 2N2270(Si-NPN/TO-5) Raytheon D/C=7724, 7731, 7742 Au-plated leads Vceo=45V, fT=60MHz, Cob=-pF 6) 2N2270(Si-NPN/TO-5) RCA D/C=7619, Au-plated leads || Pcmax=1W, Vceo=45V, Ic=1A, Tj=200℃, hFE=50/200, fT=60MHz, Cc=-pF 3) 2N2323A GE NOS TO-39(Black metal) gold-lead 1) 2N2324 - NOS TO39like 10) 2N2328 Motorola gold-plated leads 7843 Si-controlled rect. Vceo=300V/0.22A TO-5 **bin409** 20) 2N2328 Motorola gold-plated leads 7849 Si-controlled rect. Vceo=300V/0.22A TO-5 **bin409** 3) 2N2331(Si-NPN/TO-18) NJS || Pcmax=500mW, Vceo=20V, Ic=100mA, Tj=200℃, hFE=50min, fT=100MHz, Cob=20pF **bin409** 80) 2N2369(Si-NPN/TO-18) NS || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF F 22) 2N2369(Si-NPN/TO-18) Motorola || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF **bin409** 52) JX2N2369A=JANTX2N2369A(Si-NPN/TO-18) Motorola D/C=K9201 || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF 66) 2N2369A(Si-NPN/TO-18) Motorola || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF **bin409** 1) 2N2369A(Si-NPN/TO-18) ITT || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF **bin409** 10) JANTX2N2369A(Si-NPN/TO-18) Raytheon D/C=7519, gold-plated leads || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF 2) JX2N2369A(Si-NPN/TO-18) Fairchild D/C=8348, Au-plated leads || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF 1) 2N2369A(Si-NPN/TO-18) Fairchild Au-plated leads || Pcmax=360mW, Vceo=15V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF 14) JAN2N2369A(Si-NPN/TO-18) - D/C=7306 || Pcmax=360mW, Vcbo=40V, Vceo=15V, Vebo=4V, Ic=200mA, Tj=175℃, hFE=40/120, fT=500MHz, Cob=4pF 3) 2N2405(Si-NPN/TO-39) Raytheon D/C=7241, Au-plated leads || Pcmax=1W, Vceo=90V, Ic=1A, Tj=200℃, hFE=60/200, fT=50MHz, Cob=15pF 1) 2N2405(Si-NPN/TO-39) Raytheon D/C=7247, Au-plated leads, collector-lead(can)=cut || Pcmax=1W, Vceo=90V, Ic=1A, Tj=200℃, hFE=60/200, fT=50MHz, Cob=15pF 24) 2N2432A(Si-NPN/TO-18) TI gold-plated leads || Pcmax=300mW, Vceo=45V, Ic=100mA, Tj=200℃, hFE=50min, fT=20MHz, Cob=-pF **bin409** 1) 2N2432A(Si-NPN/TO-18) TI D/C=7301A, Au-plated leads || Pcmax=300mW, Vceo=45V, Ic=100mA, Tj=200℃, hFE=50min, fT=20MHz, Cob=-pF 190) 2N2483(Si-NPN/TO-18) - no brand-mark || Pcmax=0.36W, Vceo=60V, Tj=175℃, hFE=30/120, fT=50MHz, Cc=3pF 20) 2N2484(Si-NPN/TO-18) ITT || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 3) 2N2484(Si-NPN/TO-18) Motorola gold-plated leads || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 12) 2N2484(Si-NPN/TO-18) Fairchild gold-plated leads || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 2) 2N2484(Si-NPN/TO-18) Transitron gold-plated leads || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 2) JAN2N2484(Si-NPN/TO-18) - gold-plated leads || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 1) JAN2N2484(Si-NPN/TO-18) - D/C=6/74, #5961-00-051-5975 original MIL-bag || Pcmax=360mW, Vceo=60V, Ic=50mA, Tj=200℃, hFE=100min, fT=60MHz, Cob=6pF **bin409** 2) 2N2484(Si-NPN/TO-18) Raytheon || Pcmax=360mW, Vcbo=60V, Vceo=60V, Vebo=6V, Ic=50mA, Tj=200℃, hFE=100min, fT=50MHz, Cob=3pF 2) 2N2495(Ge-PNP/TO-39) Amperex || Pcmax=125mW, Vcbo=-40V, Ic=-10mA, Tj=100℃, hFE=20min. fa=135MHz, Cob=2pF 1) 2N2511(Si-NPN/TO-18) GE NOS TO-72 gold-lead date=7845 || Pcmax=350mW, Vceo=50V, Ic=50mA, Tj=175℃, hFE=240min, fT=45MHz, Cob=6pF 12) 2N2511(Si-NPN/TO-18) ASI D/C=8223 || Pcmax=350mW, Vceo=50V, Ic=50mA, Tj=175℃, hFE=240min, fT=45MHz, Cob=6pF 3) 2N2605(Si-PNP/TO-46) NS D/C=6627, Au-plated leads, with seat || Pc=400mW, Vceo=-45V, Icmax=-30mA, Tj=200℃, hFE=100min, fT=30MHz, Cc=6pF 10) 2N2606/U146(Pch-JFET/TO-18) I, AMC, Signetics Au-plated leads Vdg=20V, Idss=0.1-0.5mA, gm=0.11mS-min, Ciss=6pF 2) JAN2N2606(Pch-JFET/TO-18) - DC=6/74, #5961-948-5951 original MIL-bags Vdg=20V, Idss=0.1-0.5mA, gm=0.11mS-min, Ciss=6pF 4) 2N2608 S TO-72 D/C=7149LL , Au-plated leads 1) 2N2640 Raytheon TO-39 D/C=7105 , Au-plated leads || Pcmax=600mW, Vceo=45V, Ic=30mA, Tj=200℃, hFE=50/300, fT=40MHz, Cob=5pF 3) 2N2647(Si-PNuni-J/22A-01) Motorola Au-plated leads || Pd=300mW, Ie=50mArms, Ver=30V, Tj=125℃ 3) 2N2647(Si-PNuni-J/22A-01) GE Au-plated leads || Pd=300mW, Ie=50mArms, Ver=30V, Tj=125℃ 33) 2N2857(Si-NPN/TO-72) Fairchild D/C=305etc , Au-plated leads || Pcmax=200mW, Vceo=15V, Ic=40mA, Tj=175℃, hFE=50min, fT=1000MHz, Cob=1pF 6) 2N2857(Si-NPN/TO-72) Motorola D/C=7950 Au-plated leads || Pcmax=200mW, Vceo=15V, Ic=40mA, Tj=175℃, hFE=50min, fT=1000MHz, Cob=1pF 1) 2N2857(Si-NPN/TO-72) Fairchild D/C=305, Au-plated leads || Pcmax=200mW, Vceo=15V, Ic=40mA, Tj=175℃, hFE=50min, fT=1000MHz, Cob=1pF 2) JAN2N2857(Si-NPN/TO-72) - D/C=3-77 #5961-00-926-7294 original MIL-bag || Pcmax=200mW, Vceo=15V, Ic=40mA, Tj=175℃, hFE=50min, fT=1000MHz, Cob=1pF 1) 2N2857(Si-NPN/TO-72-2) RCA Au-platedd leads || Pcmax=200mW, Vcbo=30V, Vceo=15V, Vebo=2V, Ic=40mA, Tj=175℃, hFE=50min, fT=1000MHz, Cob=1pF 2) JAN2N2865(Si-NPN/TO-72) - D/C=5/74 #5961-928-1739 original MIL-bag || Pcmax=200mW, Vceo=13V, Ic=50mA, Tj=175℃, hFE=50min, fT=600MHz, Cob=2.5pF 5) 2N2891(Si-NPN/TO-39) SCA D/C=7652 || Pcmax=800mW, Vceo=80V, Ic=2A, Tj=200℃, hFE=50/350, fT=30MHz, Cob=70pF **bin409** 26) 2N2891(Si-NPN/TO-39) NS D/C=7638 || Pcmax=800mW, Vceo=80V, Ic=2A, Tj=200℃, hFE=50/350, fT=30MHz, Cob=70pF **bin409** 20) 2N2891(Si-NPN/TO-39) NS D/C=7638 || Pcmax=800mW, Vceo=80V, Ic=2A, Tj=200℃, hFE=50/350, fT=30MHz, Cob=70pF **bin409** 3) 2N2891(Si-NPN/TO-39) Fairchild || Pcmax=800mW, Vceo=80V, Ic=2A, Tj=200℃, hFE=50/350, fT=30MHz, Cob=70pF **bin409** 150) 2N2904(Si-PNP/TO-39) Motorola D/C=8439 || Pcmax=600mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=40/120, fT=200MHz, Cob=8pF 10) JAN-2N2904A(Si-PNP/TO-39) Raytheon gold-lead MIL-5ea-bag D/C=8112 packed-date=JAN-1982 5961-99-1180671 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=40/120, fT=200MHz, Cob=8pF 1) JCCAB-2N2904A(Si-PNP/TO-39) Transitron D/C=6945, Au-plated leads || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=40/120, fT=200MHz, Cob=8pF 100) 2N2904A(Si-PNP/TO-39) Telefunken D/C=644 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=40/120, fT=200MHz, Cob=8pF 102) JAN-2N2905(Si-PNP/TO-39) Motorola || Pcmax=600mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 397) 2N2905(Si-PNP/TO-39) ITT || Pcmax=600mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF **bin409** 1) 2N2905(Si-PNP/TO-39) Motorola || Pcmax=600mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF **bin409** 4) 2N2905(Si-PNP/TO-5) Motorola D/C=452 2) JAN2N2905A(Si-PNP/TO-39) Raytheon D/C=7324 , Au-plated leads || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) JAN2N2905A(Si-PNP/TO-39) Motorola D/C= 212, Au-plated leads || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 10) JAN-2N2905A(Si-PNP/TO-39) TI gold-lead, MIL-1ea-bag date=Dec-1980 made in Korea 110CV(5961)-99-1407399 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 99) J(JAN)-2N2905A(Si-PNP/TO-39) Motorola NOS D/C=9118 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 50) CG-2N2905A(Si-PNP/TO-39) Motorola NOS D/C=9527 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 91) CG-2N2905A(Si-PNP/TO-39) Motorola NOS D/C=9718 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 294) CG-2N2905A(Si-PNP/TO-39) Motorola NOS D/C=971 || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF9 12) CGOJAN2N2905A(Si-PNP/TO-39) TI D/C=6745A, Au-plated leads || Pcmax=600mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) 2N2905A(Si-PNP/TO-39) Motorola D/C=412, Au-plated leads, original-bag 1) 2N2905A(Si-PNP/TO-39) Motorola lightly-USED D/C=412, Au-plated leads 2) 2N2905A(Si-PNP/TO-39) Raytheon D/C=7416, Au-plated leads 9) 2N2905A(Si-PNP/TO-39) Transitron D/C=3081, Au-plated leads 4) 2N2905A(Si-PNP/TO-5) Raytheon D/C=7750, Au-plated leads || Pcmax=600mW, Vcbo=-60V, Vceo=-60V, Vebo=-5V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 90) 2N2907(Si-PNP/TO-18) Motorola || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 200) JANTX2N2907(Si-PNP/TO-18) - || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 102) 2N2907(Si-PNP/TO-18) Motorola D/C=8452, 439, 426 etc 10mm-leads || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 100) 2N2907(Si-PNP/TO-18) Motorola || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 100) 2N2907(Si-PNP/TO-18) Motorola || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) JTXCCXP2N2907(Si-PNP/TO-18) NS (=JANTX2N2907) D/C=7011, Au-plated leads || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) JCCXP2N2907(Si-PNP/TO-18) NS (=JAN2N2907) D/C=6748, Au-plated leads || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) CGO JAN2N2907(Si-PNP/TO-18) TI D/C=6906A, Au-plated leads || Pcmax=400mW, Vceo=-40V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 0) JAN-2N2907A(Si-PNP/TO-18) Motorola || Pcmax=400mW, Vceo=-60V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 6) CDAQ-JAN2N2907A(Si-PNP/TO-18) - USED D/C=6850 || Pcmax=400mW, Vcbo=-60V, Vceo=-60V, Vebo=-5V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 7) CCXP-JAN2N2907A(Si-PNP/TO-18) NS NEW D/C=6824 || Pcmax=400mW, Vcbo=-60V, Vceo=-60V, Vebo=-5V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 7) CCXP-JAN2N2907A(Si-PNP/TO-18) NS USED D/C=6824 || Pcmax=400mW, Vcbo=-60V, Vceo=-60V, Vebo=-5V, Ic=-600mA, Tj=200℃, hFE=100min, fT=200MHz, Cob=8pF 1) JANTX2N2920(dual-Si-NPN/TO-77) Raytheon MIL, D/C=85 || Pcmax=500mW, Vceo=60V, Ic=30mA, Tj=200℃, hFE=150min, fT=60MHz, Cob=4pF **BIN-17C** 1) 2N2924(Si-NPN/TO-98) - || Pcmax=360mW, Vceo=25V, Ic=100mA, Tjmax=125℃, hFE=100min, fT=100MHz, Cob=10pF 2) 2N2945(Si-PNP/TO-46) TI Thin&Tiny-metal-can gold-leads || Pcmax=500mW, Vceo=-20V, Ic=-100mA, Tjmax=100℃, hFE=80/180, fT=5MHz, Cob=10pF 10) JANTX2N3013(Si-NPN/TO-18) Motorola || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF **bin409** 10) 2N3013(Si-NPN/TO-18) TI || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF **bin409** 4) 2N3013(Si-NPN/TO-18) Fairchild || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF **bin409** 1) JANTX2N3013(Si-NPN/TO-18) Motorola || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF **bin409** 8) JANTX2N3013(Si-NPN/TO-18) Fairchild || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF **bin409** 154) 7851-1 337(=2N3013)(Si-NPN/TO-18) Motorola || Pcmax=0.36W, Vceo=15V, hFE=30/120, fT=350MHz, Cc=5pF 34) 2N3015(Si-NPN/TO-39) NS D/C=8419 || Pcmax=800mW, Vceo=30V, Ic=500mA, Tjmax=175℃, hFE=30/120, fT=250MHz, Cob=-pF **bin409** 25) 2N3019(Si-NPN/TO-39) ST-Micro D/C=98809 : Pcmax=800mW, Vceo=80V, Ic=1A, Tj=190℃, hFE=100min, fT=100MHz, Cob=12pF 60) 2N3019(Si-NPN/TO-39) Motorola D/C=652, Au-plated leads || Pcmax=800mW, Vceo=80V, Ic=1A, Tj=190℃, hFE=100min, fT=100MHz, Cob=12pF 2) JANTXV2N3019S(Si-NPN/TO-39) Motorola D/C=8122A : Pcmax=800mW, Vceo=80V, Ic=1A, Tj=190℃, hFE=100min, fT=100MHz, Cob=12pF 1) 2N3019(Si-NPN/TO-39) Motorola D/C=95 || Pcmax=800mW, Vceo=80V, Ic=1A, Tj=190℃, hFE=100min, fT=100MHz, Cob=10pF **BIN-17C** 1) 2N3019(Si-NPN/TO-5) Raytheon D/C=7403, Au-plated leads || Pcmax=800mW, Vcbo=140V, Vceo=80V, Vebo=7V, Ic=1A, Tj=190℃, hFE=100min, fT=100MHz, Cob=12pF 1) JX2N3029(SCR/TO-18) Unitrode D/C=K8242, Au-plated leads 98) 2N3053(Si-NPN/TO-39) MicroSemi : Pcmax=0.8W, Vceo=40V, Ic=700mA, Tjmax=200℃, hFE=50min, fT=100MHz, Cob=15pF 104) 2N3053A(Si-NPN/TO-39) Micro-Semi : Pcmax=0.8W, Vceo=40V, Ic=700mA, Tjmax=200℃, hFE=50min, fT=100MHz, Cob=15pF 14) 2N3054(Si-NPN/TO-66) RCA || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 8) 2N3054(Si-NPN/TO-66) De date=9601 || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 1) 2N3054(Si-NPN/TO-66) RCA D/C=Ahd 8A, discolored cap&frange || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 1) 2N3054(Si-NPN/TO-66) RCA D/C=7301 || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 1) 2N3054(Si-NPN/TO-66) RCA || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 1) 2N3054(Si-NPN/TO-66) RCA USED || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 1) 2N3054(Si-NPN/TO-66) RCA D/C=7301 || Pcmax=25W, Vceo=50V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz, Cob=-pF 0) 2N3054A(Si-NPN/TO-66) Motorola || Pcmax=25W, Vceo=55V, Ic=4A, Tj=200℃, hFE=25/150, fT=3MHz, Cob=80pF 3) 2N3054(Si-NPN/TO-66) IPS || Pcmax=25W, Vcbo=60V, Vceo=50V, Vebo=7V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz,- ** BIN-727 ** 1) 2N3054(Si-NPN/TO-66) IPS USED || Pcmax=25W, Vcbo=60V, Vceo=50V, Vebo=7V, Ic=4A, Tj=200℃, hFE=25/150, fT=0.8MHz,- ** BIN-727 ** 1) 2N3055(Si-NPN/TO-3) Mospec || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 4) 2N3055(Si-NPN/TO-3) Motorola D/C=8127, Aluminum can || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 12) 2N3055(Si-NPN/TO-3) Motorola D/C=8226, Aluminum can + Aluminum base || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 1) 2N3055(Si-NPN/TO-3) PowerPhisics date=7118 || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 2) 2N3055(Si-NPN/TO-3) RCA date=8332 || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 2) 2N3055(Si-NPN/TO-3) NS lot=510 || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 4) 2N3055(Si-NPN/TO-3) Rockwell D/C=8401 || Pcmax=115W, Vceo=60V, Ic=15A, Tj=200℃, hFE=20/70, fT=2.5MHz, Cob=150pF(Motorola spec) 6) 2N3055(Si-NPN/TO-3) ASI D/C=8620, Alcan-Albase || Pcmax=117W, Vcbo=100V, Vceo=70V, Vebo=7V, Ic=15A, Tj=200℃, hFE=20/70, fT=0.2MHz,- ** BIN-727 ** 1) 2N3055(Si-NPN/TO-3) Motorola D/C=8426 || Pcmax=117W, Vcbo=100V, Vceo=70V, Vebo=7V, Ic=15A, Tj=200℃, hFE=20/70, fT=0.2MHz,- ** BIN-727 ** 1) 2N3055(Si-NPN/TO-3) Solitron D/C=8247 || Pcmax=117W, Vcbo=100V, Vceo=70V, Vebo=7V, Ic=15A, Tj=200℃, hFE=20/70, fT=0.2MHz,- ** BIN-727 ** 11) 2N3108(Si-NPN/TO-5) Fairchild D/C=919, Au-plated leads || Pcmax=800mW, Vceo=60V, fT=60MHz, Cob=25pF 37) 2N3114(Si-NPN/TO-39) Motorola D/C=9008 for Military 110CV-1163028 || Pcmax=800mW, Vceo=150V, Ic=200mA, Tj=200℃, hFE=30/120, fT=40MHz, Cob=9pF 50) 2N3117(Si-NPN/TO-18) Philips D/C=527, Au-plated leads || Pcmax=360mW, Vceo=60V, fT=60MHz, Cob=4.5pF 2) 2N3137(Si-NPN/TO-5) Fairchild D/C=126,918, Au-plated leads || Pcmax=800mW, Vcbo=40V, Vceo=20V, Vebo=4V, Ic=150mA, Tj=200℃, hFE=20/120, fT=500MHz, Cob=3.5pF 10) 2N3209(Si-PNP/TO-18) - gold-plated leads || Pcmax=360mW, Vceo=-20V, Ic=200mA, Tjmax=175℃, hFE=30/120, fT=400MHz, Cob=5pF **bin409** 5) 2N3236(Si-NPN/TO-3) Solitron MIL-NSN-5961-00-914-3479, D/C=8742 || Pcmax=150W, Vceo=90V, Ic=15A, Tj=200℃, hFE=18/55, fT=1MHz, Cob=-pF **BIN-17C** 1) 2N3236(Si-NPN/TO-3) Solitron MIL-NSN-5961-00-914-3479, D/C=8330 || Pcmax=150W, Vceo=90V, Ic=15A, Tj=200℃, hFE=18/55, fT=1MHz, Cob=-pF **BIN-17C** 13) 2N3250(Si-PNP/TO-18) Motorola D/C=352, made in Korea || Pcmax=360mW, Vceo=-40V, Ic=-200mA, Tj=180℃, hFE=50/150, fT=250MHz, Cob=6pF 238) CGG JAN2N3250A(Si-PNP/TO-18) Motorola D/C=6904L, Au-plated leads || Pcmax=360mW, Vceo=-60V, Ic=-200mA, Tj=200℃, hFE=50/150, fT=250MHz, Cob=6pF 10) JANTX2N3251A(PNP/TO-18) Raytheon D/C=7831 || || Pcmax=360mW, Vceo=-60V, Ic=-200mA, Tj=200℃, hFE=100min, fT=300MHz, Cob=6pF 10) 2x 2N3252 MIL(Si-NPN/TO-77) TADI DUAL-hybrid-6leads, D/C=70th || Pcmax=1W, Vceo=30V, Ic=1A, Tj=175℃, hFE=30/90, fT=200MHz, Cob=12pF 7) 2N3253(Si-NPN/TO-39) Motorola CGG NPN-switch || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF **bin409** 1) 2N3253(Si-NPN/TO-39) Motorola gold-plated leads || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF **bin409** 46) 2N3253(Si-NPN/TO-39) Raytheon D/C=8103, Au-plated leads || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF 55) 2N3253(Si-NPN/TO-39) Raytheon D/C=8103, Au-plated leads || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF 4) 2N3253(Si-NPN/TO-39) Signetics D/C=, Au-plated leads || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF 2) 2N3253(Si-NPN/TO-39) Signetics || Pcmax=1W, Vceo=40V, Ic=1A, Tj=175℃, hFE=25min, fT=175MHz, Cc=12pF 3) 2N3300(Si-NPN/TO-5) Motorola D/C=512, Au-plated leads || Pcmax=600mW, Vceo=30V, Ic=500mA, Tj=-. hFE=100min, fT=250MHz, Cc=8pF 66) 2N3323(Ge-PNP/TO-18) Signetics D/C=8131 etc, Au-plated leads || Pcmax=150mW, Vcbo=-35V, Vces=-35V, Ic=-100mA, Tjmax=100℃, hFE=30/200, fa=200MHzmin/600MHzmax, Cob=3pFmax 8) 2N3323(Ge-PNP/TO-18) Signetics D/C=8142 || Pcmax=150mW, Vcbo=-35V, Vces=-35V, Ic=-100mA, Tjmax=100℃, hFE=30/200, fa=200MHzmin/600MHzmax, Cob=3pFmax 46) 2N3323(Ge-PNP/TO-18) NJS D/C=8449 || Pcmax=150mW, Vcbo=-35V, Vces=-35V, Ic=-100mA, Tjmax=100℃, hFE=30/200, fa=200MHzmin/600MHzmax, Cob=3pFmax 0) 2N3331 - Pch-jFET 20V/5-15mA 2-4mS **bin409** 7) 2N3350(Si-dualPNP/TO-5) TI D/C=7432A, Au-plated leads || Pcmax=600mW, Vceo=-45V, fT=60MHz, Cob=6pF 13) 2N3350(Si-dualPNP/TO-5) Raytheon D/C=7443, Au-plated leads || Pcmax=600mW, Vceo=-45V, fT=60MHz, Cob=6pF 16) 2N3405(Si-NPN/X28-1) GE (Si-NPN/X28-1) Al-heat-sink-jacket || Pcmax=560mW, Vcbo=50V, Vceo=50V, Vebo=5V, Ic=500mA, Tj=150℃,hFE=180min,-,- ** BIN-727 ** 1) 2N3415(Si-NPN/TO-98-1) - NOS Pcmax=360mW, Vceo=25V, Tj=175℃, fT=-MHz, Cob=-pF 6) 2N3427(Ge-PNP/TO-5) Motorola ORIGINAL-PLASTIC BAG, Au plated leads || Pcmax=200mW, Vceo=-30V, fa=4MHz, Cob=20pF 6) 2N3439(Si-NPN/TO-39) Motorola D/C=426 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 16) JANTX2N3439(Si-NPN/TO-39) RCA D/C=M8516 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 23) JANTX2N3439(Si-NPN/TO-39) RCA D/C=M8545 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 25) JANTX2N3439(Si-NPN/TO-39) RCA D/C=M8606 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 15) JANTX2N3439(Si-NPN/TO-39) RCA D/C=M8614 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 13) CGGJX2N3439(=JANTX2N3439)(Si-NPN/TO-39) Motorola D/C=K8602 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 7) CGGJX2N3439(=JANTX2N3439)(Si-NPN/TO-39) Motorola D/C=K8620 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 4) CGGJX2N3439(=JANTX2N3439)(Si-NPN/TO-39) Motorola D/C=K8638 || Pcmax=1W, Vceo=350V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5416) **bin409** 12) 2N3440(Si-NPN/TO-39) Motorola D/C=152 || Pcmax=1W, Vceo=250V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5415) **bin409** 4) 2N3440(Si-NPN/TO-39) RCA original-boxed || Pcmax=1W, Vceo=250V, Ic=1A, Tjmax=200℃, hFE=40/140, fT=15MHz, Cob=10pF (complementary=2N5415) 19) 2N3441(Si-NPN/TO-66) RCA || Pcmax=25W, Vceo=140V, fT=200kHz, Cob=-pF 17) 2N3441(Si-NPN/TO-66) RCA black jacket, removed from new MIL power modules || Pcmax=25W, Vceo=140V, fT=200kHz, Cob=-pF 1) CRC JAN2N3441(Si-NPN/TO-66) RCA D/C=N8313, black-can-top || Pcmax=25W, Vcbo=160V, Vceo=140V, Vebo=7V, Ic=3A, Tj=200℃, hFE=25/100, fT=0.2MHz, - ** BIN-727 ** 4) 2N3442(Si-NPN/TO-3) Rockwell D/C=A8345 || Pcmax=117W, Vceo=140V, Ic=10A, Tjmax=200℃, hFE=20/70, fT=0.5MHz, Cob=-pF 2) CGG-JAN2N3444(Si-NPN/TO-5) Motorola D/C=7035H , Au-plated leads || Pcmax=1W, Vceo=60V, fT=100MHz, Cob=12pF 20) 2N3467(Si-PNP/TO-39) Raytheon D/C-8516 || Pc=1W, Vceo=-40V, Ic=-1A, Tj=200℃, hFE=40/120, fT=175MHz, Cob=25pF 85) 2N3467(Si-PNP/TO-39) Fairchild D/C-311, 348 || Pc=1W, Vceo=-40V, Ic=-1A, Tj=200℃, hFE=40/120, fT=175MHz, Cob=25pF 301) 2N3467(Si-PNP/TO-39) NS D/C=8406 || Pc=1W, Vceo=-40V, Ic=-1A, Tj=200℃, hFE=40/120, fT=175MHz, Cob=25pF 800) 2N3494(Si-PNP/TO-39) Motorola D/C=K8829, K8822 || Pcmax=600mW, Vceo=-80V, Ic=-100mA, Tj=200℃, hFE=40min, fT=200MHz, Cc=7pF 10) 2N3494(Si-PNP/TO-5) Fairchild D/C=135 || Pcmax=600mW, Vcbo=-80V, Vceo=-80V, Vebo=-4V, Ic=-100mA, Tj=200℃, hFE=40min, fT=200MHz, Cob=7pF 1) 2N3494(Si-PNP/TO-5) Motorola ややサビあり || Pcmax=600mW, Vcbo=-80V, Vceo=-80V, Vebo=-4V, Ic=-100mA, Tj=200℃, hFE=40min, fT=200MHz, Cob=7pF 2) 2N3499(Si-NPN/TO-39) Motorola gold-plated leads || Pcmax=1W, Vceo=100V, Ic=500mA, Tj=200℃, hFE=100min, fT=150MHz, Cob=8pF **bin409** 26) 2N3499(Si-NPN/TO-39) NS gold-plated leads D/C=7723 || Pcmax=1W, Vceo=100V, Ic=500mA, Tj=200℃, hFE=100min, fT=150MHz, Cob=8pF **bin409** 33) 2N3500(Si-NPN/TO-39) NJS D/C=9916 for Military || Pcmax=1W, Vceo=150V, Ic=300mA, Tj=200℃, hFE=40/120, fT=150MHz, Cob=8pF 1) JANTX2N3501(Si-NPN/TO-5) Motorola for military || Pcmax=1W, Vceo=150V, Ic=600mA, Tj=180℃, hFE=30/100, fT=150MHz, Cob=8pF 7) JANTX2N3501(Si-NPN/TO-5) Raytheon for military || Pcmax=1W, Vceo=150V, Ic=600mA, Tj=180℃, hFE=30/100, fT=150MHz, Cob=8pF 21) JANTX2N3501L(Si-NPN/TO-39) Central D/C=8905,Au-plated can || Pcmax=1W, Vceo=150V, Ic=600mA, Tj=180℃, hFE=30/100, fT=150MHz, Cob=8pF 11) 2N3503 (Si-PNP/TO-5) TI D/C=7828 for Military 110CV-5961-99-4689410 || Pcmax=0.7W, Vceo=-60V,fT=200MHz, Cob=8pF 15) 2N3503 (Si-PNP/TO-5) SGS lot=F 2748 Au-plated leads, for Military 110CV-39366/4689410 || Pcmax=0.7W, Vceo=-60V,fT=200MHz, Cob=8pF 24) 2N3504(Si-PNP/TO-18) GTC || Pcmax=400mW, Vceo=-45V, Ic=-600mA, Tj=180℃, hFE=115min, fT=200MHz, Cc=8pF 31) 2N3504(Si-PNP/TO-18) NS D/C=E8433 Au-plated leads || Pcmax=400mW, Vceo=-45V, Ic=-600mA, Tj=180℃, hFE=115min, fT=200MHz, Cc=8pF 44) 2N3504(Si-PNP/TO-18) Signetics Au-plated leads || Pcmax=400mW, Vceo=-45V, Ic=-600mA, Tj=180℃, hFE=115min, fT=200MHz, Cc=8pF 93) 13-0079(=2N3506)(Si-NPN/TO-39) Motorola D/C=636, Au-plated leads || Pcmax=1W, Vceo=40V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHz, Cc=40pF 1) 2N3507(Si-NPN/TO-39) Motorola gold-plated leads || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 1) 2N3507(Si-NPN/TO-39) Motorola gold-plated leads D/C=839 || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 5) 2N3507(Si-NPN/TO-39) Motorola gold-plated leads D/C=926 || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 15) JANTX2N3507(Si-NPN/TO-39) - D/C=8531 || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 4) JANTX2N3507(Si-NPN/TO-39) Motorola gold-plated leads D/C=7431E || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 12) CGGJ-2N3507(Si-NPN/TO-39) Motorola gold-plated leads D/C=8302 || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 15) CGGJ-2N3507(Si-NPN/TO-39) Motorola gold-plated leads D/C=K8602 || Pcmax=1W, Vceo=50V, Ic=3A, Tj=200℃, hFE=30/150, fT=60MHzmin, Cob=40pFmax **bin409** 11) 2N3526(Si-NPN/TO-5) SCA || Pcmax=800mW, Vceo=120V, fT=40MHz, Cob=12pF 104) 2N3564(Si-NPN/TO-106) Signetics Au-plated leads Pcmax=200mW, Vceo=15V, fT=400MHz, Cob=3.5pF 1) 2N3565(Si-NPN/TO-106-1) - gold-plated leads || Pcmax=200mW, Vceo=25V, fT=40MHz, Cob=-pF 1) 2N3567(Si-NPN/TO-106-1) GE NOS black-jacket gold-leads || Pcmax=300mW, Vceo=60V, fT=60MHz, Cob=20pF 2) 2N3568(Si-NPN/TO-106) Fairchild || Pcmax=300mW, Vceo=60V, Ic=200mA, Tj=125℃, hFE=40/120. fa=60MHz, Cob=20pF 28) 2N3569(Si-NPN/TO-106) - Au-plated leads || Pcmax=300mW, Vceo=60V, fT=60MHz, Cob=20pF 9) 2N3571(Si-NPN/TO-72) SCA D/C=8407, Au-plated leads || Pcmax=200mW, Vceo=15V, Ic=50mA, Tj=200℃, hFE=20/200, fT=1200MHz, Cob=0.8pF 16) 2N3571(Si-NPN/TO-72) STI D/C=8401 || Pcmax=200mW, Vceo=15V, Ic=50mA, Tj=200℃, hFE=20/200, fT=1200MHz, Cob=0.8pF 52) 2N3576(Si-PNP/TO-18) NS D/C=7814, 7715 etc || Pcmax=360mW, Vceo=-15V, Ic=-200mA, Tj=200℃, hFE=40/120, fT=400MHz, Cob=4.5pF 2) 2N3583(Si-NPN/TO-66) Motorola D/C=8930 || Pcmax=35W, Vceo=175V, fT=10MHz, Cob=120pF **bin409** 1) 2N3583(Si-NPN/TO-66) RCA lot/D/C=CNP 0E || Pcmax=35W, Vceo=175V, fT=10MHz, Cob=120pF 1) 2N3583(Si-NPN/TO-66) Motorola MIL-NSN-5961-00-479-1383, D/C=83,86 || Pcmax=35W, Vceo=175V, Ic=1A, Tj=200℃, hFE=40/200, fT=10MHz, Cob=-pF **BIN-17C** 5) 2N3583(Si-NPN/TO-66) SiliconTransistorCo. MIL-NSN-5961-00-934-2999, D/C=83 || Pcmax=35W, Vceo=175V, Ic=1A, Tj=200℃, hFE=40/200, fT=10MHz, Cob=-pF **BIN-17C** 16) 2N3584(Si-NPN/TO-66) GE/RCA(double-branded) D/C=8914 || Pcmax=35W, Vceo=250V, fT=10MHz, Cob=120pF **bin409** 1) CRC-JAN2N3584(Si-NPN/TO-66) RCA TO-66 D/C=7332, Black-jacket || Pcmax=35W, Vceo=250V, fT=10MHz, Cob=120pF 6) JAN2N3584(Si-NPN/TO-66) RCA 17) 2N3585(Si-NPN/TO-66) RCA black jacket, removed from new MIL power modules || Pcmax=35W, Vceo=300V, Ic=2A, Tj=200℃, hFE=25/100, fT=10MHz, Cob=-pF 1) 2N3613(Ge-PNP/TO-3) Motorola date=6-12 || Pcmax=77W, Vceo=-25V, Tj=110℃, fa=300kHz, Cob=-pF 6) 2N3634(Si-PNP/TO-39) Motorola NOS Au-plated leads || Pcmax=1W, Vce=-140V 1A, fT-150MHz, Cob=10pF 7) CGG-JAN2N3634(Si-PNP/TO-39) Motorola D/C=7150L , Au-plated leads || Pcmax=1W, Vce=-140V 1A, fT-150MHz, Cob=10pF 3) 2N3634(Si-PNP/TO-5) Motorola D/C=744,744,912 Au-plated leads || Pcmax=1W, Vcbo=-140V, Vceo=-140V, Vebo=-5V, Ic=-1A, Tj=200℃, hFE=50/150, fT=150MHz, Cob=10pF 14) JAN2N3635(Si-PNP/TO-39) - || Pcmax=1W, Vceo=50V, Ic=1.5A, Tj=200℃, hFE=20/80, fT=250MHz, Cob=9pF 1) JTXV2N3635L(Si-PNP/TO-39) Motorola D/C=8320, Au-plated leads || Pcmax=1W, Vceo=50V, Ic=1.5A, Tj=200℃, hFE=20/80, fT=250MHz, Cob=9pF 86) 2N3638(Si-PNP/TO-106) NS Au-plated leads || Pcmax=300mW, Vceo=-25V, Ic=-500mA, Tjmax=125℃, hFE=30min, fT=100MHz, Cob=20pF 3) 2N3638(Si-PNP/TO-106) Fairchild Au-plated leads || Pcmax=300mW, Vceo=-25V, Ic=-500mA, Tjmax=125℃, hFE=30min, fT=100MHz, Cob=20pF 1) 2N3638(Si-PNP/TO-106) Fairchild formed-short leads(Au-plated) || Pcmax=300mW, Vceo=-25V, Ic=-500mA, Tjmax=125℃, hFE=30min, fT=100MHz, Cob=20pF 1) 2N3640(Si-PNP/TO-106) Fairchild short leads(Au-plated) || Pcmax=200mW, Vceo=-12V, Ic=-500mA, Tjmax=125℃, hFE=30/120, fT=500MHz, Cob=3.5pF 1) 2N3641(Si-NPN/TO-106) Fairchild || Pcmax=350mW, Vceo=30V, Ic=500mA, Tjmax=125℃, hFE=40/120, fT=250MHz, Cob=8pF 2) 2N3642(Si-NPN/TO-106) Fairchild formed-short leads(Au-plated) || Pcmax=350mW, Vceo=45V, Ic=500mA, Tjmax=125℃, hFE=40/120, fT=150MHz, Cob=8pF 47) 2N3643(Si-NPN/TO-106) - Au-plated leads || Pcmax=350mW, Vceo=30V, Ic=500mA, Tjmax=125℃, hFE=100min, fT=250MHz, Cob=8pF 2) 2N3643(Si-NPN/TO-106) Fairchild formed-short leads(Au-plated) || Pcmax=350mW, Vceo=30V, Ic=500mA, Tjmax=125℃, hFE=100min, fT=250MHz, Cob=8pF 0) 2N3644(Si-PNP/TO-106) Fairchild || Pcmax=350mW, Vceo=-45V, Ic=-500mA, Tj=125℃, hFE=115min. fa=250MHz, Cob=8pF 2) 2N3645(Si-PNP/TO-106) Fairchild || Pcmax=300mW, Vceo=-60V, Ic=-500mA, Tj=125℃, hFE=115min. fa=200MHz, Cob=8pF 2) 2N3646(Si-NPN/TO-106) Fairchild || Pcmax=200mW, Vceo=10V, Ic=500mA, Tj=125℃, hFE=30/120. fa=350MHz, Cob=5pF 1) 2N3646(Si-NPN/TO-106) Fairchild formed-short leads(Au-plated) || Pcmax=200mW, Vceo=10V, Ic=500mA, Tj=125℃, hFE=30/120. fa=350MHz, Cob=5pF 52) 2N3689(Si-NPN/TO-106) NJS Au-plated leads || Pcmax=200mW, Vceo=40V, fT=400MHz, Cob=1.6pF 208) 2N3700(Si-NPN/TO-18) NS gold-plated leads || Pcmax=500mW, Vceo=80V, Ic=1A, Tjmax=200℃, hFE=100min, fT=100MHz, Cob=12pF **bin409** 2) JANTX2N3700(Si-NPN/TO-18) Motorola gold-plated leads || Pcmax=500mW, Vceo=80V, Ic=1A, Tjmax=200℃, hFE=100min, fT=100MHz, Cob=12pF **bin409** 2) JANTX2N3700(Si-NPN/TO-18) NS gold-plated leads || Pcmax=500mW, Vceo=80V, Ic=1A, Tjmax=200℃, hFE=100min, fT=100MHz, Cob=12pF **bin409** 50) 2N3700 (Si-NPN/TO-18) Motorola D/C=9736 for Military 110CV-1184632 (10-bag x 5pcs ) || Pcmax=500mW, Vceo=80V, Ic=1A, Tjmax=200℃, hFE=100min, fT=100MHz, Cob=12pF 39) 2N3704(Si-NPN/TO-92) NS D/C=513, 517 etc || Pcmax=360mW, Vceo=30V, Ic=800mA, Tj=150℃, hFE=300min, fT=100MHz, Cob=12pF 0) 2N3713(Si-NPN/TO-3) Motorola || Pcmax=150W, Vceo=60V, Ic=10A, Tjmax=200℃, hFE=25/90, fT=4MHz, Cob=-pF 0) 2N3714(Si-NPN/TO-3) Motorola || Pcmax=150W, Vceo=80V, Ic=10A, Tjmax=200℃, hFE=25/90, fT=4MHz, Cob=-pF 5) CGGJAN2N3715(Si-NPN/TO-3) Motorola D/C=W8334 || Pcmax=150W, Vceo=60V, Ic=10A, Tjmax=200℃, hFE=50/150, fT=4MHz, Cob=500pF 3) 2N3715(Si-NPN/TO-3) TI D/C=A8051 || Pcmax=150W, Vcbo=80V, Vceo=60V, Vebo=7V, Ic=10A, Tj=200℃,hFE=50/150, fT=4MHz, Cob=500pF ** BIN-727 ** 0) 2N3716(Si-NPN/TO-3) Motorola || Pcmax=150W, Vceo=80V, Ic=10A, Tjmax=200℃, hFE=50/150, fT=4MHz, Cob=500pF 1) 2N3716(Si-NPN/TO-3) Motorola D/C=7439, Alcan-Albase アルミサビあり || Pcmax=150W, Vcbo=100V, Vceo=80V, Vebo=7V, Ic=10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=500pF 2) 2N3722(Si-NPN/TO-39) SCA D/C=7533, Au-plated leads || Pcmax=800mW, Vceo=60V, Ic=500mA, Tjmax=200℃, hFE=40/150, fT=300MHz, Cob=10pF **bin409** 83) 2N3722(Si-NPN/TO-39) Raytheon D/C=8101 || Pcmax=800mW, Vceo=60V, Ic=500mA, Tjmax=200℃, hFE=40/150, fT=300MHz, Cob=10pF **bin409** 3) 2N3722(Si-NPN/TO-39) Fairchild D/C=033(2),913(1) , Au-plated leads || Pcmax=800mW, Vceo=60V, Ic=500mA, Tjmax=200℃, hFE=40/150, fT=300MHz, Cob=10pF 3) 2N3723(Si-NPN/TO-5) Fairchild gold-plated leads || Pcmax=800mW, Vceo=80V, Ic=500mA, Tjmax=200℃, hFE=40/150, fT=300MHz, Cob=9pF **bin409** 52) TN2012(=2N3723)(Si-NPN/TO-5) Fairchild D/C=434, Au-plated leads || Pcmax=800mW, Vceo=80V, Ic=500mA, Tjmax=200℃, hFE=40/150, fT=300MHz, Cob=9pF 5) 2N3725(Si-NPN/TO-39) Motorola gold-plated leads || Pcmax=800mW, Vceo=50V, Ic=500mA, Tjmax=175℃, hFE=60/150, fT=300MHz, Cob=12pF **bin409** 5) 2N3725(Si-NPN/TO-39) TI gold-plated leads || Pcmax=800mW, Vceo=50V, Ic=500mA, Tjmax=175℃, hFE=60/150, fT=300MHz, Cob=12pF **bin409** 19) 2N3725(Si-NPN/TO-39) SGS || Pcmax=800mW, Vceo=50V, Ic=500mA, Tjmax=175℃, hFE=60/150, fT=300MHz, Cob=12pF **bin409** 9) 2N3725(Si-NPN/TO-39) Motorola D/C=126 || Pcmax=800mW, Vceo=50V, Ic=500mA, Tjmax=175℃, hFE=60/150, fT=300MHz, Cob=12pF 16) 2N3725(Si-NPN/TO-39) TI D/C=7830A || Pcmax=800mW, Vceo=50V, Ic=500mA, Tjmax=175℃, hFE=60/150, fT=300MHz, Cob=12pF 2) 2N3733(Si-NPN/TO-62) RCA original-boxed || Pcmax=23W, Vceo=40V, Ic=3A, Tjmax=200℃, hFE=5min, fT=400MHz, Cob=20pF 7) 2N3734(Si-NPN/TO-39) Raytheon D/C=7318, Au-plated leads || Pcmax=1W, Vceo=30V, Ic=1.5A, Tjmax=175℃, hFE=30/120, fT=300MHz, Cob=9pF 1) 2N3734(Si-NPN/TO-39) Raytheon D/C=7318, Au-plated leads || Pcmax=1W, Vceo=30V, Ic=1.5A, Tjmax=175℃, hFE=30/120, fT=300MHz, Cob=9pF 17) 2N3735(Si-NPN/TO-5) Motorola gold-plated leads || Pcmax=1W, Vceo=50V, Ic=1.5A, Tjmax=200℃, hFE=20/80, fT=250MHz, Cob=9pF **bin409** 20) 2N3735(Si-NPN/TO-5) Motorola || Pcmax=1W, Vceo=50V, Ic=1.5A, Tjmax=200℃, hFE=20/80, fT=250MHz, Cob=9pF **bin409** 1) 2N3735(Si-NPN/TO-5) Motorola Au-plated leads || Pcmax=1W, Vceo=50V, Ic=1.5A, Tjmax=200℃, hFE=20/80, fT=250MHz, Cob=9pF 50) 2N3738(Si-NPN/TO-66) SCA D/C=7408 || Pcmax=20W, Vceo=225V, Ic=3A, Tjmax=175℃, hFE=40/200, fT=10MHz, Cob=20pF (complementary=2N6424) 0) 2N3739(Si-NPN/TO-66) Motorola || Pcmax=20W, Vceo=300V, Ic=3A, Tjmax=175℃, hFE=40/200, fT=10MHz, Cob=20pF (complementary=2N6425) 2) 2N3739(Si-NPN/TO-66) Motorola D/C=9237 || Pcmax=20W, Vcbo=325V, Vceo=300V, Vebo=7V, Ic=2A, Tj=175℃, hFE=40/200,fT=10MHz,Cob=20pFv ** BIN-727 ** 0) 2N3740(Si-PNP/TO-66) Motorola || Pcmax=25W, Vceo=-60V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3766) **bin409** 2) 2N3740(Si-PNP/TO-66) - D/C=8540 || Pcmax=25W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=4A, Tj=200℃, hFE=30/100,fT=4MHz,Cob=100pF ** BIN-727 ** 10) JAN2N3741(Si-PNP/TO-66) Motorola || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) **bin409** 2) 2N3741(Si-PNP/TO-66) Motorola D/C=7539 || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) **bin409** 4) 2N3741(Si-PNP/TO-66) Motorola D/C=7813 || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) **bin409** 1) 2N3741(Si-PNP/TO-66) Motorola D/C=844, Au-plated frange || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 1) 2N3741(Si-PNP/TO-66) Motorola USED D/C=824 Tapered-frange+Al cap || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 1) CGGJANTXV2N3741(Si-PNP/TO-66) Motorola D/C=7633, Au-plated frange || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 2) CGGJANTXV2N3741(Si-PNP/TO-66) Motorola D/C=8115, Au-plated legs || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 1) 2N3741(Si-PNP/TO-66) Motorola D/C=844, Au-plated frange || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 1) 2N3741(Si-PNP/TO-66) Motorola D/C=152, Aluminum-can & frange, Au-plated legs || Pcmax=25W, Vceo=-80V, Ic=-4A, Tjmax=200℃, hFE=30/100, fT=4MHz, Cob=100pF (complementary=2N3767) 10) JANTX2N3743(Si-PNP/TO-39) - gold-plated leads || Pcmax=1W, Vceo=-300V, Ic=-50mA, Tjmax=200℃, hFE=25/250, fT=30MHz, Cob=15pF **bin409** 10) 2N3743(Si-PNP/TO-39) Motorola || Pcmax=1W, Vceo=-300V, Ic=-50mA, Tjmax=200℃, hFE=25/250, fT=30MHz, Cob=15pF **bin409** 25) 2N3743(Si-PNP/TO-39) Fairchild D/C=135 etc, Au-plated leads || Pcmax=1W, Vceo=-300V, Ic=-50mA, Tjmax=200℃, hFE=25/250, fT=30MHz, Cob=15pF 6) JANTX2N3749(Si-NPN/TO-59/MT38) Unitrode || Pcmax=30W, Vceo=80V, Ic=5A, Tj=200℃, hFE=40/120, fT=40MHz, Cob=150pF screw **bin409** 27) 2N3762(Si-PNP/TO-39) Motorola D/C=8521 || Pcmax=1W, Vceo=-40V, Ic=-1.5A, Tj=200℃, hFE=30/120, fT=180MHz, Cob=15pF **bin409** 7) 2N3766(Si-NPN/TO-66) Motorola gold-plated frange D/C=126,924 || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) **bin409** 1) 2N3766(Si-NPN/TO-66) Motorola gold-plated frange D/C=744 || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) **bin409** 1) 2N3766(Si-NPN/TO-66) Motorola D/C=7313(very old) Aluminum can-top || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) 1) 2N3766(Si-NPN/TO-66) Motorola Aluminum type D/C= || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) **bin409** 6) 2N3766(Si-NPN/TO-66) Motorola D/C=7613(4),7626(2) Alcan+Albase || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF 27) 2N3766(Si-NPN/TO-66) Motorola D/C)=7752(8),7852(19), Alcan+Albase || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF 11) 2N3766(Si-NPN/TO-66) Motorola D/C=7852 Aluminum can-top || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) 32) 2N3766(Si-NPN/TO-66) Motorola D/C=7952(2),8013(8),8039(22) || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF 3) 2N3766(Si-NPN/TO-66) Motorola D/C=8113 || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) 7) 2N3766(Si-NPN/TO-66) Motorola D/C=8326 || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) **bin409** 4) JX2N3766(Si-NPN/TO-66) Motorola D/C=8630 || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3740) **bin409** 2) 2N3766(Si-NPN/TO-66) Solitron D/C=7205,7238, Au-plated frange || Pcmax=20W, Vceo=60V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF 30) 2N3767(Si-NPN/TO-66) ASI D/C=8343 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 39) 2N3767(Si-NPN/TO-66) ASI (D/C=1980th) || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 8) 2N3767(Si-NPN/TO-66) ED D/C=952(2),909(6) || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 3) 2N3767(Si-NPN/TO-66) Motorola D/C=7539 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) **bin409** 4) 2N3767(Si-NPN/TO-66) Motorola D/C=7813 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) **bin409** 1) 2N3767(Si-NPN/TO-66) Motorola D/C=824, Au-plated frange || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 4) 2N3767(Si-NPN/TO-66) Motorola D/C=8152 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 20) 2N3767(Si-NPN/TO-66) Solitron gold-frange MIL-1ea-bag 110CV(5905)-99-9009811 date=March-1983 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 1) 2N3767(Si-NPN/TO-66) Transitron D/C=7316 || Pcmax=20W, Vceo=80V, Ic=4A, Tj=175℃, hFE=40/160, fT=10MHz, Cob=50pF (complementary=2N3741) 1) 2N3767(Si-PNP/TO-66) Motorola D/C=8026 || Pcmax=20W, Vcbo=100V, Vceo=80V, Vebo=6V, Ic=4A, Tj=175℃, hFE=40/160,fT=10MHz,Cob=50pF ** BIN-727 ** 2) 2N3767(Si-PNP/TO-66) Signetics D/C=7836F || Pcmax=20W, Vcbo=100V, Vceo=80V, Vebo=6V, Ic=4A, Tj=175℃, hFE=40/160,fT=10MHz,Cob=50pF ** BIN-727 ** 3) 2N3767(Si-PNP/TO-66) Solitron D/C=8539. GOLD-PLATED || Pcmax=20W, Vcbo=100V, Vceo=80V, Vebo=6V, Ic=4A, Tj=175℃, hFE=40/160,fT=10MHz,Cob=50pF ** BIN-727 ** 1) 2N3767(Si-PNP/TO-66) ? D/C=316 || Pcmax=20W, Vcbo=100V, Vceo=80V, Vebo=6V, Ic=4A, Tj=175℃, hFE=40/160,fT=10MHz,Cob=50pF ** BIN-727 ** 1) 2N3771(Si-NPN/TO-3) RCA D/C= || Pcmax=150W, Vceo=40V, Icmax=30A, Tj=200℃, hFE=15/60, fT=0.2MHz, Cob=-pF 1) 2N3771(Si-NPN/TO-3) RCA || Pcmax=150W, Vceo=40V, Icmax=30A, Tj=200℃, hFE=15/60, fT=0.2MHz, Cob=-pF 2) 2N3772(Si-NPN/TO-3) Rockwell D/C=8332 || Pcmax=150W, Vceo=60V, Icmax=30A, Tj=200℃, hFE=15/60, fT=0.2MHz 6) 2N3772(Si-NPN/TO-3) Solitron D/C=8516 || Pcmax=150W, Vcbo=100V, Vceo=60V, Vebo=7V, Ic=30A, Tj=200℃, hFE=15/60, fT=0.2MHz, Cob=1200pF ** BIN-727 ** 1) 2N3773(Si-NPN/TO-3) TRW USED D/C=74th || Pcmax=150W, Vcbo=160V, Vceo=140V, Vebo=7V, Ic=30A, Tj=200℃, hFE=15/60, fT=0.2MHz, ** BIN-727 ** 2) 2N3790(Si-PNP/TO-3) Motorola step-up frange, lot=29, D/C=6-24, gold-plated prongs || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=25/90, fT=4MHz, Cob=-pF 100) 2N3790(Si-PNP/TO-3) Motorola D/C=8352, w/ original-pallet || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=25/90, fT=4MHz, Cob=-pF 2) 2N3791(Si-PNP/TO-3) Motorola date=9043 || Pcmax=150W, Vceo=-60V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 1) 2N3791(Si-PNP/TO-3) - D/C=8117 made in Italy || Pcmax=150W, Vceo=-60V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 4) 2N3791(Si-PNP/TO-3) Motorola D/C=7639 , Alcan-Albase || Pcmax=150W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=10A, Tj=200℃, hFE=50/150,fT=4MHz,- ** BIN-727 ** 2) 2N3791(Si-PNP/TO-3) Motorola D/C=8426,8452 || Pcmax=150W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=10A, Tj=200℃, hFE=50/150,fT=4MHz,- ** BIN-727 ** 1) 2N3791(Si-PNP/TO-3) Fairchild USED D/C=701, Alcan-Albase || Pcmax=150W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=10A, Tj=200℃, hFE=50/150,fT=4MHz,- ** BIN-727 ** 5) 2N3792(Si-PNP/TO-3) SML NOS TO-3 MIL-bag date=3/83 || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 10) 2N3792(Si-PNP/TO-3) SGS made in Italy || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 4) CGGJAN2N3792(Si-PNP/TO-3) Motorola D/C=8208, Au-plated legs || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 8) CGGJAN2N3792(Si-PNP/TO-3) Motorola D/C=W8422 || Pcmax=150W, Vceo=-80V, Icmax=-10A, Tj=200℃, hFE=50/150, fT=4MHz, Cob=-pF 50) CCXP-JTX2N3810(=JANTX2N3810)(Si-dualPNP/TO-77) NS D/C=S7906, Au-plated leads || Pcmax=600mW, Vceo=-60V, Tj=200℃, fT=100MHz, Cob=4pF 10) 2N3811(Si-dualPNP/TO-77) Motorola D/C=8824 || Pcmax=600mW, Vceo=-60V, Tj=200℃, fT=100MHz, Cob=4pF 10) 2N3811(Si-dualPNP/TO-77) Motorola D/C=8824 || Pcmax=600mW, Vceo=-60V, Tj=200℃, fT=100MHz, Cob=4pF 1) JANTXV2N3823(Nch-JFET/TO-72) Motorola D/C=8530, Au-plated leads for VHF, Pdmax=300mW, BVgss=-30V, Idss=4-20mA, gfs=3.5-6.5mS, Ciss=6pF, Crss=2pF, NF=2.5dB 11) 2N3830 SCA NOS TO-39 gold-lead MIL-1ea-bag D/C=8104A packed-date=May-1981 110CV(5961)-99-627-3392 1) CGG JAN2N3866(Si-NPN/TO-39) Motorola D/C=7209F, Au-plated leads || Pcmax=5W, Vceo=30V, Icmax=400mA, Tj=200℃, hFE=10/200, fT=500MHz, Cob=3pF 10) 2N3866(Si-NPN/TO-39) Motorola D/C=K9504 || Pcmax=5W, Vceo=30V, Icmax=400mA, Tj=200℃, hFE=10/200, fT=500MHz, Cob=3pF 52) 2N3868(Si-PNP/TO-39) Motorola D/C=8352 || Pcmax=1W, Vceo=-60V, Icmax=-3A, Tj=200℃, hFE=20min, fT=60MHz, Cob=-pF **bin409** 1) JANTX2N3868(Si-PNP/TO-39) Central D/C=8824, Au-plated leads || Pcmax=1W, Vceo=-60V, Icmax=-3A, Tj=200℃, hFE=20min, fT=60MHz, Cob=-pF 2) 2N3878(Si-NPN/TO-66) RCA D/C=7828 || Pcmax=35W, Vceo=80V, Ic=4A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 1) 2N3878(Si-NPN/TO-66) Rockwell D/C=8421 || Pcmax=35W, Vceo=80V, Ic=4A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 20) 2N3879(Si-NPN/TO-66) RCA D/C=8114 || Pcmax=35W, Vceo=75V, Ic=7A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 30) 2N3879(Si-NPN/TO-66) RCA D/C=8114 || Pcmax=35W, Vceo=75V, Ic=7A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 2) 2N3879(Si-NPN/TO-66) RCA D/C=7652, 8436 || Pcmax=35W, Vceo=75V, Ic=7A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 2) 2N3879(Si-NPN/TO-66) - lot=P04WS || Pcmax=35W, Vceo=75V, Ic=7A, Tjmax=200℃, hFE=20min, fT=40MHz, Cob=175pF 11) 2N3896(SCR/-) Motorola,Central 100V/35A ** BIN-727 ** 85) 2N3902(Si-NPN/TO-3) Delco 1970th, removed from new MIL high-voltage power assemblies || Pcmax=100W, Vceo=325V, Ic=3.5A, Tj=200℃, hFE=30/90, fT=2.8MHz, Cob=150pF 5) 2N3904(Si-NPN/TO-92) Motorola D/C=87 || Pcmax=310m5W, Vceo=40V, Ic=200mA, Tj=135℃, hFE=100min, fT=250MHz, Cob=4pF **BIN-17C** 84) 2N3906(Si-PNP/TO-92) - Pc=0.625W, Vceo=-40V, hFE=100min, fT=250MHz, Cob=4.5pF 4) 2N3906(Si-PNP/TO-92) Motorola formed Au-plated leads Pc=0.625W, Vceo=-40V, hFE=100min, fT=250MHz, Cob=4.5pF 1) 2N3921(dual-Nch-FET/TO-71) Signetics D/C=8124 Au-plated leads Pd=300mW, Vgd=-50V, Idss=1-10mA, gfs=1.5-7.5mS 8) 2N3945(Si-NPN/TO-39) Westinghouse NOS gold-lead MIL-1ea-bag D/C=303 packed-date=April-1983 10CV(5961)-99-118152 || Pcmax=800mW, Vceo=50V, Icmax=1A, Tj=200℃, hFE=40/250, fT=60MHz, Cob=12pF 12) 2N3960(Si-NPN/TO-18) Motorola gold-plated leads || Pcmax=400mW, Vceo=12V Ic=50mA, Tj=200℃, hFE=40/200, fT=1600MHz, Cob=2.5pF **bin409** 1) JANTX2N3960(Si-NPN/TO-18) Motorola D/C=K8452, Au-plated leads 31) 2N3964(Si-PNP/TO-18) Fairchild Au-plated leads || Pcmax=360mW, Vceo=-45V, Ic=-0.2A, hfe=250-600, fT=50MHz, Cob=6pF 4) 2N3965(Si-PNP/TO-18) Fairchild gold-plated leads D/C=734 || LN Pcmax=360mW, Vceo=-60V, Icmax=-0.2A, Tj=200℃, fT=50MHz, Cob=6pF **bin409** 34) 2N3965 Motorola D/C=052 PNP low noise Vceo=-60V/0.36W 40MHz/6pF TO-18 **bin409** 35) 2N3972(Nch-JFET/TO-18) Motorola D/C=K8750 Au-plated leads Vgd=-40V, Idss=5-30mA, Ron=100Ω 25) 2N4036(Si-PNP/TO-5) MSC D/C=821 for Military 110CV-1973578 (5-bagx5pcs) || Pcmax=1W, Vceo=-65V, Ic=-1A, Tj=200℃, hFE=40/140, fT=60MHz, Cob=25pF 47) 2N4036(Si-PNP/TO-39) Motorola D/C=026(1980), Au-plated leads || Pcmax=1W, Vceo=-65V, Ic=-1A, Tj=200℃, hFE=40/140, fT=60MHz, Cob=25pF 7) 2N4036(Si-PNP/TO-39) Raytheon D/C=7901, Au-plated leads || Pcmax=1W, Vceo=-65V, Ic=-1A, Tj=200℃, hFE=40/140, fT=60MHz, Cob=25pF 1) 2N4045(dual-Si-NPN/TO-77) Solitron D/C=7230DL, Au-plated leads || Pcmax=750mW, Vceo=45V, Ic=10mA, Tj=200℃, hFE=80/800, fT=150MHz, Cob=0.8pF 5) 2N4116(Si-NPN/TO-59) - || Pcmax=37W, Vceo=80V, Ic=5A, Tj=165℃, hFE=100min, fT=60MHz, Cob=120pF **bin409** 4) 2N4231(Si-NPN/TO-66) SSDI D/C=7204, Au-plated frange || Pcmax=35W, Vceo=40V, Ic=0.5A, Tj=125℃, hFE=25/100, fT=4MHz, Cob=200pF **bin409** 1) 2N4235(Si-PNP/TO-39) Motorola TO-39 D/C=744 , Au-plated leads || Pcmax=1W, Vceo=-60V, Ic=-3A, Tj=200℃, hFE=30/150, fT=3MHz, Cob=100pF 1) 2N4235(Si-PNP/TO-39) Fairchild D/C=322, Au-plated leads || Pcmax=1W, Vceo=-60V, Ic=-3A, Tj=200℃, hFE=30/150, fT=3MHz, Cob=100pF 1) 2N4236(Si-PNP/TO-39) Motorola D/C=124, Au-plated leads || Pcmax=1W, Vceo=-80V, Ic=-3A, Tj=200℃, hFE=30/150, fT=3MHz, Cob=100pF 1) 2N4238(Si-NPN/TO-39) Motorola D/C=324, Au-plated leads || Pcmax=5W, Vceo=60V, Ic=1A, Tj=200℃, hFE=15min, fT=80MHz, Cob=-pF 5) 2N4240(Si-NPN/TO-66) Motorola D/C=8914 || Pcmax=35W, Vceo=300V, Ic=2A, Tj=200℃, hFE=30/150, fT=15MHz, Cob=-pF (complementary=2N6264) **bin409** 32) 2N4248(Si-PNP/TO-106-1) Fairchild || Pcmax=200mW, Vceo=-40V, Ic=-100mA, Tj=125℃, hFE=50min, fT=40MHz, Cob=6pF 22) 2N4258(Si-PNP/TO-106) - USED || Pcmax=200mW, Vcbo=-12V, Vceo=-12V, Vebo=-4V, Ic=-50mA, Tj=125℃, hFE=30/120, fT=700MHz, Cob=3pF 20) 2N4260(Si-PNP/TO-72) Motorola gold-plated leads || Pcmax=200mW, Vceo=-15V, Ic=-30mA, Tj=200℃, hFE=30/150, fT=1600MHz, Cob=2.5pF **bin409** 2) 2N4265(Si-NPN/TO-92) Motorola || Pcmax=310mW, Vceo=12V, Ic=200mA, Tj=135℃, hFE=100min. fa=300MHz, Cob=4pF 60) 2N4292(Si-NPN/TO-72) TI date=7112etc, Au-plated leads, metal-can || Pcmax=200mW, Vceo=15V, Ic=50mA, Tj=150℃, hFE=20min, fT=600MHz, Cob=2.2pF 45) 2N4338(Nch-JFET/TO-72) Teledyne D/C=7351, 7348 etc, gold-plated leads Vgs=-50V, Idss=0.2-0.6mA, Igss=-100pA En=6nV/sq[Hz] 9) 2N4351 Motorola gold-plated leads D/C=712 Nch-eMOSFET 25V/0.375W 1mS/1.3pF TO-72 (can) **bin409** 14) 2N4392(Nch-JFET) Signetics D/C=8038(13), 8003(1) Au-plated leads Vgs=-40V, Idss=25-75mA, Igss=100pA, Gfs=6mS, Rds(on)=60ohm, En=3nV/sq[Hz] 8) 2N4393(Nch-JFET/TO-18) Motorola gold-plated leads Vgs=-40V, Idss=5-30mA, Igss=100pA, Gfs=6mS, Rds(on)=100ohm, En=3nV/sq[Hz] **bin409** 100) 2N4400(Si-NPN/TO-92) Motorola || Pcmax=310mW, Vceo=40V, fTmax-240MHz, Cob=7pF 100) 2N4400(Si-NPN/TO-92) Fairchild || Pcmax=310mW, Vceo=40V, fTmax-240MHz, Cob=7pF 8) 2N4427(Si-NPN/TO-5) Philips D/C=m9331 || Pcmax=1W, Vceo=20V, Ic=400mA, Tj=200℃, hFE=10/200, fT=500MHz, Cc=4pF 10) JANTX2N4856(Nch-MOSFET/TO-18) - Pdmax=300mW, Vds=+40V, Igf=50mATj=175℃, Idss=50mAmin, Ron=25Ωmax 3) CDBN-JANTX2N4857(Nch-JFET/TO-18) Siliconix D/C=8630, Au-plated leads Pdmax=1.8W, Vgss=-40V, Idss=20-100mA 2) JAN2N4858(Nch-JFET/TO-18) Intersil gold-plated leads Vgs=-40V, Idss=8-80mA, Igss=250pA, Gfs=-mS, Rds(on)=60ohm, En=-nV/sq[Hz] **bin409** 12) 2N4858(Nch-JFET/TO-18) Motorola, NS Vgs=-40V, Idss=8-80mA, Igss=250pA, Gfs=-mS, Rds(on)=60ohm, En=-nV/sq[Hz] **bin409** 0) 2N4860(Nch-JFET/TO-18) - Vgs=-40V, Idss=20-100mA, Igss=250pA, Gfs=-mS, Rds(on)=40ohm, En=-nV/sq[Hz] 1) 2N4898(Si-NPN/TO-66) Motorola USED D/C=-, gold-plated frange || Pcmax=25W, Vcbo=-40V, Vceo=-40V, Vebo=-5V, Ic=-4A, Tj=200℃, hFE=20/100, fT=3MHz, Cob=100pF ** BIN-727 ** 87) 2N4905(Si-PNP/TO-3) TI date=7414etc T || Pcmax=87.5W, Vceo=-60V, Ic=-5A, Tj=200℃, hFE=25/50, fT=4MHz, Cob=-pF 4) 2N4905(Si-PNP/TO-3) Fairchild D/C=325, 446 Aluminum-can+base with Au-plated legs || Pcmax=87.5W, Vceo=-60V, Ic=-5A, Tj=200℃, hFE=25/50, fT=4MHz, Cob=-pF 1) 2N4905(Si-PNP/TO-3) Rockwell D/C=A8439 || Pcmax=87.5W, Vceo=-60V, Ic=-5A, Tj=200℃, hFE=25/50, fT=4MHz, Cob=-pF 1) 2N4910(Si-NPN/TO-66) Motorola USED D/C=036, gold-plated frange || Pcmax=25W, Vcbo=40V, Vceo=40V, Vebo=5V, Ic=4A, Tj=200℃, hFE=20/100, fT=7MHz, - ** BIN-727 ** 3) 2N4914(Si-NPN/TO-3) Motorola D/C=8140, Aluminum-can+base || Pcmax=87W, Vceo=60V, Ic=5A, Tj=200℃, hFE=25/100, fT=4MHz, Cob=-pF 39) 2N4924(Si-NPN/TO-39) Motorola date=026 || Pcmax=1W, Vceo=100V, Ic=200mA, Tj=175℃, hFE=40/200, fT=100MHz, Cob=10pF 3) 2N4928(Si-PNP/TO-5) Motorola D/C=424, Au-plated leads, original-bag || Pcmax=600mW, Vceo=-100V, fT=100MHz, Cob=6pF 9) 2N4928(Si-PNP/TO-5) Motorola D/C=352, Au-plated leads || Pcmax=600mW, Vceo=-100V, fT=100MHz, Cob=6pF 2) 2N4931(Si-PNP/TO-5) Motorola D/C=7252 Au-plated leads || Pcmax=1W, Vceo=-250V, fT=20MHz, Cob=20pF 27) 2N4938(Si-PNP/TO-77-1) Motorola D/C=936, Au-plated leads || Pcmax=600mW, Vceo=-40V, Ic=-50mA, Tj=200℃, hFE=50/250, fT=200MHz, Cc=3pF 3) 2N4949(/TO-71) Motorola Au-plated leads 100) 2N4967(Si-NPN/TO-106) - || Pcmax=200mW, Vceo=40V. fT=40MHz, Cob=9pF 14) 2N4983 Motorola date=K0425 Silicon-UniLateral-SW Vacr=30V If=175mA Pt=0.3W TO-39 1) 2N5000(Si-NPN/TO-59) Solitron MIL-NSN-5961-00-006-7138, D/C=87 || Pcmax=20W, Vceo=80V, Ic=2A, Tj=200℃, hFE=70/200, fT=560MHz, Cob=-pF **BIN-17C** 4) 2N5023(Si-PNP/TO-39) Fairchild gold-plated leads || Pcmax=1W, Vceo=-30V, Ic=-500mA, Tj=200℃, hFE=40/100, fT=200MHz, Cob=25pF **bin409** 93) 2N5023(Si-PNP/TO-39) Raytheon gold-plated leads || Pcmax=1W, Vceo=-30V, Ic=-500mA, Tj=200℃, hFE=40/100, fT=200MHz, Cob=25pF **bin409** 100) 2N5086(Si-PNP/TO-92-2) Teledyne D/C=7247 || Pcmax=310mW, Vceo=-50V, Ic=-50mA, Tj=135℃, hFE=150min, fT=40MHz, Cc=4pF 1) 2N5090(Si-NPN/TO-92) - FR2188/2N5090, MIL-B-81 705A original MIL-bag || Pcmax=5W, Vceo=30V, Ic=400mA, Tj=200℃, hFE=10/200, fT=500MHz, Cob=3.5pF 12) 2N5109(Si-NPN/TO-39) Motorola || Pcmax=2.5W, Vceo=20V, Ic=400mA, Tj=200℃, hFE=40/120, fT=1200MHz, Cob=3.5pF 20) 2N5116 Intersil Nch-jFET-SW Vceo=30V/-5--25mA 150-ohm TO-18 **bin409** 16) 2N5147(Si-PNP/TO-39) Westinghouse gold-plated leads || Pcmax=7W, Vceo=-80V, Ic=-2A, Tjmax=200℃, hFE=30/90, fT=50MHz, Cob=120pF **bin409** 17) 2N5147(Si-PNP/TO-39) TI gold-plated leads D/C=7930 || Pcmax=7W, Vceo=-80V, Ic=-2A, Tjmax=200℃, hFE=30/90, fT=50MHz, Cob=120pF **bin409** 2) 2N5147(Si-PNP/TO-39) - gold-plated leads || Pcmax=7W, Vceo=-80V, Ic=-2A, Tjmax=200℃, hFE=30/90, fT=50MHz, Cob=120pF **bin409** 9) 2N5148(Si-NPN/TO-39) - gold-plated leads D/C=422 || Pcmax=7W, Vceo=80V, Ic=2A, Tjmax=200℃, hFE=30/90, fT=70MHz, Cob=70pF 1) 2N5163() Electron Ind ass/83 #5961-00-164-9774 **BIN-17C** 10) 2N5180(Si-NPN/TO-72) RCA || Pcmax=180mW, Vceo=15V, fT=650MHz, Cob=1pF 10) 2N5182(Si-NPN/TO-72) RCA || Pcmax=180mW, Vceo=25V, fT=400MHz, Cob=0.3pF 24) 2N5208(Si-PNP/TO-92) Motorola D/C=024 leads=BEC, LN, Wide Band || Pcmax=310mW, Vceo=-25V, fT=300MHz, Cc=1pF, rbCc=10ps 11) 2N5302(Si-NPN/TO-3) Fairchild D/C=306 Aluminum-can top, Au-plated prongs || Pcmax=200W, Vceo=60V, Ic=30A, Tj=200℃, hFE15/60, fT=2MHz, Cob=-pF 1) 2N5303(Si-NPN/TO-3) Motorola D/C=7552 || Pcmax=200W, Vcbo=80V, Vceo=80V, Vebo=5V, Ic=20A, Tj=200℃, hFE=15/60, fT=2MHz, - ** BIN-727 ** 1) 2N5303(Si-NPN/TO-3) Motorola USED D/C=7552 || Pcmax=200W, Vcbo=80V, Vceo=80V, Vebo=5V, Ic=20A, Tj=200℃, hFE=15/60, fT=2MHz, - ** BIN-727 ** 4) 2N5345(Si-NPN/TO-66) Motorola gold-plated leads || Pcmax=40W, Vceo=300V, Ic=1A, Tj=200℃, hFE=25/100, fT=60MHz, Cob=250pF **bin409** 2) 2N5415(Si-PNP/TO-39) RCA same-lot, gold-plated leads || Pcmax=1W, Vceo=-200V, Ic=-1A, Tjmax=200℃, hFE=30/150, fT=15MHz, Cob=15pF (complementary=2N3440) 39) JANTX2N5416S(Si-PNP/TO-39) Motorola MIL-M19500 || Pcmax=1W, Vceo=-300V, Ic=-1A, Tjmax=200℃, hFE=30/150, fT=15MHz, Cob=15pF (complementary=2N3439) 100) 2N5416(Si-PNP/TO-39) Motorola D/C=9005,9008 || Pcmax=1W, Vceo=-300V, Ic=-1A, Tjmax=200℃, hFE=30/150, fT=15MHz, Cob=15pF (complementary=2N3439) 1) 2N5416(Si-PNP/TO-39) RCA D/C=80th || Pcmax=1W, Vceo=-300V, Ic=-1A, Tjmax=200℃, hFE=30/150, fT=15MHz, Cob=15pF (complementary=2N3439) 2) 2N5427(Si-NPN/TO-66) Motorola D/C=8539 || Pcmax=40W, Vcbo=80V, Vceo=80V, Vebo=6V, Ic=7A, Tj=200℃, hFE=30/120,fT=30MHz,Cob=250pF ** BIN-727 ** 4) 2N5430(Si-NPN/TO-66) Motorola gold-plated leads, D/C=752 || Pcmax=40W, Vceo=100V, Ic=7A, Tj=200℃, hFE=60/240, fT=30MHz, Cob=250pF **bin409** 1) 2N5462(/) NS 1990 #5961-00-359-7587 **BIN-17C** 42) JX2N5663(=JANTX2N5663)(Si-NPN/TO-5) Unitrode D/C=8819 Au-plated leads Pc=1W, Vceo=300V, Ic=1A, Tj=200℃, hFE=25/75, fT=20MHz, Cob=45pF 15) 2N5679(Si-PNP/TO-39) SGS France || Pcmax=10W, Vceo=-100V, Ic=-1A, Tj=200℃, hFE=40/150, fT=30MHz, Cob=50pF **bin409** 1) 2N5683(Si-PNP/TO-3) Motorola USED, D/C=7752 || Pcmax=300W, Vceo=-60V, Ic=-50A, Tjmax=200℃, hFE=15/60, fT=2MHz, Cob=2000pF 12) 2N5686(Si-NPN/TO-3) Motorola tapered-frange D/C=8226 NPN Pcmax=300W, Vceo=80V, Ic=50A, Tj=200℃, hFE=15/60, fT=2MHz, Cob=1200pF **bin409** 15) 2N5783(Si-PNP/TO-5) RCA || Pcmax=10W, Vceo=-40V, Ic=-3.5A, Tj=200℃, hFE=20/100, fT=8MHz, Cob=-pF 1) 2N5830(Si-NPN/TO-92) GE || Pcmax=625mW, Vceo=100V, Ic=600mA, Tjmax=150℃, hFE=80/500, fT=100MHz, Cob=4pF 1) 2N5840(Si-NPN/TO-3) RCA D/C= , || Pcmax=100W, Vceo=300V, Ic=3A, Tjmax=200℃, hFE=10/50, fT=5MHz, Cob=-pF 1) 2N5859(Si-NPN/TO-39) Motorola made in Korea || Pcmax=1W, Vceo=40V, Ic=2A, Tjmax=200℃, hFE=15/100 fT=250MHz, Cob=7pF 12) 2N5884(Si-PNP/TO-3) Motorola D/C=7839, Al-can + Al-base || Pcmax=200W, Vceo=-80V, Ic=-25A, Tjmax=200℃, hFE=20/100 fT=4MHz, Cob=800pF 13) 2N5954(Si-PNP/TO-66) RCA D/C=527 || Pcmax=40W, Vceo=-80V, Ic=-6A, Tj=200℃, hFE=20min, fT=5MHz 2) 2N6027(Si-/TO-92) - 9) 2N6211(Si-PNP/TO-66) RCA D/C=514(1), 527(8) Pcmax=35W, Vceo=220V, fT-20MHz, Cob=220pF 1) CRC JAN2N6213(Si-PNP/TO-66) RCA D/C=N8302 || Pcmax=35W, Vcbo=400V, Vceo=350V, Vebo=6V, Ic=2A, Tj=200℃, hFE=10/100,fT=20MHz,Cob=220pF ** BIN-727 ** 1) JANTX2N6213(Si-PNP/TO-66) RCA USED cut-leads D/C=M8428 || Pcmax=35W, Vcbo=400V, Vceo=350V, Vebo=6V, Ic=2A, Tj=200℃, hFE=10/100,fT=20MHz,Cob=220pF ** BIN-727 ** 32) 2N6227(Si-PNP/TO-3) Motorola D/C=7752 Aluminum-can+base with Au-plated legs || Pcmax=150W, Vceo=-120V, Ic=-6A, Tj=200℃, hFE=20/100, fT=1MHz, Cob=450pF 2) 2N6248(Si-PNP/TO-3) RCA || Pcmax=125W, Vcbo=110V, Vceo=100V, Vebo=5V, Ic=15A, Tj=200℃, hFE=20/100,fT=10MHz,- ** BIN-727 ** 1) 2N6250(Si-NPN/TO-3) RCA D/C=518 || Pcmax=175W, Vceo=275V, Ic=10A, Tjmax=200℃, hFE=10min, fT=2.5MHz, Cob=-pF 4) 2N6259(Si-NPN/TO-3) RCA D/C=452 || Pcmax=250W, Vcbo=170V, Vceo=170V, Vebo=7V, Ic=16A, Tj=200℃, hFE=15/60,fT=0.2MHz,- ** BIN-727 ** 1) 2N6282(Si-NPN/TO-3) Motorola date=7952, Aluminum can base || Pcmax=160W, Vceo=60V, Ic=20A, Tjmax=200℃, hFE=750min, fT=4MHz, Cob=600pF [DARLINGTON-POWER] 23) 2N6383(Si-NPN/TO-3) Motorola Al-can + Al-base, D/C=8139(18), 8226((3), 8113(2) || Pcmax=100W, Vceo=40V, Ic=10A, Tj=200℃, hFE=1000typ, fT=20MHz, Cob=200pF [DARLINGTON-POWER] 21) 2N6383(Si-NPN/TO-3) Motorola D/C=8729(14), 8747(6), 8710(1) || Pcmax=100W, Vceo=40V, Ic=10A, Tj=200℃, hFE=1000typ, fT=20MHz, Cob=200pF [DARLINGTON-POWER] 2) 2N6383(Si-NPN/TO-3) RCA D/C=8540 || Pcmax=100W, Vceo=40V, Ic=10A, Tj=200℃, hFE=1000typ, fT=20MHz, Cob=200pF [DARLINGTON-POWER] 5) 2N6405(SCR/TO-220) ASI 800V/16A 75) 2N6424(Si-PNP/TO-66) Motorola D/C=7713, Aluminium-can+base || Pcmax=20W, Vceo=-225V, Ic=-2A, Tj=175℃, hFE=40min, fT=10MHz, Cob=20pF low-Cob complementary=2N3738(NPN) 15) 2N6545(Si-/TO-3) Motorola D/C=9224 || Pcmax=W, Vceo=V, Ic=A, Tj=200℃, hFE=min, fT=MHz, Cob=pF 4) 2N6545(Si-NPN/TO-3) Motorola D/C=7913, Alcan-Albase || Pcmax=125W, Vcbo=800V, Vceo=400V, Vebo=9V, Ic=8A, Tj=200℃, hFE=7/35,fT=6MHz,- ** BIN-727 ** 1) 2N6576(Si-NPN/TO-3) Motorola D/C=7839, Alcan-Albase || Pcmax=120W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=15A, Tj=200℃, hFE=500min,fT=4MHz,- ** BIN-727 ** 1) 2N6576(Si-NPN/TO-3) Motorola USED D/C=8019, Alcan-Albase || Pcmax=120W, Vcbo=60V, Vceo=60V, Vebo=7V, Ic=15A, Tj=200℃, hFE=500min,fT=4MHz,- ** BIN-727 ** 2) 2N6577(Si-/TO-3) Motorola D/C=8726 || Pcmax=W, Vceo=V, Ic=A, Tj=200℃, hFE=min, fT=MHz, Cob=pF 41) 2N6594(Si-PNP/TO-3) Motorola Al-can + Al-base, D/C=8113(40), 8026(1) || Pcmax=100W, Vceo=-45V, Ic=-12A, Tj=200℃, hFE=15min, fT=20MHz, Cob=750pF 2) 2N6594(Si-PNP/TO-3) RCA D/C=8318 || Pcmax=100W, Vcbo=45V, Vceo=40V, Vebo=5V, Ic=12A, Tj=200℃,hFE=15min,fT=20MHz, Cob=750pF ** BIN-727 ** 1) RS2040(=2N6594)(PNP/TO-3) Motorola USED D/C=7626, Alcan-Albase ** BIN-727 ** 1) 2N6650(Si-PNP/TO-3) RCA date=8240 || Pcmax=70W, Vceo=-80V, Ic=-15A, Tjmax=200℃, hFE=1000typ, fT=20MHz, Cob=-pF [DARLINGTON POWER] 1) 2N6657(Si-/TO-3) SGS D/C=8035 || Pcmax=W, Vceo=V, Ic=A, Tj=℃, hFE=min, fT=MHz, Cob=pF 40) 2N6660 - gold-plated leads D/C=7736 || Nch-eMOSFET 60V/0.725W 3-ohm,ton_off= 5ns TO-39 **bin409** 25) 2N6660 - D/C=8321 Nch-eMOSFET 60V/0.725W 3-ohm,ton_off= 5ns TO-39 **bin409** 7) 2N6661 - gold-plated leads D/C=7905 || Nch-eMOSFET 90V/0.725W 4-ohm,ton_off= 5ns TO-39 **bin409** 9) 2N6661(N-ch MOSFET/TO-39) ST D/C=8207 || Pdmax=0.725W, Vds=90V rd=4ohm(1A) 1) JANTXV2N6782(/) International Rectifier 1994 #5961-01-285-2452 **BIN-17C** 9) JANTX2N6800 - gold-plated leads || Nch-eMOSFET 400V/0.8W 1-ohm,ton= 30ns TO-39 **bin409** 10) JANTX2N6800 IRC || Nch-eMOSFET 400V/0.8W 1-ohm,ton= 30ns TO-39 **bin409** 2) JANTX2N6845(Pch-MOS/TO-39) IR/CBS D/C=9103 || Pdmax=20W, Vdss=-100V, Rds=0.6Ω, dV/dt=-5V/ns 53) 2N7009 - D/C=7618 || Nch-jFET 500V/0.4W 50mA,6mS,300-ohm TO-92 **bin409** 2) 3N83(Silicon-Control Switch/TO-18) GE 4-Au-plated leads || Ptmax=400mW, Vak=70V, Ifmax=50mA 20) 3N83(Silicon-Control Switch/TO-18) GE USED 4-Au-plated leads || Ptmax=400mW, Vak=70V, Ifmax=50mA 27) 3N84(Silicon-Control Switch/TO-18) GE 4-Au-plated leads || Ptmax=320mW, Vak=40V, Ifmax=175mA 2) 3N84(Silicon-Control Switch/TO-18) GE 4-Au-plated leads || Ptmax=320mW, Vak=40V, Ifmax=175mA 35) 3N200(dual-gate FET/TO-18) Signetics D/C=8047 Au-plated leads || Pdmax=300mW, Vdg=20V, 15mS-typ, Idss=5mA-typ 1) 3N201(dual-gate-Nch-MOS) TI D/C=7240A || Pdmax=300mW, Vds=25V, Idmax=50mA, Tj=175℃ 3) # 1-023 Motorola TO-3 D/C=7226 Aluminum-can top, gold-plated-prongs 4) # 4-071 Motorola TO-92 formed gold-plated leads 1) # 7-73(TO-3) RCA D/C=R7849 ** BIN-727 ** 3) # 7-4503(TO-3) Motorola USED D/C=036,7326,7352, Alcan-Albase ** BIN-727 ** 1) # 7-4503(TO-3) RCA USED D/C=CYB-8C ** BIN-727 ** 2) 4JD1A73(Ge-PNP/R31) GE || Pcmax=mW, Vceo=V, Ic=mA, Tj=℃, hFE=. fa=MHz, Cob=-pF 8) # 15-03068 RCA NPN/TO-3 D/C= HQ 8114 6) # 53-09 Motorola TO-18 lightly-used, D/C=444(3), 512(3), gold-plated leads 3) # 53-10 Motorola TO-18 lightly-used, D/C=536, gold-plated leads 2) # 54-19 Motorola TO-18 lightly-used, D/C=112, gold-plated leads 2) # 94SE116 Solitron TO-3 USED, D/C=7311 2) # 121-301(Ge-/TO-1)(RCA-SK3123相当) Zenith D/C=6702 6) # 121-403(Ge-/TO-1)(RCA-SK3004相当) Zenith D/C=6806 3) # 121-640 or 800-219(Ge-/TO-1)(RCA-SK3004相当) Zenith D/C=6806 ケース･リードに黒ずみ 1) # 121-706(-/TO-92)(RCA-SK3444相当) Zenith(Motorola) lightly-USED D/C=924, Au-plated leads 1) # 121-831(-/TO-3) Zenith(Transitron) USED D/C=429 2) # 151-03(TO-3) Motorola D/C=7839, Alcan-Albase ** BIN-727 ** 11) # 642AS 3015(BJT/TO-39) Raytheon D/C=8827 -) # 921-1B(Ge-PNP/TO-1)(RCA-SK3006, 2SA235, 2SA471相当) Zenith 2) # 1471-4802(TO-3) Motorola USED D/C=7339, Alcan-Albase ** BIN-727 ** 1) # 2571-1003(TO-3) Motorola USED D/C=7752, Alcan-Albase ** BIN-727 ** 1) 1850-0062(TO-39) RCA 3) 1853-0001(Si-PNP/TO-5) Fairchild Au-plated leads 1) 1853-0001/SM1016B(Si-PNP/TO-5) TI Au-plated leads 14) # 36313(BJT/TO-39) RCA lot#=F1- 6J 6) # 3886 RCA TO-66 lot/D/C=K 7038 10) 5025BNR(Nch-eMOSFET/TO-247) APT Pdmax=360W, Vds=500V 77) 5961-00-903-2800/ 92A45(Ge-PNP/TO-) LITDSD(Philco-made) D/C=6303, 6307 etc, original-MIL-bag || Pdmax=150mW, Vcbo=-15V, Ic=-100mA 21) 5961-00-903-2800/ 001-3(CM157B)(Ge-PNP/TO-18) TI(LITDSD) Au-plated leads || Pdmax=150mW, Vcbo=-15V, Ic=-100mA 1) # 38896 RCA TO-66 lot/D/C=K 7038 1) # 39179 RCA TO-66 lot/D/C=CHX 3A 3) # 40250((-/TO-66) RCA ** BIN-727 ** 1) # 40250((-/TO-66) RCA USED cut-leads ** BIN-727 ** 0) # 40430(TO-66) RCA USED 1) # 40527 RCA TO-39 gold-plated can/leads 4) # 40673(TO-39) RCA 1) # 53264 Fairchild TO-72 gold-plated leads 2) # 126709(-/TO-39)(SK3044相当) RCA 1) # 126725(Si-NPN/TO-92)(SK3024相当) RCA 1) # 126849(bridge diode)(SK3647相当) RCA 1) # 126851(6.8V-zener diode)(SK6A8相当) RCA 1) # 126863(10V-zener diode)(SK10V相当) RCA 1) # 130013(-/TO-92)(SK3509相当) RCA 1) # 131161(-/TO-220) RCA 1) # 130278(-/TO-106)(SK3018相当) RCA RCA-3595 1) # 136430(-/TO-92)(122-6, SK3854相当) RCA 1) # 136648(-/TO-)(3567-4, SK3054相当) RCA 1) # 141343(-/TO-92)(7330-4, SK3466相当) RCA 1) # 146359(-/TO-92)(eSK3466相当) RCA 2) # 610041-2/41N2(-/TO-106) Magnavox(Fairchild-made) D/C=735, Au-plated leads 1) # 610045-3(610045-4)/45N4N(-/TO-106) Magnavox(Fairchild-made) D/C=871, Au-plated leads 2) # 610045-4/45N4M(-/TO-106) Magnavox(Fairchild-made) D/C=809, Au-plated leads 1) # 610056-3/56P3P(-/TO-72) Magnavox 4-pins, D/C=6826 2) # 610075-1/75N1(-/TO-39) Magnavox D/C=736, Au-plated leads 1) # 610076-2/76N2(-/TO-106) Magnavox(Fairchild-made) Au-plated leads 2) # 610078-1/78N1(-/TO-39) Magnavox D/C=551, Au-plated leads 2) # 610079-1/79P1(-/TO-39) Magnavox(GE-made) D/C=805, black can package 1) # 610094-1/94N1M(-/TO-106) Magnavox(Fairchild-made) D/C=844, Au-plated leads 63) A0056/27504 ITC TO-39 NPN-Tr, D/C=9-26(54ea), 8-34(1ea), 8-21(2ea), Au-plated leads 150) AC125(Ge-PNP/TO-1) Tungsram Ptot=mW, Vceo=-V, Ic=-mA, Tj=℃, fT=MHz , hFE=typ(-) 10) AC128(Ge-PNP/TO-1) Tungsram Ptot=mW, Vceo=-V, Ic=-mA, Tj=℃, fT=MHz , hFE=typ(-) 75pairs) AC128/AC176-matched pair(Ge-PNP/TO-1) Tungsram Ptot=mW, Vceo=-V, Ic=-mA, Tj=℃, fT=MHz , hFE=typ(-) 24) AC151-VI(Ge-PNP/TO-1) Siemens Ptot=900mW, Vceo=-24V, Ic=-200mA, Tj=90℃, fT=1.5MHz , hFE=110typ(75-150), NF=4dB 25) AC151/I(Ge-PNP/TO-1) Siemens Ptot=900mW, Vceo=-24V, Ic=-200mA, Tj=90℃, fT=1.5MHz , hFE=110typ(75-150), NF=4dB 100) AC176(Ge-PNP/TO-1) Tungsram Ptot=mW, Vceo=-V, Ic=-mA, Tj=℃, fT=MHz , hFE=typ(-) 1) AC185(Ge-PNP/TO-1) Siemens Ptot=600mW, Vceo=-16V, fa=2.5MHz, hFE=50/250 42) AD1-19-41490 Intersil TO-78 D/C=7035, gold-plated leads dual-Tr 10) AF106(Ge-PNP/TO-72) - Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 20) AF137(Ge-PNP/R-60) Telefunken Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 3) AF138(Ge-PNP/R-60) Telefunken Pdmax=60mW, Vceo=-15V, hFE=100typ, fa=40MHz, Cob=3pF 30) AF138G(Ge-PNP/R-60) Telefunken Pdmax=60mW, Vceo=-15V, hFE=100typ, fa=40MHz, Cob=3pF 10) AF178(Ge-PNP/) - Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 20) AF200(Ge-PNP/) Siemens Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 400) BC178B(Si/) Telefunken Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 100) BC301(Si/TO-5) MEV made in Hungary Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 5) BC549B - NOS TO-92 NPN-general Vce/Ic=30V/100mA MIL-1ea-bag 8) BDX18(Si/TO-3) Rockwell D/C=1980th || Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 1) BDX18(Si/TO-3) Rockwell D/C=523 || Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 4) BDX64B Philips NOS TO-3 Vce/Ic=V/mA date=8910(3),9016(1) 18) BDX64B TSL NOS TO-3 Vce/Ic=V/mA date=9305 38) BF173(Si-NPN/TO-72) MicroElectronics Pdmax=200mW, Vceo=25V, Ic=25mA, hFE=38min, fT=550MHz, Cre=0.23pF, NF=3.5dB 107) BF180(Si-NPN/TO-72) A lot=431-A480 Pdmax=150mW, Vceo=20V, Ic=20mA, hFE=45min, fT=675MHz, Cob=3.5pF 1) BU113(Si/TO-3) Rockwell D/C=A8342 || Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 1) BU208(TO-3) Motorola D/C=8617 ** BIN-727 ** 1) BUV40H - NOS TO-3 Vce/Ic=V/mA date=8637 3) BUX12(Si/TO-3) ST-Micro D/C=A8342 || Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 1) BUX40 Motorola NOS TO-3 Vce/Ic=V/mA made in Mexico date=9325 2) BUY18S(Si/TO-3) ST-Micro D/C=99214 || Pdmax=mW, Vceo=-V, hFE=typ, fa=MHz, Cob=pF 25) BUY71 NPN/TO-3 Toshiba Pc=40W, Vceo=800V, Ic=2A, fT=4MHz 1) COL-2402-03 TRW TO-3 D/C=7231 24) D42C3(/) GE 1984 #5961-01-120-4467 || **BIN-17C** 1) D64VP5 GE TO-3 D/C=7939 9) D903 - NOS TO-3 Vce/Ic=V/mA made in Mexico date=9325 2) DEC1000(TO-3) Motorola D/C=7552, Alcan-Albase ** BIN-727 ** 1) DS503(TO-3) Delco USED D/C=6809 ** BIN-727 ** 2) DT4-12(Ge-NPN/TO-5) CBS || Pcmax=mW, Vceo=V, Ic=mA, Tj=℃, hFE=. fa=MHz, Cob=-pF 1) DTS4075 DELCO TO-3 original-boxed 1) E 2 005 - NOS TO-39 53) E4338 Intersil Cera-dome D/C=7417 etc, gold-plated leads 95) ECG123A(Si-NPN/TO-18) ECG 4) ECG108(Si-NPN/)(SK3452相当) Sylvania original bag Pc=250mW, Vceo=15V, fT=800MHz 1) ECG174 Sylvania TO-66 D/C= 1) ECG175 Sylvania TO-66 D/C=421 1) ECG184(Si-NPN/TO-126)(SK3189A相当) Sylvania original bag Pc=40W, Vceo=60V, Ic=4A, fT=2MHz 1) ECG219 Sylvania TO-3 D/C=7313 1) ECG283 Sylvania NOS TO-3 date=8219 1) ECG285(TO-3) ECG USED D/C=7626, Alcan-Albase ** BIN-727 ** 1) EP9255(TO-3) TI USED D/C=A8129 ** BIN-727 ** 1) GA3334(TO-39) TI D/C=101 Au-plated leads 5) GB09/660-012(/TO-71) GI Au-plated four leads 1) GE-2(/TO-3) GE 1) GE-3(TO-3) GE USED D/C=7005 ** BIN-727 ** 1) GE-6(Ge-/) GE black-hat package 1) GE-8(/TO-3) GE maybe slightly used 1) GE-17(Si-NPN/TO-106) GE original bag || Pcmax=500mW, Vceo=30V, Ic=100mA, fT=250MHz, hFE=80typ 1) GE-61(-/TO-92) GE Au-plated leads 1) GE251(/TO-3) GE similar to 2N6383 2) GT1395 GT TO-39 D/C=6232 , Au-plated leads 2) HEP233(≒2N1412)(TO-36) Motorola NIB D/C=310 || Pcmax=170W, Vcbo=-65V, Vceo=-65V, Vebo=-60V, Ic=-15A, Tj=100℃, hFE=55typ, fae=0.05MHz, - (120576509021) ** BIN-727 ** 17) IR6062 IR date=7844 TO-3 NPN Vce=450V 20A 150W 8MHz 15) IRF510 Motorola TO-3 1) IRF511(Nch-powerMOS/TO-220) Motorola 60V Archer-plastic-bag original bag 54+2) J3173[see 2N753](Si-NPN/TO-18) TI 1) MB2173(TO-3) RCA USED D/C=H8401 ** BIN-727 ** 6) MEM660 G526(/TO-71) GI Au-plated four leads 12) MFE3004 Motorola TO-72 FET? 2) MJ423 Motorola NPN/TO-3 USED LIGHTLY Vceo=325V Pc=125W fT=7.5MHz 4) MJ423(/) Motorola 1991,1992 #5961-00-118-8441 || **BIN-17C** 6) MJ2955(Si-PNP/TO-3) Motorola Aluminum can date=8213 || Pcmax=117W, Vceo=-60V, Ic=-15A, Tj=200℃, hFE=20/70. fT=2.5MHz, Cob=-pF 46) MJ2955(Si-PNP/TO-3) Motorola D/C=8352(10),8533(32),8526(4), || Pcmax=117W, Vceo=-60V, Ic=-15A, Tj=200℃, hFE=20/70. fT=2.5MHz, Cob=-pF 2) MJ2955(TO-3) Motorola D/C=7739, Alcan-Albase T ** BIN-727 ** 1) MJ2955(TO-3) Motorola D/C=8426 T ** BIN-727 ** 1) MJ3000 Motorola NOS TO-3 Aluminum can date=7939 1) MJ8501(TO-3) Motorola D/C=8313 ** BIN-727 ** 1) MJ8505(TO-3) Motorola D/C=8352 ** BIN-727 ** 14) MJ10025 Motorola TO-3 NPN Vce=850V 20A 250W Cob=600pFmax 2) MJ11016(TO-3) Motorola D/C=8802 24) MJ11033 PNP/TO-3 Motorola Darlington || Pc=300W, Vceo=-120V, Ic=50A, fT=4MHz, Cob=-pF, hFE=1000-18000(NPN=MJ11032) 15) MM1711 (Si-NPN/TO-39) Motorola D/C=230(1982) for Military 110CV-5961-99-1964518 Vcbo=80V Pc=0.8W trise/toff=26ns/70ns 1) MN61(TO-3) Motorola D/C=8535, Alcan-Albase ** BIN-727 ** 1) MN61(TO-3) Motorola USED D/C=8535, Alcan-Albase ** BIN-727 ** 1) MP279(Ge-PNP/TO-3) Motorola D/C=7332,Au-plated legs || Pcmax=25W, Vceo=-80V, Ic=-5A, hFE=30/60, tr=15us 100) MPS2369A(Si-NPN/TO-92) Motorola Pdmax=625mW, Vceo=15V, fT=-MHz, Cob=4pF 22) MPSA43 Motorola TO-92 gold-plated leads 2) MPSA63(Si-PNP/TO-92) Motorola || Pcmax=mW, Vceo=V, Ic=mA, Tj=℃, hFE=. fa=MHz, Cob=-pF 100) MPSA92(PNP/TO-92) Motorola Pc=0.625W, Vceo=-300V, fT=50MHz, Cob=6pF 100) MPSA92(Si-PNP/TO-92) Motorola 50) MRF5812R1(Si-NPN/SO-8) Motorola taped Vceo=15V fT=5.5GHz, Cob=1.2pF 8) MTW16N40E(Power-MOS/TO-247) Motorola MTW16N40E(PowerMOS/TO-247) Power T-MOS || Nch-Enhancement SiMOSFET Pd=180W, Vdss=400V,Id=16A, Rds=0.24ohm, Tj=150℃ ** BIN-727 ** 1) NS7305 NS TO-78 D/C=7148S , Au-plated leads dual-Tr see NTE/ECG transistors - EIA/general transistors Xreference 50) NTE 123 NTE NOS NPN TO-39 Vce=40V Pc=0.8W Tj=200℃ hfe=100-300 Cob=8pF ft=300MHz (similar to 2N699, 2N2219 near-complementary=PNP-2N2905) 2) NTE 451(Nch-JFET/TO-92) NTE original plastic-bag gfs=4mS, BVgss=25V, Idss=4-10mA, Pd=310mW 1) NTE 454(Nch-dual-gateMOS/TO-72) NTE original-bag gfs=15mS, BVgss=-30V, Pd=360mW, Idss=6-30mA 1) OC43(Ge-PNP/R-08) - lot=2G59 Ptot=80mW, Vcbo=-15V, hFE=50-200, fa=12MHz 5) OC44K(Ge-PNP/) - Ptot=mW, Vcbo=-V, hFE=, fa=MHz 25) OC602spez(Ge-PNP/) Telefunken original sealed paper-bag Ptot=mW, Vcbo=-V, hFE=, fa=MHz 2) P5149(TO-3) RCA USED ** BIN-727 ** 3) PL29 - ThickEdgeFrange date= TO-3 Vce=V A W MHz Cob=pF 12) PL30(Si-NPN/TO-3) - TaperedEdgeFrange, Au-plated legs, No-marking other than ID-seal (actual hFE=13 etc) Vce=V A W MHz Cob=pF 1) PMR36K100 Lambda date=8910 TO-3 Vce=V A W MHz Cob=pF 24) PMD18K60 Lambda date=8042 TO-3 NPN Vce=60V 30A 225W 4MHz Cob=600pF 19) RCA410(Si-NPN/TO-3) RCA D/C=HN8429 || Pcmax=125W, Vceo=200V, hFE=, fT=3MHz 1) RS1364 Raytheon TO-39 USED, CUT-LEADS, D/C=6802, Au-plated leads 4) RS2492 Raytheon TO-39 D/C=7207 , Au-plated leads 1) RS2754=2N918 Raytheon TO-72 D/C=7603, #5961-010-051-455 original MIL paper bag 2) RT4541(/TO-18) Raytheon D/C=6652, Au-plated leads 2) RT4549 Raytheon TO-72 D/C=7227 , Au-plated leads 1) S3264 NS TO-72 D/C=235 , Au-plated leads 42) S19142(TO-46) Fairchild D/C=017 , Au-plated leads 2) S19142(TO-46) Fairchild D/C=017, Au-plated leads 1) S21825 Fairchild TO-39 D/C=122 , Au-plated leads 1) SA2321 TI NOS TO-72 gold-lead 1) SB1002(TO-46) Utrode D/C=7129, Au-plated leads 5) SC141D(Si-TRIAC/TO-220) Motorola D/C=8235 || 400V/6A(Tc=75℃) 2) SE1001(Si-NPN/TO-106) Fairchild || Pcmax=200mW, Vceo=45V, Ic=A, Tj=℃, hFE=. fT=350MHz, Cob=3.5pF 2) SE5025(Si-NPN/TO-105) Fairchild || Pcmax=250mW, Vceo=30V, Ic=mA, Tj=℃, hFE=35. fT=300MHz, Cob=1pF 2) SE6001(Si-NPN/TO-105) Fairchild || Pcmax=300mW, Vceo=30V, Ic=mA, Tj=℃, hFE=50min. fT=40MHz, Cob=25pF 2) SE6002(Si-NPN/TO-105) Fairchild || Pcmax=300mW, Vceo=30V, Ic=mA, Tj=℃, hFE=150min. fT=40MHz, Cob=25pF 3) SFC2309(TO-3) Rockwell D/C=314. 346 || Pcmax= 17) SJ1278H(Si-PNP/TO-66) Motorola gold-plated frange, removed from new MIL power modules || Pcmax=-W, Vceo=-V, Ic=-A, Tj=-℃, hFE=-, fT=-MHz, Cob=-pF 7) SK3006/160 GE? TO72(4-leads) 4 Leads Can 1) SK3020(-/TO-39) RCA 1) SK3039(Si-NPN/TO-72) RCA Au-plated leads || Pcmax=150mW, Vceo=20V, fT=1GHz 1) SK4086B/339-03-1270(-/TO-92) RCA 1) SK9121(Si-uni-junction/TO-92) RCA Pd=300mW, Ie=50mA, Vbb=35V 1) SM6732(TO-18) TI D/C=7209F, Au-plated leads Pc=5W, Vceo=30V, Icmax=400mA, Tj=200℃, hFE=10/200, fT=500MHz, Cc=3pF 20) SRFT3034(Si-NPN/SMT) Motorola 8) SS2173(BJT/TO-39) Motorola D/C=8615, 8701 etc, Au-plated leads 12) SS2601H(/TO-39) Motorola D/C=6639, Au-plated leads 1) STI801(/) STI 1983 #5961-00-172-3028 || **BIN-17C** 2) SU-151H-1 Motorola TO-72 D/C=7052 , Au-plated leads 1) SVT6000 TRW TO-3 lot=27013, D/C=7208, gold-plated frange/prongs 3) T-1028A - D/C=3/66, #5961-905-1221 original MIL-bag 10) TIP31B(TO-220) Motorola D/C=213,352 ** BIN-727 ** 10) TIP31B(TO-220) STMicro code=98914 ** BIN-727 ** 9) RCA32A(TIP32A EQUIV)(TO-220) RCA D/C=435 ** BIN-727 ** 29) TIP32 PNP/TO-220 Motorola Pc=40W, Vceo=-40V, fT=3MHz, Cob=-pF (NPN=TIP31) 0) TIP35(Si-PNP/TO-216,247) Mospec || Pc=125W, Vceo=40V, Ic=25A, Tj=150℃, hFE=25min, fT=3MHz, Cob=-pF 25) TIP35A(Si-NPN/TO-216,247) TI || Pc=125W, Vceo=60V, Ic=25A, Tj=150℃, hFE=25min, fT=3MHz, Cob=-pF 0) TIP36A(Si-PNP/TO-216,247) TI || Pc=125W, Vceo=-60V, Ic=-25A, Tj=150℃, hFE=25min, fT=3MHz, Cob=-pF 0) TIP36C(Si-PNP/TO-216,247) Mospec || Pc=125W, Vceo=-100V, Ic=-25A, Tj=150℃, hFE=25min, fT=3MHz, Cob=-pF 3) TIP41B(TO-220) Matsushita ** BIN-727 ** 2) TIP41B(TO-220) Matsushita USED ** BIN-727 ** 12) TIP41C(TO-220) TI D/C=8227 ** BIN-727 ** 1) TIP41C(TO-220) Motorola USED ** BIN-727 ** 6) TIP42A(TO-220) Solitron D/C=8649 ** BIN-727 ** 20) RCA120(TIP120 EQUIV)(TO-220) RCA ** BIN-727 ** 1) RCA120(TIP120 EQUIV)(TO-220) RCA USED ** BIN-727 ** 10) TIP120(TO-220) SGS ** BIN-727 ** 20) TIP125(TO-220) RCA D/C=536 ** BIN-727 ** 1) TS2804(TO-39) Raytheon D/C=6950, Au-plated leads 2) TS2804 Raytheon TO-39 D/C=6950 , Au-plated leads 1) TS4174 Raytheon TO-72 D/C=6946 , Au-plated leads 1) TS4174 Raytheon TO-72 USED, D/C=6749 , Au-plated leads 2) U2412E(/) TlecomSemi MIL-NSN-5961-00-144-2467, D/C=81 || **BIN-17C** -------------------------------------------------------------------------- DIODE(zener, detector, rectifier) 1) # 212-72(bridge-rectifier)(RCA-SK3017B相当) Zenith 7) # 23214(diode) Motorola Au-plated leads 1) 1N29A GI gold-plated leads, TO-1 package 1) JHS JAN 1N30B Sylvania 2) 1N91 GE D/C=213, black-franged package 11) JAN1N540 - ** BIN-727 ** 26) JANTX1N647-1(Si-rectifier/DO-35) - MIL-S-19500/240, 6σ-quality, PIV=400V, Pdmax=600mW, If(25℃)=400mA(25℃)/150mA(150℃), Tj=175℃ 100) JANTX1N649-1(Si-rectifier/DO-35) - MIL-S-19500/240, 6σ-quality, PIV=600V, Pdmax=600mW, If(25℃)=400mA(25℃)/150mA(150℃), Tj=175℃ 100) JANTX1N746A(ZenerDiode/-) Unitrode etc || Vz=3.3V, Pdmax=400mW, Izmax=110mA, Zd=28ohm 100) JX1N758A-1/JANTX1N758A-1(ZenerDiode/-) - || Vz=10V, Pdmax=400mW, Izmax=35mA, Zd=17ohm 116) JX1N758A1/JANTX1N758A1(ZenerDiode/-) - MIL High-reliability || Vz=10V, Pdmax=400mW, Izmax=35mA, Zd=17ohm 2) 1N937A(reference-temperature-compensated ZenerDiode/DO-7) Motorola gold-plated leads || Vz=9.0V±5%(Iz=7.5mA), Pdmax=500mW, T.C.=0.002%/K, Zd=20-ohm 1) 1N937A(reference-temperature-compensated ZenerDiode/DO-7) IR black-enamel-coated jacket || Vz=9.0V±5%(Iz=7.5mA), Pdmax=500mW, T.C.=0.002%/K, Zd=20-ohm 8) JANTX1N962B(ZenerDiode/DO-7) - || Vz=11V, Pdmax=400mW, Izmax=28mA 2) 1N965(ZenerDiode/DO-7) - || Vz=15V, Pdmax=400mW, Izmax=21mA 2) 1N1084 ST ** BIN-727 ** 1) 1N1092A ST fold-plated, ceramic-insulator ** BIN-727 ** 2) 1N1186 GTC USED D/C=542 ** BIN-727 ** 20) 1N1358A(ZenerDiode/DO-4) - MIL High-reliability || Vz=10V, Pdmax=10W, Zd=3-ohm 8) 1N2153 ? D/C=8048 ** BIN-727 ** 1) 1N2814B Motorola USED Au-plated-base, black coating D/C=8210B,7735F ** BIN-727 ** 6) CCZLJANTX1N2824B(ZenerDiode/TO-3) Siemens D/C=8144B || Vz=33V, Pdmax=50W, Izmax=1.3A, ZZT=90-ohm, TC=0.085%/K 2) CCZL JAN1N2824B Siemens D/C=8210B,7735F ** BIN-727 ** 1) CGG JAN1N2824B Motorola D/C=W8206 ** BIN-727 ** 4) 1N2833(ZenerDiode/TO-3) IR Au-plated-edge, Black-frange || Vz=62V, Pdmax=50W, Izmax=560mA, ZZT=120-ohm, TC=0.090%/K 4) JAN1N2970B NAE ** BIN-727 ** 11) 1N2979B(ZenerDiode/DO-4) - || Vz=15V, Pdmax=10W, Izmax=560mA for Military purpose 12) 1N2985RB(reverse!) NAE D/C=7745, 8121 ** BIN-727 ** 1) CCZL JAN1N2985RB(reverse!) Siemens D/C=8122 ** BIN-727 ** 5) CCZL JAN1N2992B(DO-4) MSC ** BIN-727 ** 2) CCSR JAN1N3014B(DO-4) NAE ** BIN-727 ** 2) 1N3026B(ZenerDiode/DO-13) TI || Vz=18V, Pdmax=1W, Izmax=52mA, Zd=20ohm 3) 1N3027B(ZenerDiode/DO-13) Motorola || Vz=20V, Pdmax=1W, Izmax=47mA, Zd=22ohm 1) 1N3027B(ZenerDiode/DO-13) Motorola GOLD-PLATED || Vz=20V, Pdmax=1W, Izmax=47mA, Zd=22ohm 1) 1N3029B(ZenerDiode/DO-13) ST || Vz=24V, Pdmax=1W, Izmax=40mA, Zd=25ohm 1) 1N3029B(ZenerDiode/DO-13) TI || Vz=24V, Pdmax=1W, Izmax=40mA, Zd=25ohm 1) 1N3029B(ZenerDiode/DO-13) TRW || Vz=24V, Pdmax=1W, Izmax=40mA, Zd=25ohm 3) 1N3029B(ZenerDiode/DO-13) SI || Vz=24V, Pdmax=1W, Izmax=40mA, Zd=25ohm 1) 1N3037B(ZenerDiode/DO-13) IR || Vz=51V, Pdmax=1W, Izmax=18mA, Zd=95ohm 1) 1N3037B(ZenerDiode/DO-13) TI || Vz=51V, Pdmax=1W, Izmax=18mA, Zd=95ohm 2) 1N3044B(ZenerDiode/DO-13) CODI || Vz=100V, Pdmax=1W, Izmax=9mA, Zd=350ohm 1) 1N3044B(ZenerDiode/DO-13) TI || Vz=100V, Pdmax=1W, Izmax=9mA, Zd=350ohm 1) 1N3605(Si-planar/DO-35) - NOS || PIV=40V, If=0.1A, Cj=2pF 8) 1N3880(FastRecoveryRectifier/DO-4) Motorola USED D/C=7880 etc ** BIN-727 ** 1) CCZL JAN1N3998A(DO-4) Siemens ** BIN-727 ** 3) 1N4002(Si-diode) GI Au-plated leads 1) 1N4002(Si-diode) GI very-old 170) JANTX1N4150-1(SW-diode) - MIL High-reliablity || Vbr=75Vdc,Vrwm=50Vpeak, If-max=300mAdc, Isurge-max=4A(1us)/0.5A(1s), Tjmax=175℃, trr=4ns, Cj=2.5pF 120) JX1N4376/JANTX1N4376(Ultra-fast SW-diode) - || trr=750ps, Cj=1pF, Vb=20V If=150mA 4) 1N4722/MR1034A(Si-rectifier/) Motorola PIV=400V, Idc=3A 3) 1N5231(diode) Motorola Au-plated leads 12) 25XB60 新電元(Shindengen) 600V-25A Bridge-diode 1) 276-1153 Archer 2A/200V Bridge-diode, original-bagged 20) BZY96C18 - 18V-5W Zener metal-can 18) Dii-6A6 - USED ** BIN-727 ** 1) HB6(/TO-1) HI 30) HV15(diode) Hitachi 30) HV16(diode) Hitachi 2) KS19400L14(DO-5) GE USED D/C=4-65, 4-70, black-coated ** BIN-727 ** 13) (MA10)337507(DO-4) Solitron USED D/C=6575,6337 etc ** BIN-727 ** 3) MA10/337507(DO-4) TSC USED D/C=6249 ** BIN-727 ** 2) MA10/337507(DO-4) TSC USED D/C=6212,6224, gold-plated ** BIN-727 ** 4) NTE 558(Si-FastRecovery diode) NTE original-bag PIV=1500V, If=1A, trr=250ns 1) NTE 5161A(zener diode) NTE Pd=5W, Vz=150V±5% original plastic-bag 1) OA47(Ge-AuBond/DO-7) - PIV=25V, If-peak=100mA, Tj=75℃, Pdmax=80mW, trr=70n 4) SD2427(full-wave-diode/TO-3) - D/C=8848 ** BIN-727 ** 1) SM800(DO-4) Transitron D/C=6742 ** BIN-727 ** 100) OA128() Telefunken PIV=V, If-peak=mA, Tj=℃, Pdmax=mW, trr=n 1) S-750C(diode) Workman 400V/0.75A original-bagged, metal can type 6) SR2037(diode) Motorola Au-plated leads 25) SV2019(diode) Transitron MIL High-reliability 1) CK1266(PD/TO-5like) Raytheon 4) VH447(bridge-diode) VARO ** BIN-727 ** 2) VSK3030T(SchotkeyPower/TO-3) VARO D/C=8412 || PIV=30V, If=30A ** BIN-727 ** -------------------------------------------------------------------------- SCR, TRIAC 1) C100R324(SCR/DO-) GE black-jacket ** BIN-727 ** 1) C-103B(SCR/TO-92) GE 200V/0.8A 10) Q4015B(HEX-Al-bolt triac/) - 400V/15A ** BIN-727 ** 1) Q6040C(TO-3 frange triac/) Transitron 600V/40A ** BIN-727 ** 500) S4020L Teccor(LittleFuse) SCR date=1988.4.23 400V/20A TO220
レギュレータIC (regulator) 147) LAS1512 Lambda date=8110,8118etc 12V-REGULATOR TO3 14) LAS1515 SCC(Lambda) date=9064etc 15V-REGULATOR TO3 145) LAS1524 Lambda date=8042,8114,8110etc 24V-REGULATOR TO3 9) LH0070 NS VoltageRefference 10V±0.02% 3mA, en=20uVpp BIN #401 20) LT117AK/C Linear Technology Variable-output regulator for military 32) LM105H/883B(4.5-40V regulator) NS 8-pin CAN type, D/C=8038, Au-plated leads Vinmax=50V, Pdmax=800mW, Iomax=45mA Tair=125℃ 0) LM126K Regulator ±12V/0.1Adual Vin-Vout>=2V MIL BIN #401 0) LM137 adjustable Regulator -1.2 to -37V K type = 1.5A MIL BIN #401 3) LM309H Regulator +5V/1A BIN #401 5) LM309K (TO-3) ECG Regulator +5V/1A BIN #401 1) 309K(TO-3) ? ** BIN-727 ** 1) LM309K(TO-3) NS ** BIN-727 ** 1) LM317K(TO-3) NS ** BIN-727 ** 1) LM320K-5(TO-3) Signetics USED D/C=7714 gold-plated base ** BIN-727 ** 1) SG320K-5(TO-3) SG USED D/C=7904 gold-plated base ** BIN-727 ** 8) LM320K-12 (TO-3) NS Regulator -12V/1.5A BIN #401 3) LM320T-15 NS Regulator -15V/1.5A BIN #401 7) LM320K-15 (TO-3) NS Regulator -15V/1.5A BIN #401 1) LM320K-15V(TO-3) ? gold-plated base ** BIN-727 ** 1) LM320K-15V(TO-3) ? USED gold-plated base ** BIN-727 ** 1) LM323K-STEEL(TO-3) NS USED D/C=853 gold-plated base ** BIN-727 ** 3) LM137K/883B(TO-3) NS ** BIN-727 ** 10) LM337HVK (TO-3) NS gold-plated, adjustable Regulator -1.2 to -37V, K type = 1.5A BIN #401 1) JM38150/10706BYC=140K-05(TO-3) Fairchild USED (340K-05軍用） D/C=FJ8515 ** BIN-727 ** 9) JM38150/10707BYC=140K-12(TO-3) Fairchild (340K-12軍用） D/C=FJ8208etc ** BIN-727 ** 0) LM340K Regulator +5/+12/+15V/1A BIN #401 1) LM340K-5V(TO-3) Signetics ** BIN-727 ** 27) LM340K-5 (TO-3) NS Aluminum-can+base Regulator +5V/1A 9) LM340K-12 (TO-3) NS Regulator +12V/1A BIN #401 10) LM340K-15 (TO-3) NS Regulator +15V/1A BIN #401 2) LM350K-STEEL(TO-3) NS USED D/C=H8512 ** BIN-727 ** 12) LM7905CT (TO-220) NS BIN #401 60) LT1584CT(1.5-7Vin/7A regulator/TO-220) NS || Low-dropout-type(1.5V〜4.5V/数アンペアの出力に適）Vinmax=7V, Vref=1.25V,Quiescent電流=13mA以下 ： 電流出力範囲10mA 〜7Aの場合、Vin-Vout許容値範囲＝1.5Vmin〜3Vmax 1) NTE 960(5V-regulator/TO-220) NTE Io=1A, Vin=35Vmax, Vout=5V original plastic-bag 1) NTE 966(12V-regulator) NTE Io=1A, Vin=35Vmax, Vo=12V original plastic-bag 1) 7806K/883B(TO-3) Signetics D/C=8608 ** BIN-727 ** 1) 7806/BZAJC(TO-3) Motorola D/C=8319 ** BIN-727 ** 20) UA78H05SC Fairchild date=7929 1) UA7815 - date=8214 Korea 8) 78HV15C(TO-3) Signetics D/C=7841,7918 ** BIN-727 ** 1) 7915KM(TO-3) FUA D/C=7631 ** BIN-727 ** 20) VB408 ST-Micro date=2002.6.13 Morocco TO220 370Vmax/40mA REGULATOR
オペアンプ (OPAMP) 1) 3553AM(TO-3) BurrBrown 15) AD534AD(16pins-CERDIP) AD Operational Amplifier 25) CA3010A(9pins-CAN) RCA Operational Amplifier 25) CA3010A(9pin CAN) RCA 1) CA3028B RCA 0) CLC201AM (TO-8 can) Comlinear-USA Ultra-fast Hybrid-OPAMP 4000V/μs, 95MHz 2) CLC231AI(12pins TO-8 CAN) Comlinear Buffer Amplifier 0) CLC220AM (TO-8 can) Comlinear-USA Ultra-fast Hybrid-OPAMP 7000V/μs, 100MHz 3) HA1-4741-8 (dip14) Harris D/C=8251 Quad OPAMP (Intersil) 1.6V/us, 3.5MHz (BIN #402) 2) HA1-4900-2 (Cerdip14) Harris D/C=7950 Quad comparator (Intersil) (BIN #402) 4) HI1-562A-5 (wide Cerdip) Harris gold-plated D/C=8244 (BIN #402) 1) HI1-5045-2 (Cerdip16) Harris D/C=7604H (BIN #402) 19) HI1-5048-8 (Cerdip16) Harris D/C=8252 (BIN #402) 2) HI1-5048-8 (Cerdip16) Harris D/C=7637D (BIN #402) 4) HI-5044-2 (Cerdip16) JAN Harris D/C=7612J (BIN #402) 1) HI-5046-8 (Cerdip16) Harris D/C=7607 (BIN #402) 7) HI-5046-8 (Cerdip16) Harris D/C=8215 (BIN #402) 4) HI-5046-8 (Cerdip16) Harris D/C=8314 (BIN #402) 9) LF347N (dip14) TI D/C=749BB(1977) Quad-JFET wideband OPAMP 13V/us, 4MHz (BIN #402) 4) LF356 (can) NS JFET wideband OPAMP 0) LF357 (can) NS JFET wideband OPAMP 120) LH0024CH (8pin-can) NS High-slew-rate OPAMP small-signal GBW=70MHz, slew rate =500V/us 8) LH0032CG (TO-8) NS ultra-fast Hybrid-OPAMP 50) LH0032CG (TO-8) NS ultra-fast Hybrid-OPAMP 5) LH0033CG (TO-8) NS ultra-fast Hybrid-buffer f=DC-100MHz SR=1500V/μs Ibias=2.5nA 3) LH0033CG(TO-8) NS D/C=S8620 ultra-fast Hybrid-buffer f=DC-100MHz SR=1500V/μs Ibias=2.5nA 0) LH0063 (TO-8) NS ultra-fast Hybrid-buffer f=DC-200MHz SR=6000V/μs 5) LH2311D (Cerdip16) NS LM111/311-based Dual-comparator Tres=200ns Ibias=6nA (BIN #402) 2) LM12CLK(OPAMP/TO-3) NS D/C=8924 80 Watt Operational Amplifier 8) LM107H (can) NS 内部補償型LM101/301 MIL BIN #401 7) LM107J (dip) NS 内部補償型LM101/301 MIL BIN #401 4) LM108 (can) Intersil precision opamp MIL BIN #401 2) LM124 (dip14) NS Quad - low power 1MHz MIL BIN #401 2) LM143H (can) NS High voltage OPAMP ±4 to ±40V 2.5V/us, 1MHz MIL BIN #401 5) LM193H NS Dual comparator Low-power, Low-ofset MIL BIN #401 3) LM193AH NS Dual comparator - LP LO MIL BIN #401 22) LM211H Voltage comparator BIN #401 1) LM211D (cerdip) Voltage comparator BIN #401 12) LM308N (dip8) NS precision opamp BIN #401 3) LM308AH (can) ? precision opamp BIN #401 6) LM741CN (dip8) NS BIN #401 20) LM6364N (dip8) HighSpeed OPAMP 36V/Ib=5uA 300V/us, 175MHz BIN #401 10) LT1010CH (can) Linear Technology 高速±150mAパワー・バッファ GBW=20MHz S.R.=75V/μS, 75Ωdrive BIN #401 2) LT1028CN (dip8) Linear Technology 7) LT1230CN (dip14) Linear Technology 100MHz電流帰還型アンプ, GBW=100MHz, S.R.=1000V/μs, Zin=25MΩ/3pF BIN #401 0) LT1364CN (dip8) Linear Technology 1) NTE 928M(DIP-8) NTE LowPower dual-OPAMP original plastic-bag 1) NTE 941M(DIP-8) NTE freq-compensated OPAMP original plastic-bag 4) OP07AJ (can) PMI BIN #401 24) OP11EY (dip14) PMI Quad - 741 3MHz, 1V/us BIN #401 20) OP14AZ (dip8) PMI Dual - low noise, low drift 1.3MHz, 0.5V/us BIN #401 73) OP17FZ(dip8) PMI Fast OPAMP 10) OP19AJ (can) PMI BIN #401 22) OP27 (dip8) PMI BIN #401 17) OP200AZ (dip8) PMI Dual - low offset 75uV BIN #401 9) OP221EZ (dip8) PMI Dual - low drift 0.75uV/C BIN #401 10) OP227GY (dip14) PMI Dual - LN LO: 3.9nV/rh 1uV/C BIN #401 5) OP282GP (dip8) PMI Dual - JFET low power 4MHz, 9V/us BIN #401 0) OP627 (dip8) BB wideband OPAMP 3) OP637 (dip8) BB wideband OPAMP 5) 5930-250 - OPAMP Wideband Amplifier 2) 3553AM (TO-3) BB ultra-wideband Hybrid-buffer 4) 3554AM (TO-3) BB ultra-wideband Hybrid-OPAMP 5) OPA 600AM (TO-3) BB ultra-wideband Hybrid-OPAMP
Various IC's 1) # 712TN Teledyne 9pins(CAN) 3255327-1A-26V, D/C=, Au-plated leads 4) # 4203J BurrBrown CAN 2) # 8664 FSL 8pins(CAN) D/C=7204, Au-plated leads,ORIGINAL-BASE 8) 9014DC (Cerdip16) Fairchild (BIN #402) 31) 9300PC (dip16) - (BIN #402) 1) 9300-51X (Cerdip16) - gold-plated D/C=7235 (BIN #402) 4) 93L0059X (Cerdip16) - gold-plated (BIN #402) 31) 9614DC (Cerdip14) Fairchild (BIN #402) 18) 9614DC (Cerdip14) Fairchild (BIN #402) 10) 9614PC (dip14) Fairchild (BIN #402) 16) 9614DC/961459X (Cerdip14) Fairchild D/C=7306 (BIN #402) 13) AD585AQ (Cerdip14) Analog Devices D/C=8540 S&H amplifier ApertureJItter=500ps (BIN #402) 2) AM2716DC AMD ROM (BIN #402) 20) AM3705D (Cerdip16) - (BIN #402) 1) AM3705D (Cerdip16) - gold-plated (BIN #402) 10) AM29826DM-B (Cerdip24) - (BIN #402) 17) AM29845DM-B (Cerdip24) - (BIN #402) 11) CD4013BE (dip14) Harris (BIN #402) 5) CD4044BD (Cerdip14) RCA white-ceramic (BIN #402) 8) CD4044BE (dip14) RCA (BIN #402) 14) CD4044CN (dip14) NS (BIN #402) 9) MC14044B (dip14) Motorola (BIN #402) 19) HEF4044BP Harris (BIN #402) 7) CD4048BD (Cerdip14) RCA white-ceramic (BIN #402) 26) CD4048BE (dip14) RCA (BIN #402) 16) 4068DC (Cerdip14) Fairchild D/C=7649 (BIN #402) 6) CD4068BE (dip14) Motorola D/C=8032, 8119 (BIN #402) 2) MC14068B-CP (dip14) Motorola D/C=7901 (BIN #402) 4) CD4068BE (dip14) RCA D/C=941 (1979) (BIN #402) 8) CD4069DMQB (Cerdip14) Fairchild D/C=7627 (BIN #402) 1) CD4069DM (dip14) Fairchild D/C=7642 (BIN #402) 14) CD4069PC (dip14) Fairchild D/C=7630, 7632 (BIN #402) 8) CD4069CN (dip14) NS (BIN #402) 21) MC14069UB (dip14) Motorola D/C=7914 (BIN #402) 9) CD4069BE (dip14) RCA (BIN #402) 13) CD4098BE (dip14) RCA D/C=D445 (1974) (BIN #402) 4) CY7C403-15PC (dip16) Cyrix (BIN #402) 1) DM7800 NS 10pins(CAN) D/C=6941, Au-plated leads 53) DM7820AJ/883B (Cerdip14) NS D/C=416 (1974) (BIN #402) 18) DS3632N (dip8) NS D/C=P8730 (BIN #402) 9) DS7820AJ (Cerdip14) NS D/C=R8504 (BIN #402) 15) DS75115N (dip16) NS D/C=P8302 (BIN #402) 3) DS8820N (dip14) NS D/C=839 (1978) (BIN #402) 3) E13006(TO-220) Motorola D/C=426J ** BIN-727 ** 3) F3-58 CHOPPER Bristol gold-plated 3x2side-leads (BIN #402) 4) HL23463 Fairchild 8pins(CAN) D/C=7312, Au-plated leads,ORIGINAL-BASE 9) HS23462 Fairchild 8pins(CAN) D/C=7312, Au-plated leads 3) JM38510/D5352BEB S (BIN #402) 1) LM309H Motorola 8pins(CAN) D/C=L8213, Au-plated leads,ORIGINAL-BASE 1) LM723H NS 10pins(CAN) D/C=201, Au-plated leads 1) MC1461R Motorola TO-66 D/C=6945 Au-plated frange, original-bag 1) MC1550G Motorola 10pins(CAN) D/C=7135, Au-plated leads 1) MC1563R Motorola TO-66 D/C=7050 Au-plated frange, original-bag 9) MC1569R((9pin/TO-66) IC Motorola D/C=L8023. Gold-plated base, made in Malaysia || ** BIN-727 ** 4) MHQ2907 (dip14) Motorola D/C=939(1979) (BIN #402) 1) ML1558 8pins(CAN) D/C=7146, Au-plated leads 1) ML1558T 8pins(CAN) D/C=7325, Au-plated leads 3) RM709T2 Raytheon 8pins(CAN) D/C=7247, Au-plated leads,ORIGINAL-BASE 2) RM7035 Raytheon 8pins(CAN) D/C=R7133, Au-plated leads 1) SC854G Motorola 9pins(CAN) D/C=812 2) SD10135 NS 10pins(CAN) D/C=7141, Au-plated leads 0) SN55472J (dip8) TI D/C=8105 (BIN #402) 8) SNJ554715JG (dip8) TI D/C=8416 (BIN #402) 10) TZB36-10 (DIP) - delay (BIN #402) 4) TZB72-10 (DIP) - delay (BIN #402) 1) TZB90-10 (DIP) - delay (BIN #402) 1) DM54LS02J (dip14) NS D/C=R102 4) SNJ54ALS00 (cerdip14) Motorola D/C=KK8436 2) DM74LS02N (dip14) NS D/C=B8742 24) SN74HC02 (dip14) TI D/C= 14) SNJ54ALS03BJ (dip14) TI D/C=C8617 3) DM74AS04N (dip14) NS D/C=M8830 23) CD54HCT04F RCA D/C= 13) SNJ54ALS09J (dip14) TI D/C=C8814 4) SN54ALS10J (dip14) TI D/C=8340BG 5) 74LS20 - D/C= 12) SNJ54LS32J (dip14) TI D/C=8514A(1pc), 8829W(11pcs) 1) DM54LS74AJ (dip14) NS D/C= 2) DM74ALS74 (dip14) NS D/C=P8830 1) DM54LS74AJ (dip14) NS D/C= 19) CD74HCT74E (dip14) RCA D/C=H601 7) DM54LS78J NS D/C=809 100) MM/MC74HC163 (dip16) NS D/C=P9142 10) SN74ALS169BN (dip) TI D/C=8723BN 25) SNJ54175 (dip16) TI D/C=B8837A 24) 54FCT193DB (dip16) IDT D/C=C8808BA 5) 54F244DMQB (dip20) Fairchild D/C=8629 22) 54FCT245DB (dip20) IDT D/C= 6) 54FCT374DB (dip20) IDT D/C=C8904BA 12) CD54HCT273F RCA D/C=8549 14) SNJ54LS137J (dip16) TI D/C=A8822 4) SNJ54LS163AJ (dip16) TI D/C=B8431 5) SNJ54LS174J (dip16) TI D/C=8101(2pcs), B8450(3pcs) 4) SN54LS221J (dip16) TI D/C=T8048 4) DM54LS374J/883B NS D/C=SR8221 3) SNJ54LS541J TI D/C=8824 15) SN74LS646NT (dip24) TI D/C=8723XS 12) SN74ALS1005N (dip14) TI D/C=S8808AF 7) AM26LS33PC (dip16) LT D/C=8430DPP 16) DS88L12N (dip14) NS D/C= 1) NE5532 (dip8) Signetics D/C=9018VG 1) NE555N (dip8) ST D/C= 1) LM556J (dip14) NS D/C=933 4) LM556J/883B (dip14) NS D/C=R8312 3) UA109KMQB(TO-3) Fairchild D/C=8529A ** BIN-727 ** 1) UA78HGASC(TO-3) Fairchild D/C=8414 ** BIN-727 ** 16) VQ1001P (Cerdip14) S D/C=H8818Q gold-plated Quad-Nch eMOSFET (Intersil) Quad-Nch eMOSFET (Intersil) 30V/0.83A トランス 0) 6459 Chicago Trans. used ￥17,000 sealed-type 130x120x155mmH 155VA/耐圧3,000V primary: 105-110-115-120-125V/50-60Hz secondary: 625V-CT-625V DC 240mA .......
Triplett built an excellent portable transistor analyzer 3490-A to enable us to measure transistor DC parameters appeared in manufactures data sheets : can be manually used as a curve tracer.....
